Misumi PGPU, Circuit Board Guide Pin
The GPPU series of positioning pins from Misumi are highest quality and most accurate spring-positioning pins that we carry. We use these in all production test fixture designs.

Features:

Tip Style: Umbrella
Tip Diameter: 5mm
Tip Length: 24mm

Mounting Hole Diameter: 5mm
13.46 13.46 USD

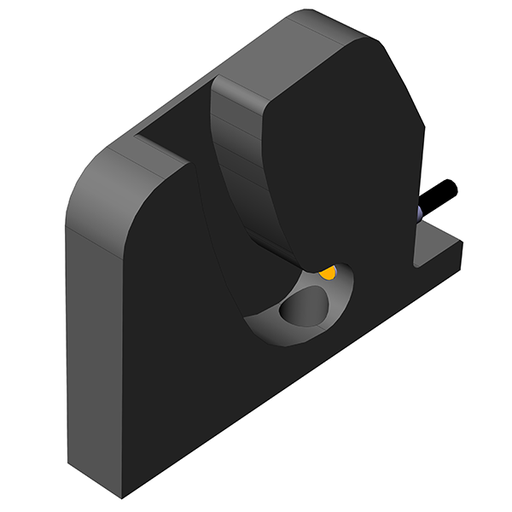

Fixture Switch, Inductive, MA3xxx Series
Elevate your fixture base functionality with our Inductive Fixture Switch, specifically designed for Ingun MA3xxx series fixture bases. This simple yet effective inductive switch is engineered to detect the closure of the pressure frame, ensuring precision and reliability in your operations.

Includes:
- IFM IY5052 Inductive Sensor
- Front Pressure Frame Bracket with threaded hole for sensor installation

Electrical Characteristics:
- Input voltage: 10-30VDC
- Output: PNP, Normally Closed

Note: This sensor follows DIN wiring specifications, not SAE. The sensor should be wired as follows:

Brown: Vsupply
Black: Vswitch
Blue: GND
910.78 910.78 USD

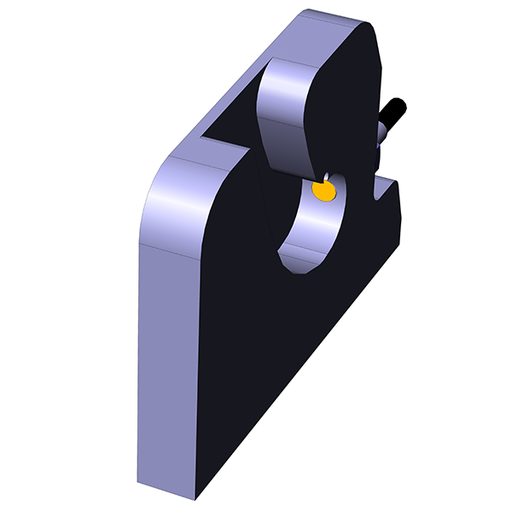

Fixture Switch, Inductive, MA2xxx Series
Elevate your fixture base functionality with our Inductive Fixture Switch, specifically designed for Ingun MA2xxx series fixture bases. This simple yet effective inductive switch is engineered to detect the closure of the pressure frame, ensuring precision and reliability in your operations.

Includes:
- IFM IY5052 Inductive Sensor
- Front Pressure Frame Bracket with threaded hole for sensor installation

Electrical Characteristics:
- Input voltage: 10-30VDC
- Output: PNP, Normally Closed

Note: This sensor follows DIN wiring specifications, not SAE. The sensor should be wired as follows:

Brown: Vsupply
Black: Vswitch
Blue: GND
375.99 375.99 USD

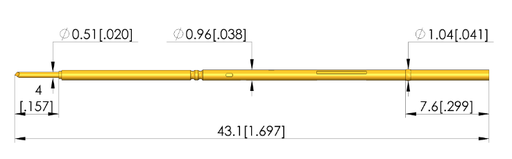

Ingun KS-550 WL Wireless Receptacle
The KS-550 series, part of the KS-WL product group, offers an advanced wireless receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections.

Key Specifications:

Connection Type: Wireless

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter:
- Press-Fit: 1mm
- Collar: 0.95mm

Current Rating: 2A continuous, <20mOhm Resistance

Bottom Probe Spring Force: 1N

Material: 3CuBe with Gold Plating

This product is specifically crafted for integration with a Test Point Carrier Board—a custom Printed Circuit Board that facilitates the connection between the spring-probe end of the receptacle and the targeted connectors or instrumentation. For optimal performance, we recommend implementing a footprint with a 1mm pad on both the top and bottom layers of the PCB, centered with a 0.2mm via. This configuration ensures convenient access to the test point networks even when the fixture is fully assembled, significantly simplifying the debugging process.
4.81 4.8100000000000005 USD
Ingun KS-100 WL Wireless Receptacle
The KS-100 series, part of the KS-WL product group, offers an advanced wireless receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections.

Key Specifications:

Connection Type: Wireless

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter:
- Press-Fit: 1.75mm
- Collar: 1.7mm

Current Rating: 2A continuous, <20mOhm Resistance

Bottom Probe Spring Force: 1N

Material: 3CuBe with Gold Plating

This product is specifically crafted for integration with a Test Point Carrier Board—a custom Printed Circuit Board that facilitates the connection between the spring-probe end of the receptacle and the targeted connectors or instrumentation. For optimal performance, we recommend implementing a footprint with a 1mm pad on both the top and bottom layers of the PCB, centered with a 0.2mm via. This configuration ensures convenient access to the test point networks even when the fixture is fully assembled, significantly simplifying the debugging process.
3.03 3.0300000000000002 USD
Ingun KS-075 WL Wireless Receptacle
The KS-075 series, part of the KS-WL product group, offers an advanced wireless receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections.

Key Specifications:

Connection Type: Wireless

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter:
- Press-Fit: 1.4mm
- Collar: 1.35mm

Current Rating: 2A continuous, <20mOhm Resistance

Bottom Probe Spring Force: 1N

Material: 3CuBe with Gold Plating

This product is specifically crafted for integration with a Test Point Carrier Board—a custom Printed Circuit Board that facilitates the connection between the spring-probe end of the receptacle and the targeted connectors or instrumentation. For optimal performance, we recommend implementing a footprint with a 1mm pad on both the top and bottom layers of the PCB, centered with a 0.2mm via. This configuration ensures convenient access to the test point networks even when the fixture is fully assembled, significantly simplifying the debugging process.
4.42 4.42 USD

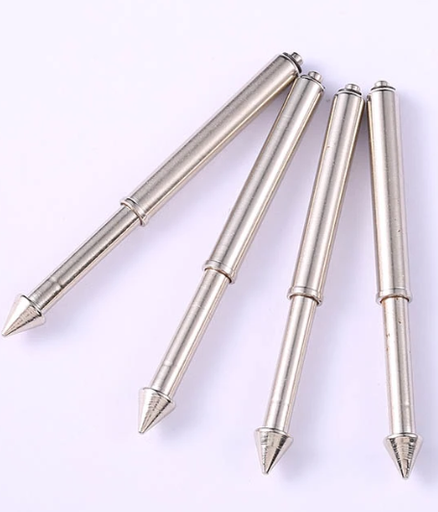

Guide Pin, GP-2UL, Umbrella Tip, Long
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: Umbrella
Tip Diameter: 6mm
Tip Length: 27mm

Mounting Hole Diameter: 5mm
4.00 4.0 USD
Guide Pin, GP-2U, Umbrella Tip
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: Umbrella
Tip Diameter: 6mm
Tip Length: 18mm

Mounting Hole Diameter: 5mm
3.00 3.0 USD

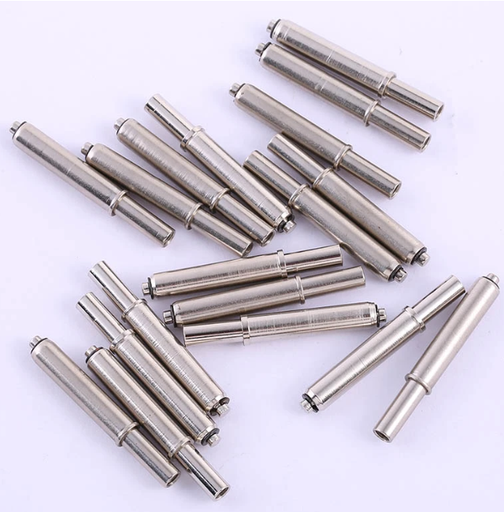

Guide Pin, GP-2TL, Threaded Tip, Long
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: M3 Threaded
Tip Diameter: 5mm
Tip Length: 10mm

Mounting Hole Diameter: 5mm
2.00 2.0 USD

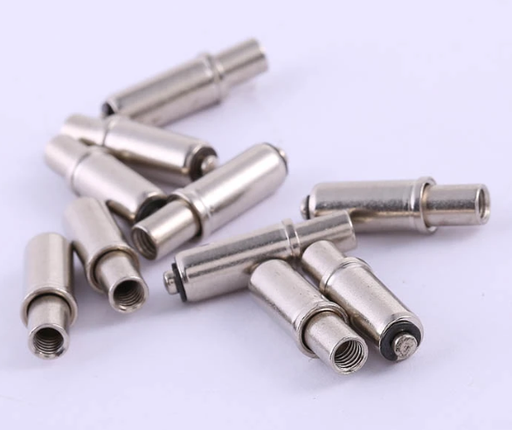

Guide Pin, GP-2T, Threaded Tip
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: M3 Thread
Tip Diameter: 5mm
Tip Length: 5.5mm

Mounting Hole Diameter: 5mm
2.00 2.0 USD

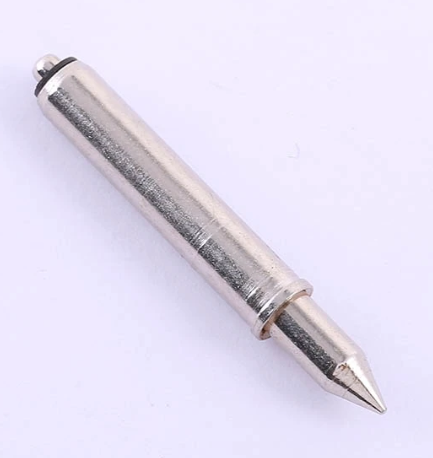

Guide Pin, GP-2S, Pointed Tip
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: Spear
Tip Diameter: 5mm

Mounting Hole Diameter: 5mm
2.00 2.0 USD

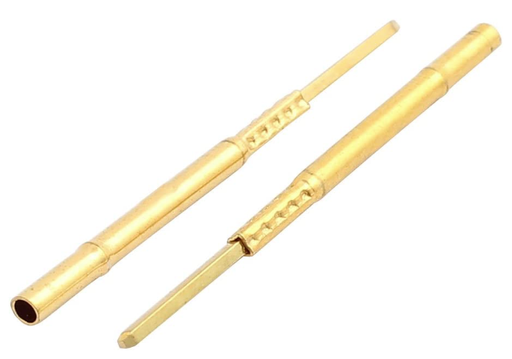

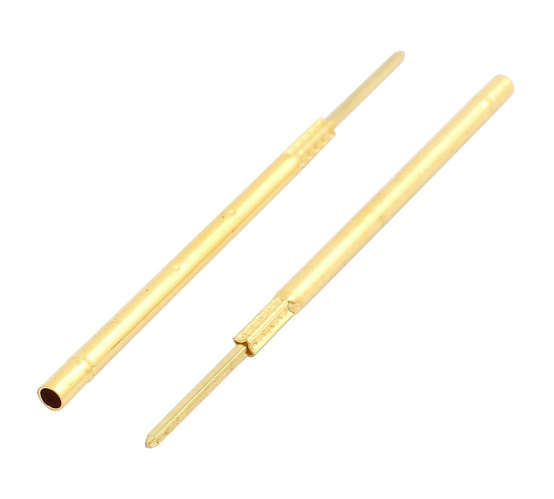

Generic R75-3W Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Key Specifications
Compatible Test Probes: P75 Series
Connection Type: Wire-wrap
Collar Height: 5mm
Minimum Center-to-Center Pitch: 1.91mm (75mil)
Mounting Hole Diameter: 1.4mm
Current Rating: 2A continuous
1.00 1.0 USD
Generic R75-3S Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P75 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 5mm

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.4mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R75-2W Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P75 Series

Key Specifications:

Connection Type: Wire-wrap

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.4mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R75-2S Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P75 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.4mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R50-3C Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Crimp

Collar Height: 5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R50-2W7 Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Wired

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R50-2S Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R50-2C Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Crimp

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD
Generic R100-4W Receptacle
The R100 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P100 Series

Key Specifications:

Connection Type: Wire-wrap

Collar Height: 7.5mm

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter: 1.75mm

Current Rating: 2A continuous
1.00 1.0 USD
