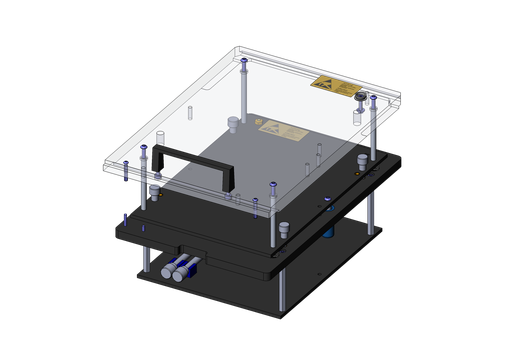

ESD Ingun MA11 Cartridge. Maximum DUT size of 150 x 240mm. Includes a probe plate with an ESD dissipative coating for testing sensitive devices.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 150 x 240mm
Outer Dimensions: 210 x 307 x 197mm
Weight: 2.75kg

A stock test fixture base from Ingun. Cartridge sold separately.

The RE75 series, part of the Centalic RE product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PE-75 Series

Key Specifications:

Connection Type: Solder Cup
Minimum Center-to-Center Pitch: 1.9mm (75mil)
Mounting Hole Diameter: 1.35mm
Current Rating: 3A continuous, <40mOhm Resistance
Material: 3CuBe with Gold Plating

The PQ50 series of probes is used in all of our DEV260 Pro fixtures.

Compatible Receptacles: Centalic PQ50 Series

Tip Type: Serrated
Minimum Center-to-Center Pitch: 1.27mm (50mil)
Current Rating: 3A continuous, <60mOhm Resistance
Full Stroke: 6.35mm
Rated Stroke: 4.30mm
Spring Force: 150gf (5.5oz)
Material: 3CuBe with Gold Plating

A stock test fixture base manufactured and assembled by FixturFab.

A stock test fixture base manufactured by FixturFab.

The RQ50 series, part of the Centalic RQ product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PQ-50 Series

Key Specifications:
Connection Type: Wire-Wrap
Minimum Center-to-Center Pitch: 1.27mm (50mil)
Mounting Hole Diameter: 1mm
Current Rating: 3A continuous, <60mOhm Resistance
Material: 3CuBe with Gold Plating

The RQ75 series, part of the Centalic RQ product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PQ-75 Series

Key Specifications:
Connection Type: Wire-Wrap
Minimum Center-to-Center Pitch: 1.91mm (75mil)
Mounting Hole Diameter: 1.35mm
Current Rating: 3A continuous, <40mOhm Resistance
Material: 3CuBe with Gold Plating

The RQ100 series, part of the Centalic RQ product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PQ-100 Series

Key Specifications:

Connection Type: Wire-Wrap
Minimum Center-to-Center Pitch: 2.54mm (100mil)
Mounting Hole Diameter: 1.75mm
Current Rating: 3A continuous, <30mOhm Resistance
Material: 3CuBe with Gold Plating

The PE75 series of probes is used in all of our DEV260 Pro fixtures.

Compatible Receptacles: Centalic PE75 Series

Tip Type: Cup
Minimum Center-to-Center Pitch: 1.9mm (75mil)
Current Rating: 3A continuous, <40mOhm Resistance
Full Stroke: 6.35mm
Rated Stroke: 4.30mm
Spring Force: 200gf (7.2oz)
Material: 3CuBe with Gold Plating

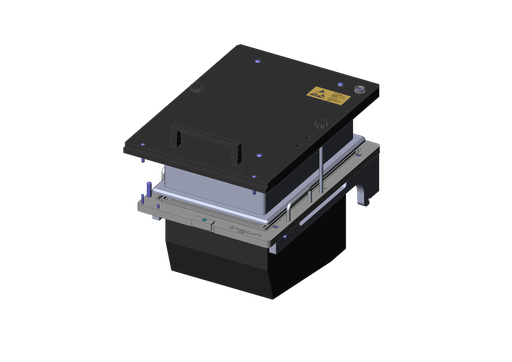

RF Shielded Ingun MA11 Cartridge for reliable, interference-free radio frequency contacting and measurement of radio frequency signals. Maximum DUT size of 110 x 160mm. Outstanding shielding attenuation >60dB in the frequency range up to 6GHz.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 110 x 160mm
Outer Dimensions: 210 x 313 x 255mm
Weight: 5.97kg

A stock test fixture base manufactured by FixturFab. Cartridge sold separately.

A stock test fixture base manufactured by FixturFab. Cartridge sold separately.

A stock test fixture cartridge manufactured by FixturFab. Base sold separately.

Dev Pro Cartridge with a G10 Probe Plate. Maximum DUT size of 170 x 145mm. Rated for 10k cycles. Base sold separately.

Top Probing: Yes
Side Probing: No*
Pressure Pin Length: 35mm
Free Space Above DUT: 33mm
Useable Area (WxD): 170 x 145mm
Outer Dimensions: 187 x 157 x 63mm
Weight: 0.7kg

A stock test fixture cartridge manufactured by FixturFab. Base sold separately.

A stock test fixture cartridge manufactured by FixturFab. Base sold separately.

A stock test fixture kit manufactured by FixturFab.

ESD Ingun MA11 Cartridge. Maximum DUT size of 285 x 240mm. Includes a probe plate with an ESD dissipative coating for testing sensitive devices.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 285 x 240mm
Outer Dimensions: 305 x 307 x 197mm
Weight: 4.8kg

Standard Ingun MA360 Cartridge. Maximum DUT size of 160 x 100mm.

Top Probing: Yes
Side Probing: No
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 160 x 100mm
Outer Dimensions: 206 x 120 x 162mm
Weight: 1.1kg
