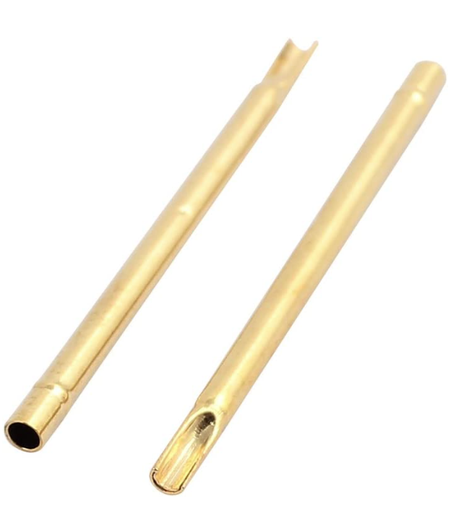

The R100 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P100 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter: 1.75mm

Current Rating: 2A continuous

The RQ50 series, part of the Centalic RQ product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PQ-50 Series

Key Specifications:

Connection Type: Solder Cup

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 3A continuous, <60mOhm Resistance

Material: 3CuBe with Gold Plating

The RQ75 series, part of the Centalic RQ product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PQ-75 Series

Key Specifications:

Connection Type: Solder Cup

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.35mm

Current Rating: 3A continuous, <40mOhm Resistance

Material: 3CuBe with Gold Plating

The RQ100 series, part of the Centalic RQ product group, offers an robust receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections. This series of receptacles is used in all of our DEV260 Pro fixtures.

Compatible Test Probes: Centalic PQ-100 Series

Key Specifications:

Connection Type: Solder Cup

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter: 1.75mm

Current Rating: 3A continuous, <30mOhm Resistance

Material: 3CuBe with Gold Plating
