Misumi PGPU, Circuit Board Guide Pin
The GPPU series of positioning pins from Misumi are highest quality and most accurate spring-positioning pins that we carry. We use these in all production test fixture designs.

Features:

Tip Style: Umbrella
Tip Diameter: 5mm
Tip Length: 24mm

Mounting Hole Diameter: 5mm
13.49 13.49 USD
Ingun KS-550 WL Wireless Receptacle
The KS-550 series, part of the KS-WL product group, offers an advanced wireless receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections.

Key Specifications:

Connection Type: Wireless

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter:
- Press-Fit: 1mm
- Collar: 0.95mm

Current Rating: 2A continuous, <20mOhm Resistance

Bottom Probe Spring Force: 1N

Material: 3CuBe with Gold Plating

This product is specifically crafted for integration with a Test Point Carrier Board—a custom Printed Circuit Board that facilitates the connection between the spring-probe end of the receptacle and the targeted connectors or instrumentation. For optimal performance, we recommend implementing a footprint with a 1mm pad on both the top and bottom layers of the PCB, centered with a 0.2mm via. This configuration ensures convenient access to the test point networks even when the fixture is fully assembled, significantly simplifying the debugging process.
4.81 4.8100000000000005 USD
Ingun KS-100 WL Wireless Receptacle
The KS-100 series, part of the KS-WL product group, offers an advanced wireless receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections.

Key Specifications:

Connection Type: Wireless

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter:
- Press-Fit: 1.75mm
- Collar: 1.7mm

Current Rating: 2A continuous, <20mOhm Resistance

Bottom Probe Spring Force: 1N

Material: 3CuBe with Gold Plating

This product is specifically crafted for integration with a Test Point Carrier Board—a custom Printed Circuit Board that facilitates the connection between the spring-probe end of the receptacle and the targeted connectors or instrumentation. For optimal performance, we recommend implementing a footprint with a 1mm pad on both the top and bottom layers of the PCB, centered with a 0.2mm via. This configuration ensures convenient access to the test point networks even when the fixture is fully assembled, significantly simplifying the debugging process.
3.05 3.0500000000000003 USD
Ingun KS-075 WL Wireless Receptacle
The KS-075 series, part of the KS-WL product group, offers an advanced wireless receptacle solution designed for reliability and performance. These receptacles feature a press-in version with a gold surface area, ensuring high-quality electrical connections.

Key Specifications:

Connection Type: Wireless

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter:
- Press-Fit: 1.4mm
- Collar: 1.35mm

Current Rating: 2A continuous, <20mOhm Resistance

Bottom Probe Spring Force: 1N

Material: 3CuBe with Gold Plating

This product is specifically crafted for integration with a Test Point Carrier Board—a custom Printed Circuit Board that facilitates the connection between the spring-probe end of the receptacle and the targeted connectors or instrumentation. For optimal performance, we recommend implementing a footprint with a 1mm pad on both the top and bottom layers of the PCB, centered with a 0.2mm via. This configuration ensures convenient access to the test point networks even when the fixture is fully assembled, significantly simplifying the debugging process.
4.42 4.42 USD

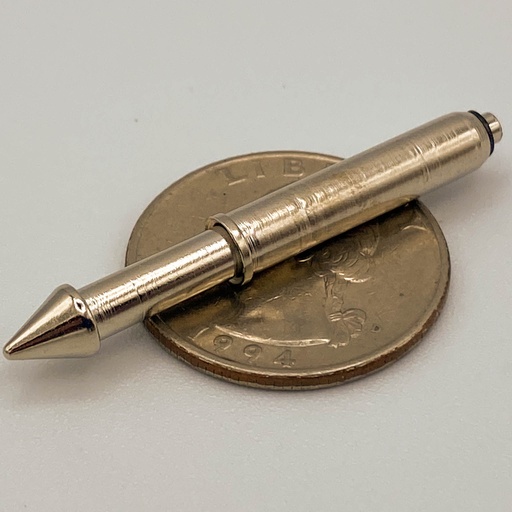

Guide Pin, GP-2UL, Umbrella Tip, Long
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: Umbrella
Tip Diameter: 6mm
Tip Length: 27mm

Mounting Hole Diameter: 5mm
4.00 4.0 USD
Guide Pin, GP-2U, Umbrella Tip
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: Umbrella
Tip Diameter: 6mm
Tip Length: 18mm

Mounting Hole Diameter: 5mm
3.00 3.0 USD
Guide Pin, GP-2TL, Threaded Tip, Long
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: M3 Threaded
Tip Diameter: 5mm
Tip Length: 10mm

Mounting Hole Diameter: 5mm
2.00 2.0 USD
Guide Pin, GP-2T, Threaded Tip
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: M3 Thread
Tip Diameter: 5mm
Tip Length: 5.5mm

Mounting Hole Diameter: 5mm
2.00 2.0 USD
Guide Pin, GP-2S, Pointed Tip
The GP-2 series of positioning pins are great for general purpose positioning of a circuit board within a test fixture. This series is commonly used in our development series of fixtures.

Features:

Tip Style: Spear
Tip Diameter: 5mm

Mounting Hole Diameter: 5mm
2.00 2.0 USD
Generic R75-3W Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Key Specifications
Compatible Test Probes: P75 Series
Connection Type: Wire-wrap
Collar Height: 5mm
Minimum Center-to-Center Pitch: 1.91mm (75mil)
Mounting Hole Diameter: 1.4mm
Current Rating: 2A continuous
1.00 1.0 USD

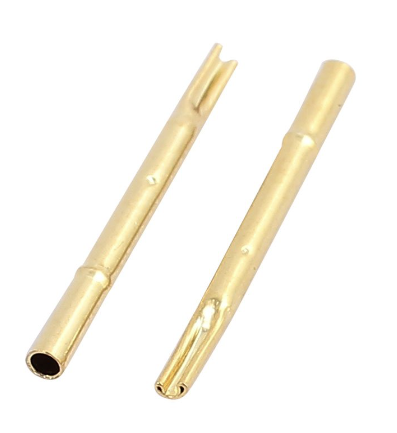

Generic R75-3S Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P75 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 5mm

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.4mm

Current Rating: 2A continuous
1.00 1.0 USD

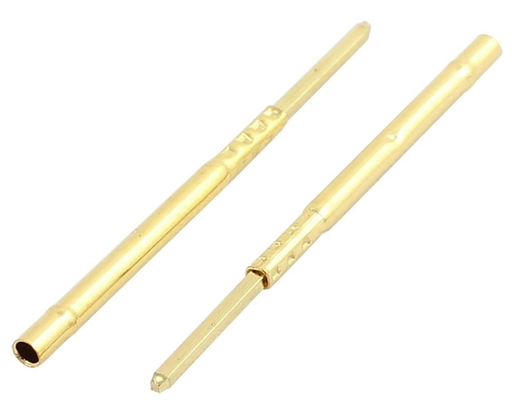

Generic R75-2W Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P75 Series

Key Specifications:

Connection Type: Wire-wrap

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.4mm

Current Rating: 2A continuous
1.00 1.0 USD

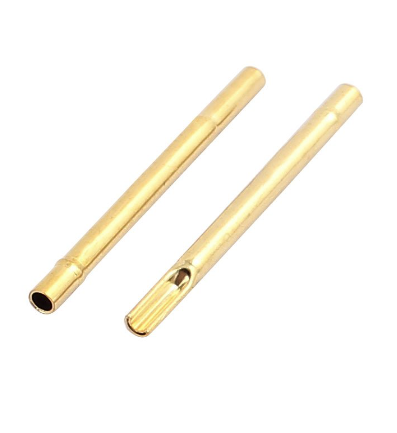

Generic R75-2S Receptacle
The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P75 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.91mm (75mil)

Mounting Hole Diameter: 1.4mm

Current Rating: 2A continuous
1.00 1.0 USD

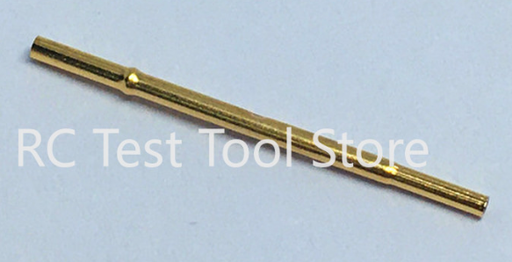

Generic R50-3C Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Crimp

Collar Height: 5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD

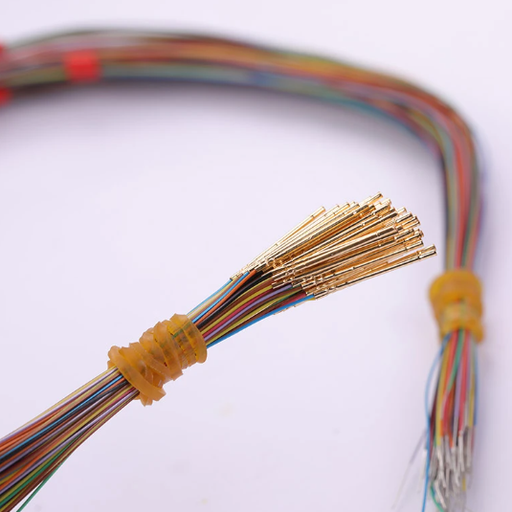

Generic R50-2W7 Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Wired

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD

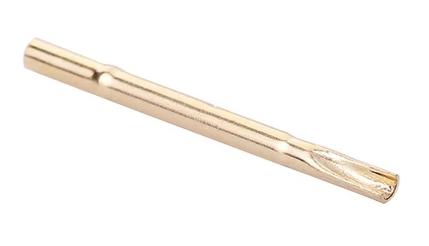

Generic R50-2S Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Solder Cup

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD

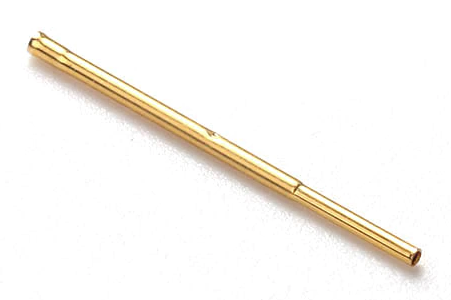

Generic R50-2C Receptacle
The R50 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P50 Series

Key Specifications:

Connection Type: Crimp

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 1.27mm (50mil)

Mounting Hole Diameter: 1mm

Current Rating: 2A continuous
1.00 1.0 USD

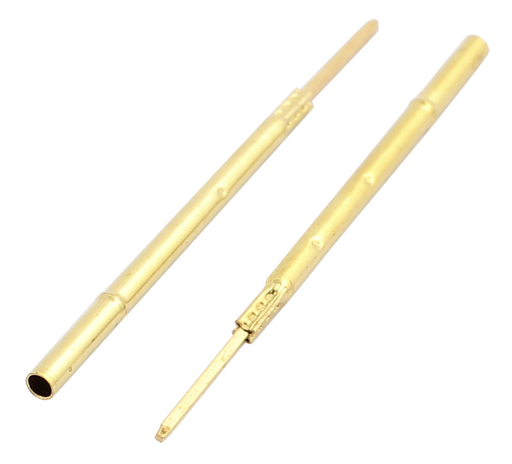

Generic R100-4W Receptacle
The R100 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P100 Series

Key Specifications:

Connection Type: Wire-wrap

Collar Height: 7.5mm

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter: 1.75mm

Current Rating: 2A continuous
1.00 1.0 USD

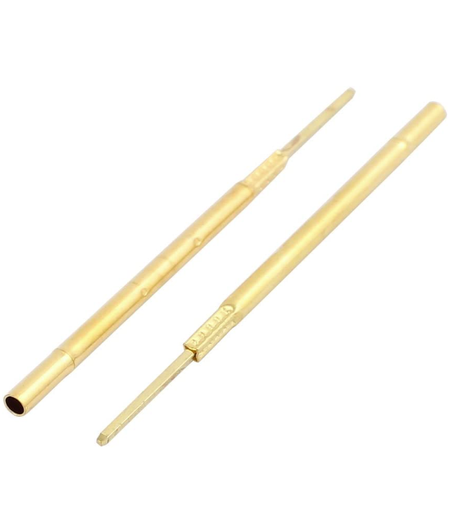

Generic R100-3W Receptacle
The R100 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P100 Series

Key Specifications:

Connection Type: Wire-wrap

Collar Height: 5mm

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter: 1.75mm

Current Rating: 2A continuous
1.00 1.0 USD

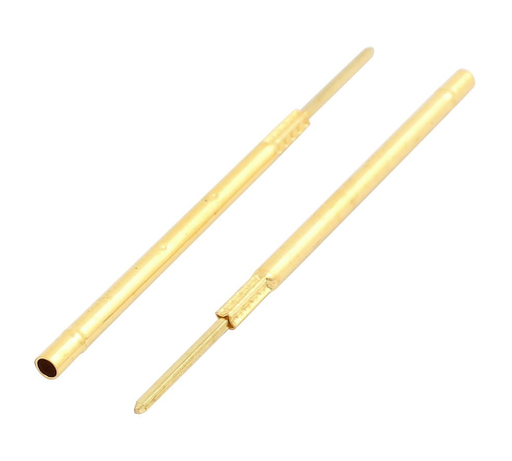

Generic R100-2W Receptacle
The R100 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.

Compatible Test Probes: P100 Series

Key Specifications:

Connection Type: Wire-Wrap

Collar Height: 2.5mm

Minimum Center-to-Center Pitch: 2.54mm (100mil)

Mounting Hole Diameter: 1.75mm

Current Rating: 2A continuous
1.00 1.0 USD
