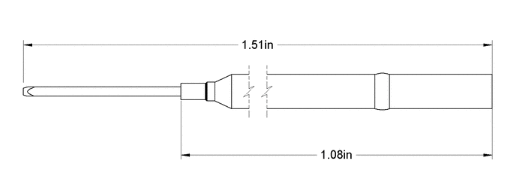

The QA Technology 125-SDN250W is a socket from the 125-25 series — 0.125 in (3.18 mm) centres, 0.250 in (6.35 mm) full stroke — built for loaded-board and high-current testing. It is pressed into the fixture's probe plate and the spring probe seats in it, so probe changes need no rework of the harness.
It is the wire-wrap counterpart to the solder-cup 125-SDN250S on the same N (nickel silver, no finish) tube: instead of a cup, it ends in a square wire-wrap post in phosphor bronze, gold plated over nickel. Specify it when the fixture is wired on a wrap gun rather than soldered, which makes re-terminating a channel a great deal quicker.
QA 125-25 series: 0.125 in (3.18 mm) centres, 0.250 in (6.35 mm) full stroke
Tube N — nickel silver, no finish
Termination W — square wire-wrap pin, phosphor bronze, gold plated over nickel
Mounting hole 0.0940 – 0.0960 in (2.390 – 2.440 mm) in AT7000/G10/FR4; drill 2.4 mm or #41
Studio records a 2.4 mm mounting hole, 2.45 mm press-fit hole and 7.62 mm collar height
Paired in Studio with the QA 125-PRG2509S, 125-PRH2509S and 125-PRG2541S probes
