Ingun SKS-215 002 180 A 0802 MF Switching Probe, Flat Tip, 100mil

The INGUN SKS-215 002 180 A 0802 MF (INGUN item SKS-215-0226) is a switching probe, used for presence checking rather than electrical measurement. As the fixture closes, the plunger is pushed back and an internal contact changes state at a defined point in the travel, so the tester can confirm that a board — or a component, connector or heatsink on it — really is present and correctly seated before the test sequence starts.

The 002 head is a flat plastic face 1.8 mm across with the contact surface insulated, so the probe registers presence without making an electrical connection to whatever it touches. It screws into a KS-215 M-F receptacle with an M1.6 thread and its installation height is adjustable, which lets the switching point be tuned to the fixture stack-up on assembly.

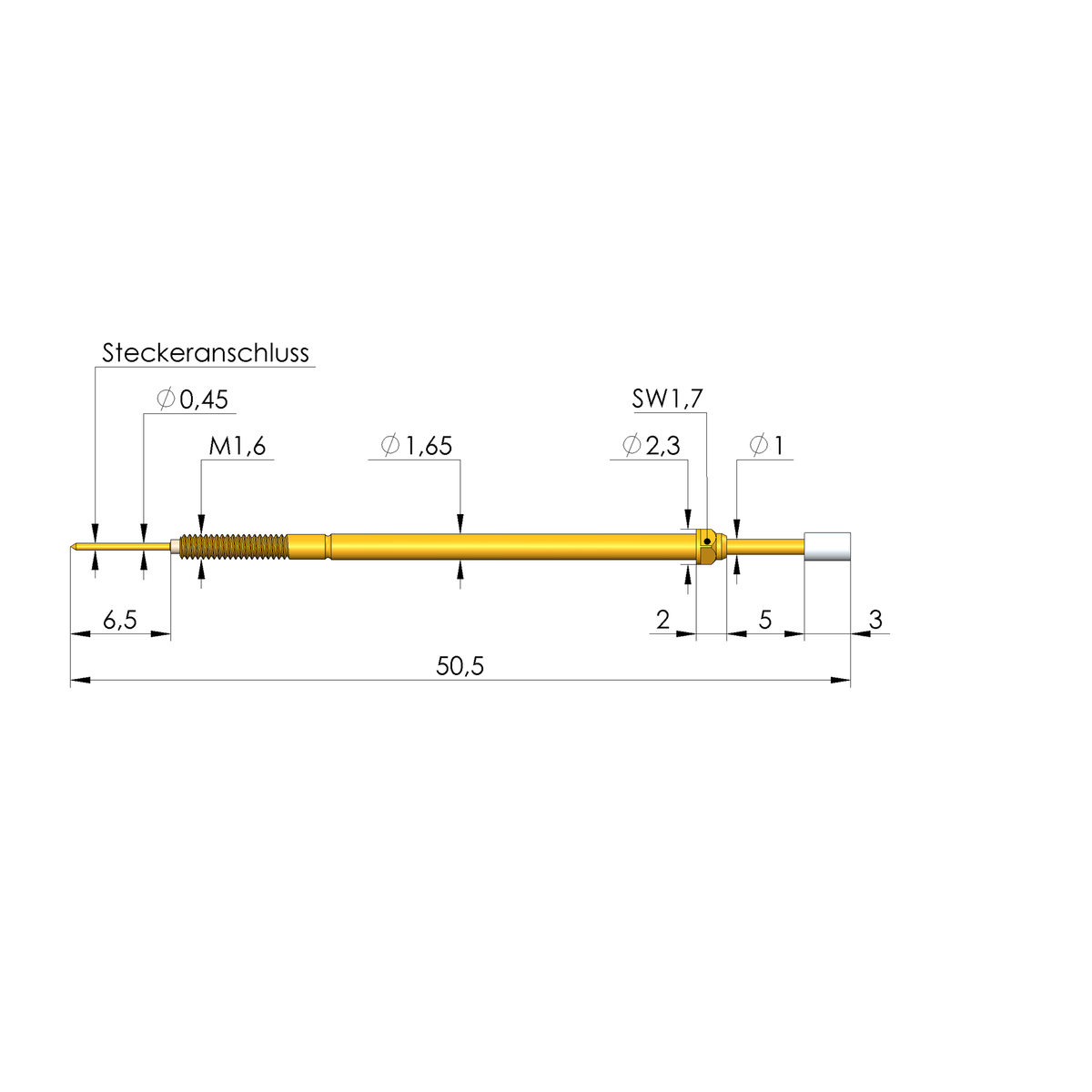

• Tip style 002, flat, contact surface insulated; plastic tip with gold surface
• Tip diameter 1.8 mm (.07 in), barrel diameter 1.65 mm (.064 in)
• Grid 2.54 mm (100 mil); total length 50.5 mm (1.98 in)
• Working stroke 4 mm, maximum stroke 5 mm; spring force 0.8 N at working stroke (pre-load 0.13 N)
• Switching point at 8.5 mm, switch path 1.5 mm, spring force at switching point 0.23 N
• Rated current 3 A
• Screw-in mounting in a KS-215 M-F receptacle, 3–5 cNm; collar height 02; adjustable installation height (10 mm)
• Operating range −40 °C to 80 °C; RoHS-compliant
