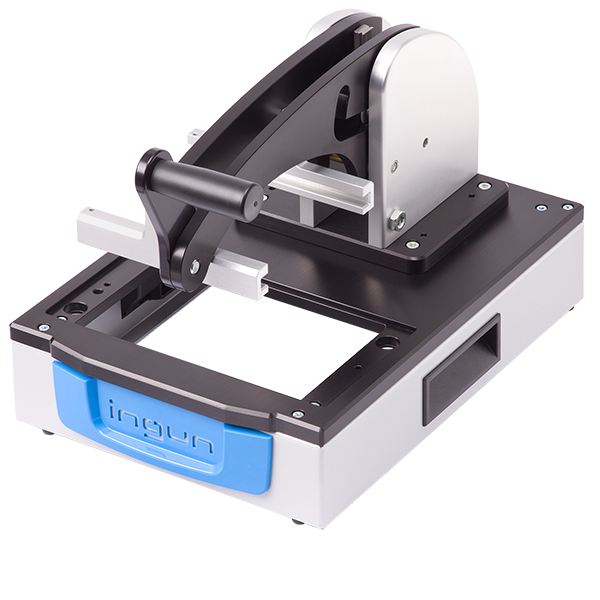

Ingun MA 360/F Fixture Base

The INGUN MA 360/F (INGUN item 45650) is a compact flat-housing manual test fixture for small boards, built around the same 160 × 100 mm useable area as the MA 260/F but with a longer 20 mm parallel contact stroke and a taller, deeper housing. The extra stroke is what you buy here: it clears taller bottom-side components on the way down, so a board that fouls the contact field in an MA 260/F will often seat cleanly in an MA 360/F.

Contacting is double-sided, so top-side connectors and test points are reachable without a separate top contacting unit, and the board-specific tooling sits in an ATS MA360 exchangeable kit that installs without tools. At 4.89 kg it remains a bench-top fixture — the right size for prototype validation, bring-up and low-volume production of small assemblies.

• Useable area 160 × 100 mm
• Max. contact force 300 N; approx. parallel contact stroke 20 mm
• Up to 150 interface signals; test system interface not pre-wired; no internal interface blocks
• Double-sided (top/bottom) contacting; gas pressure spring 100 N
• Test probe installation height 10.5 mm bottom / 16 mm top; 58 mm free space above the PCB
• Takes the ATS MA360 and ATS MA360/ESD exchangeable kits
• Flat housing; outer dimensions closed 230 × 365 × 251 mm; 4.89 kg
