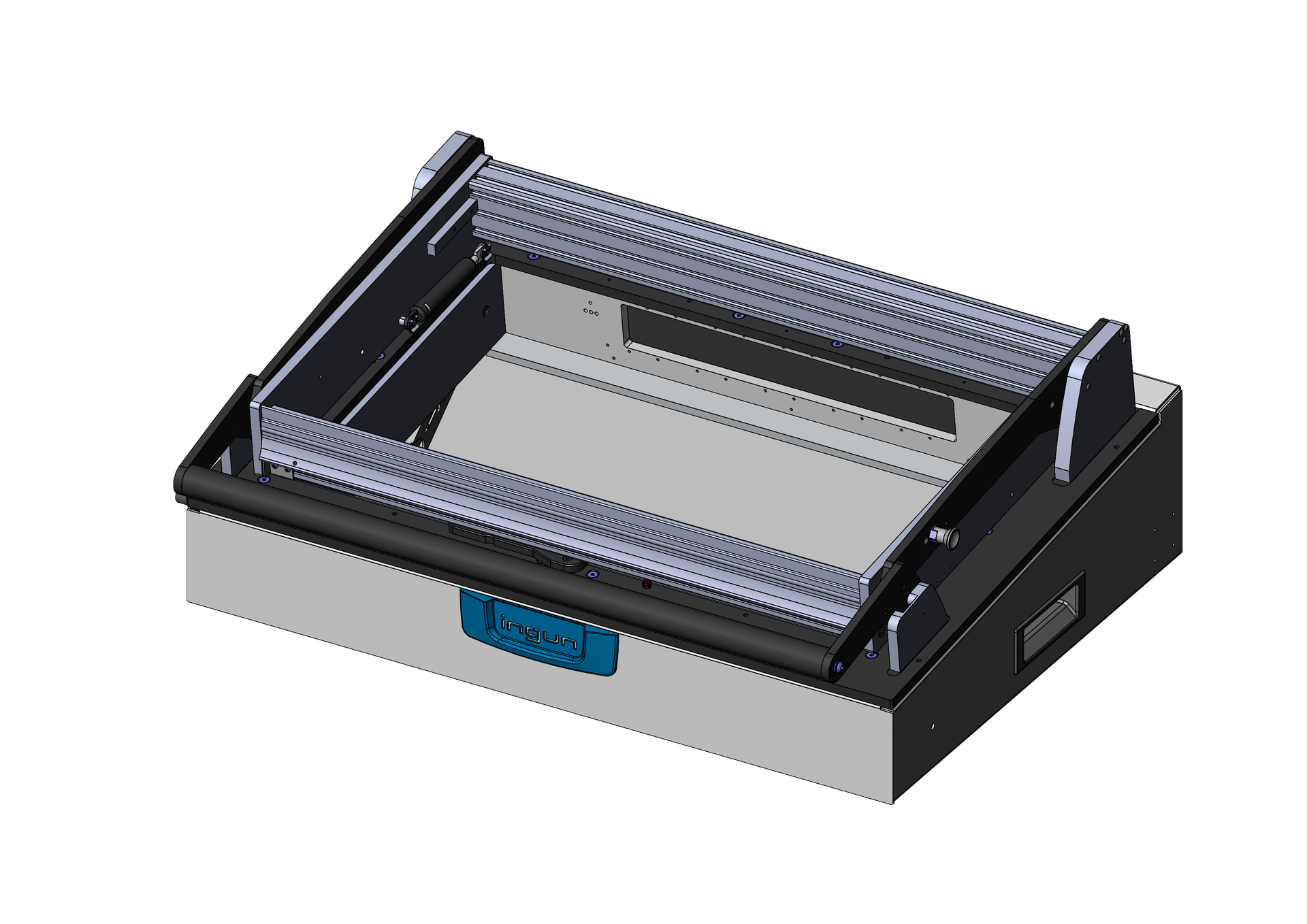

Ingun MA 2114/D/H/S-10 Test Fixture Base

The INGUN MA 2114/D/H/S-10 (INGUN item 34350) is the wide-format base in INGUN's MA 21xx manual fixture range. The parallel closing drive and 2,000 N contact force are shared with the rest of the family; what the xx14 size adds is a 540 × 310 mm useable area — 100 mm wider than an MA 2113 — for long backplanes, panelised arrays and boards that will not fit a narrower frame.

Signal capacity matches the MA 2113 at ten internal interface blocks and up to 1,700 signals, and the DUT-specific tooling lives in an ATS MA14 exchangeable kit that installs without tools. Note that unlike the MA 2112 and MA 2113, the MA 2114 is not offered in radio-frequency or rigid-pin versions; if the programme needs RF kits, choose a 2112 or 2113 instead.

• Useable area 540 × 310 mm standard, ESD and dual-stage
• Max. contact force 2,000 N; approx. parallel contact stroke 15 mm
• Up to 1,700 interface signals across 10 internal interface blocks; test system interface not pre-wired
• Single-sided (bottom) contacting; dual-stage and a top contacting unit (ZSK) available as options
• No radio-frequency or rigid-pin version
• Test probe installation height 10.5 mm bottom / 16 mm top; 58 mm free space above the PCB
• Takes the ATS MA14, ATS MA14/ESD and ATS MA14/HF/AL/ESD exchangeable kits
• Desk housing; outer dimensions closed 748 × 584 × 270 mm; 17 kg
