Ingun KS-075 WL Wireless Receptacle

The INGUN KS-075 WL (INGUN item KS-075WL) is a wireless receptacle for the 75 mil (1.91 mm) grid. It carries its own sprung contact on the underside, so instead of being soldered or wrapped it bears on a pad of the fixture's interface board — the probe field is built entirely from press-in parts with no harness behind the plate.

It is the 75 mil member of the KS wireless family, sitting between KS-050/KS-550 and KS-100. Pick it when the board's test-point pitch will not allow a 100 mil grid but the build still needs to be wireless. The underside contact is a self-cleaning 90° three-edged chisel in gold-plated CuBe, which keeps contact resistance stable against a plated interface pad over many cycles.

In Studio this receptacle is paired with the INGUN GKS-075 probe family and with Centalic PE75 probes.

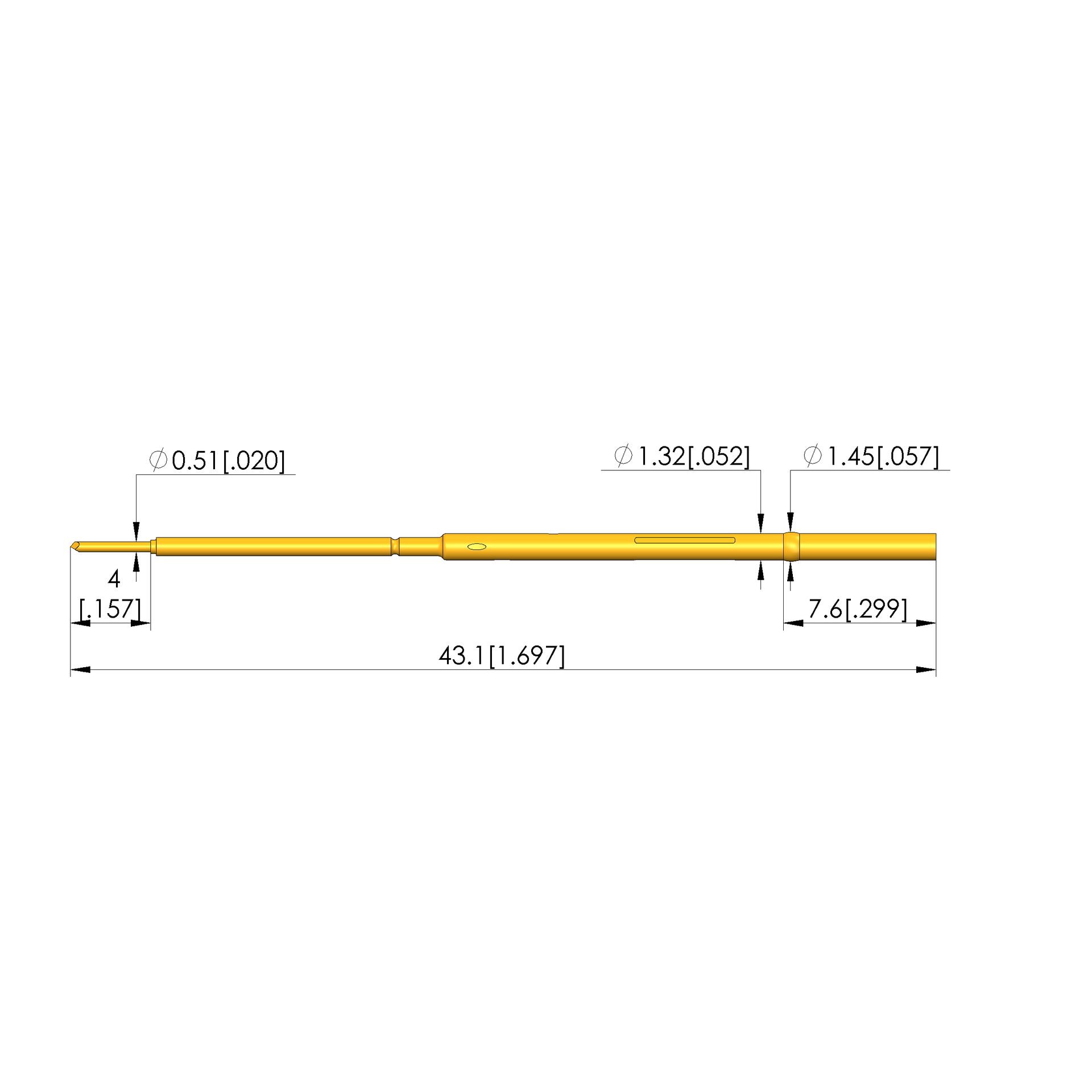

• Total length 43.1 mm (1.69 in), outer diameter 1.32 mm (.051 in)
• Collar diameter 1.47 mm, collar height 7.6 mm; with press ring
• Mounting hole 1.31 – 1.33 mm in FR4 (1.39 – 1.40 mm with press ring)
• Rated current 2 A, typical resistance 20 mOhm
• Working stroke 2.5 mm, maximum stroke 4 mm; spring force 1 N at working stroke, 0.5 N pre-load
• Wireless tip: style 07, 90° 3-edged chisel, self-cleaning; 0.51 mm diameter, gold-plated CuBe
• Operating range −40 °C to 80 °C; vacuum-tight (< 1 ccm/min); RoHS-compliant
