The INGUN KS-100 47 G (INGUN item KS-10047G) is a press-in receptacle for the 100 mil (2.54 mm) grid, combining a wire-wrap tail with a press ring. The receptacle stays in the probe plate and the spring probe plugs into it, so probe changes during maintenance need no rework of the harness.
This is the long, fully-featured member of the KS-100 range: 40 mm overall with a 7.6 mm collar, a press ring for a defined and repeatable installation depth, and a 10 mm wire-wrap post — the longest post in the series, which gives room for more than one wrap on a shared node. It is vacuum-tight, so it suits vacuum-actuated fixtures.

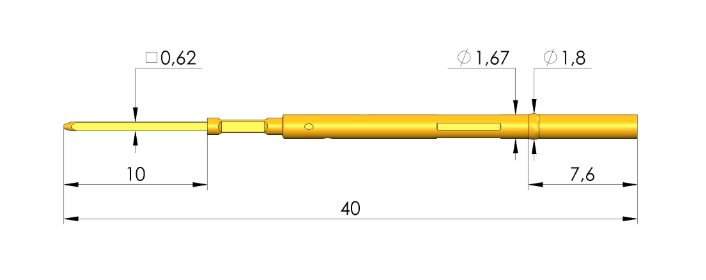

Total length 40 mm (1.57 in), outer diameter 1.67 mm (.065 in)
Collar diameter 1.85 mm, collar height 7.6 mm; with press ring
Mounting hole 1.69 – 1.70 mm in FR4 (1.72 – 1.74 mm with press ring)
Wire-wrap termination, post length 10 mm; gold surface
