The INGUN KS-100 30 05 (INGUN item KS-1003005) is a press-in receptacle for the 100 mil (2.54 mm) grid. It is pressed into the fixture's probe plate and the spring probe plugs into it, so probes can be exchanged during maintenance without any wiring work.
The 0.2 mm collar is the shallowest in the KS-100 solder-cup range, which keeps the receptacle almost flush with the plate and gives the shortest build of the 30-series at 27.7 mm. Choose it when plate stack-up is tight; pick the 25, 40 or G variants instead when you want a taller collar to set installation height.
In Studio this receptacle is paired with the INGUN GKS-100 and GKS-135 probe families and with Centalic PQ100 probes.

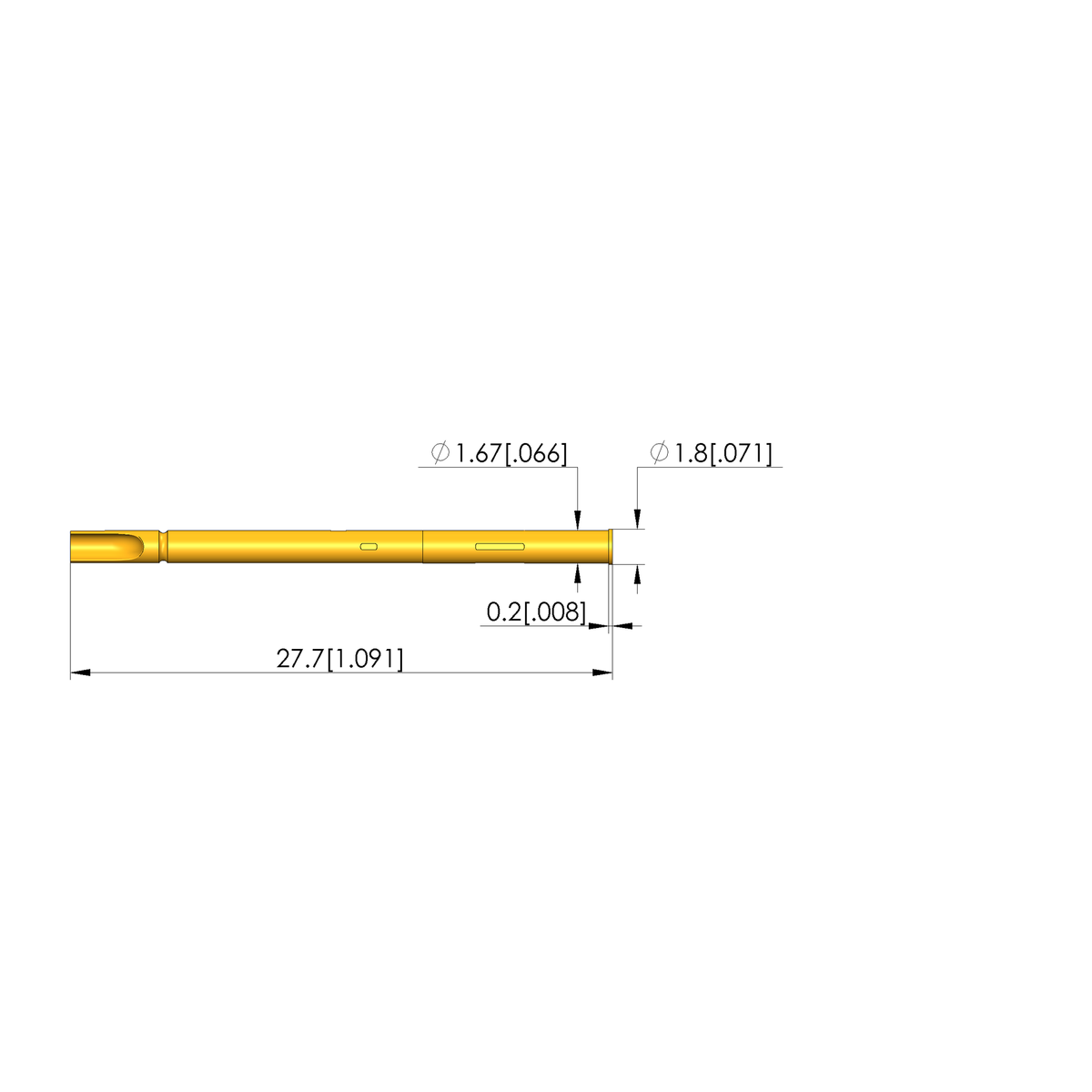

Total length 27.7 mm (1.09 in), outer diameter 1.67 mm (.065 in)
Collar diameter 1.8 mm, collar height 0.2 mm; no press ring
Mounting hole 1.69 – 1.70 mm in FR4, 1.68 – 1.69 mm in CEM1
