Ingun KS-050 E08 V-30 Receptacle, pre-wired

The INGUN KS-050 E08 V-30 (INGUN item KS-050E08V-30) is a pre-wired press-in receptacle for fine-pitch probe fields. It is pressed into the fixture's probe plate with the lead already attached, and the spring probe plugs in from the top — so a probe change costs nothing in wiring, and building the fixture costs nothing in terminating.

The "V-30" is the wiring package: a 1 m green solid AWG 30 lead in Tefzel insulation, with kink protection at the receptacle. That makes it the variant to specify when a fixture is hand-wired to a connector block or transfer plate and you want consistent, factory-terminated leads rather than 0.25 mm wire soldered by hand into a cup. Unlike the plain KS-050 E08, this version is vacuum-tight.

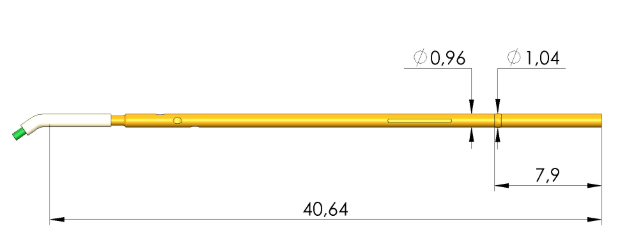

• Total length 40.6 mm (1.59 in), outer diameter 0.95 mm (.037 in)
• Collar diameter 1.04 mm, collar height 7.9 mm; with press ring
• Mounting hole 0.98 – 1.0 mm in FR4 and in CEM1
• Pre-wired: 1000 mm green solid lead, AWG 30 type 2, conductor 0.25 mm, outer 0.55 mm, Tefzel insulation, with kink protection
• Gold surface; vacuum-tight (< 1 ccm/min); RoHS-compliant
