The INGUN KS-004 30 G (INGUN item KS-00430G) is a press-in receptacle with a press ring, built on a 2.69 mm body — the largest of the KS-002 / KS-003 / KS-004 press-in group. It is pressed into the fixture's probe plate and the spring probe plugs into it, so probes are exchanged during maintenance without unsoldering or rewiring.
Choose this body when the test point calls for a heavy probe: the wider bore takes a larger probe shank and the 2.67 – 2.68 mm mounting hole gives the plate enough material around it to hold the press fit. It is the coarse-pitch end of the range, so it needs a correspondingly open test-point layout.
In Studio this receptacle is paired with the INGUN GKS-004 308 396 A 1500 probe.

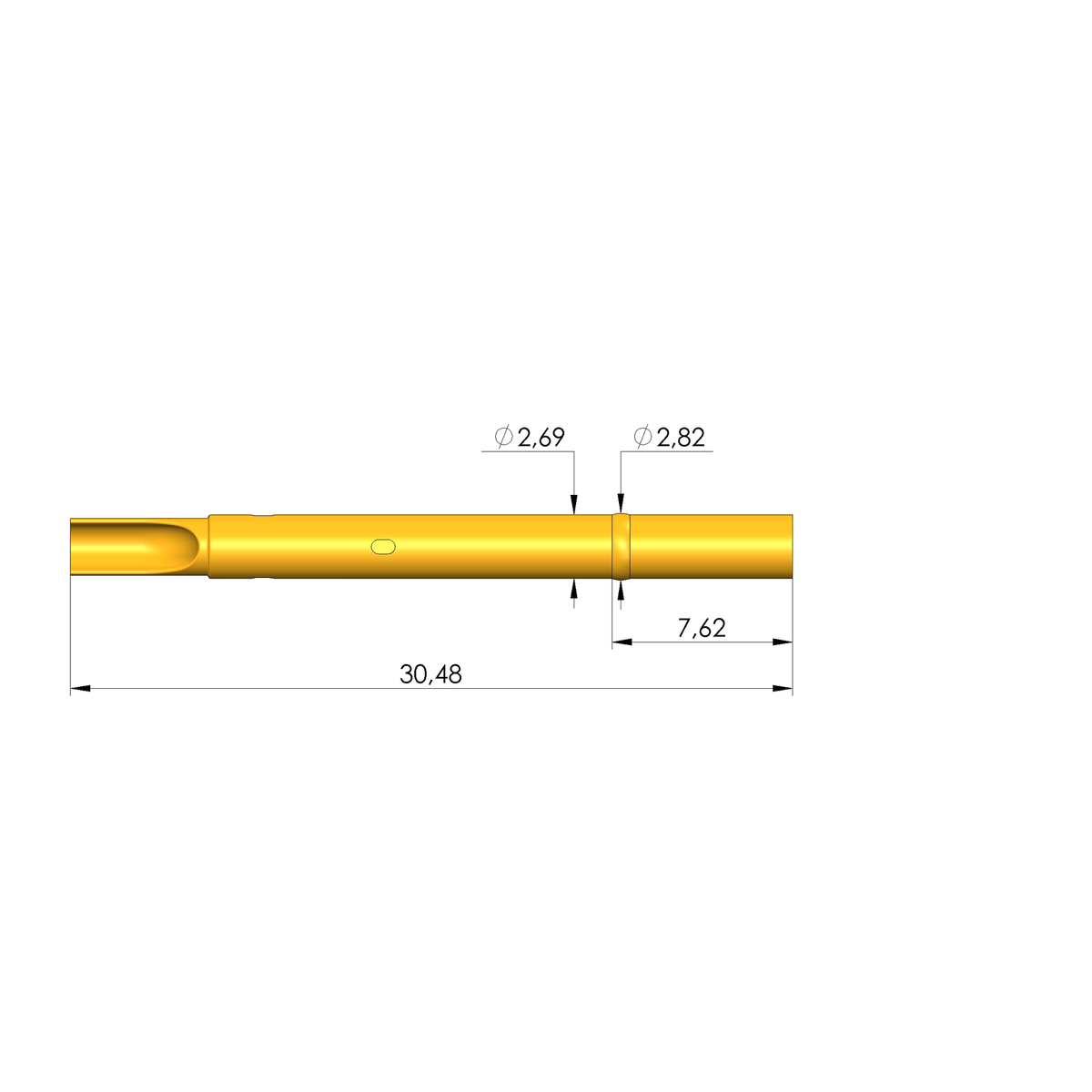

Total length 30.5 mm (1.2 in), outer diameter 2.69 mm (.105 in)
Collar diameter 2.8 mm, collar height 7.6 mm; with press ring
Mounting hole 2.67 – 2.68 mm in FR4 and CEM1 (2.72 – 2.77 mm with press ring)
