Ingun GKS-550 201 050 A 1000, Needle Tip, 50mil

The INGUN GKS-550 201 050 A 1000 (INGUN item GKS-550-0027) is a short, robust test probe on the 1.27 mm (50 mil) grid. The GKS-550 is INGUN's compact fine-pitch family: at 34.6 mm overall it is around 8.5 mm shorter than the equivalent GKS-050, which lets the whole probe-plate stack sit lower and leaves less unsupported barrel to bend under side load — a real concern at 50 mil (1.27 mm) pitch. It takes the KS-550 or KS-550 WL receptacle and supports quick exchange.

The 01 tip is a self-cleaning 30° needle at ø0.5 mm: the sharpest and narrowest head, chosen when the target is a small fine-pitch pad or land that a crown would overhang. It is rated for pad contact only and will witness the surface. Fitted with the 1.0 N spring, and rated at 2 A — treat these as signal probes.

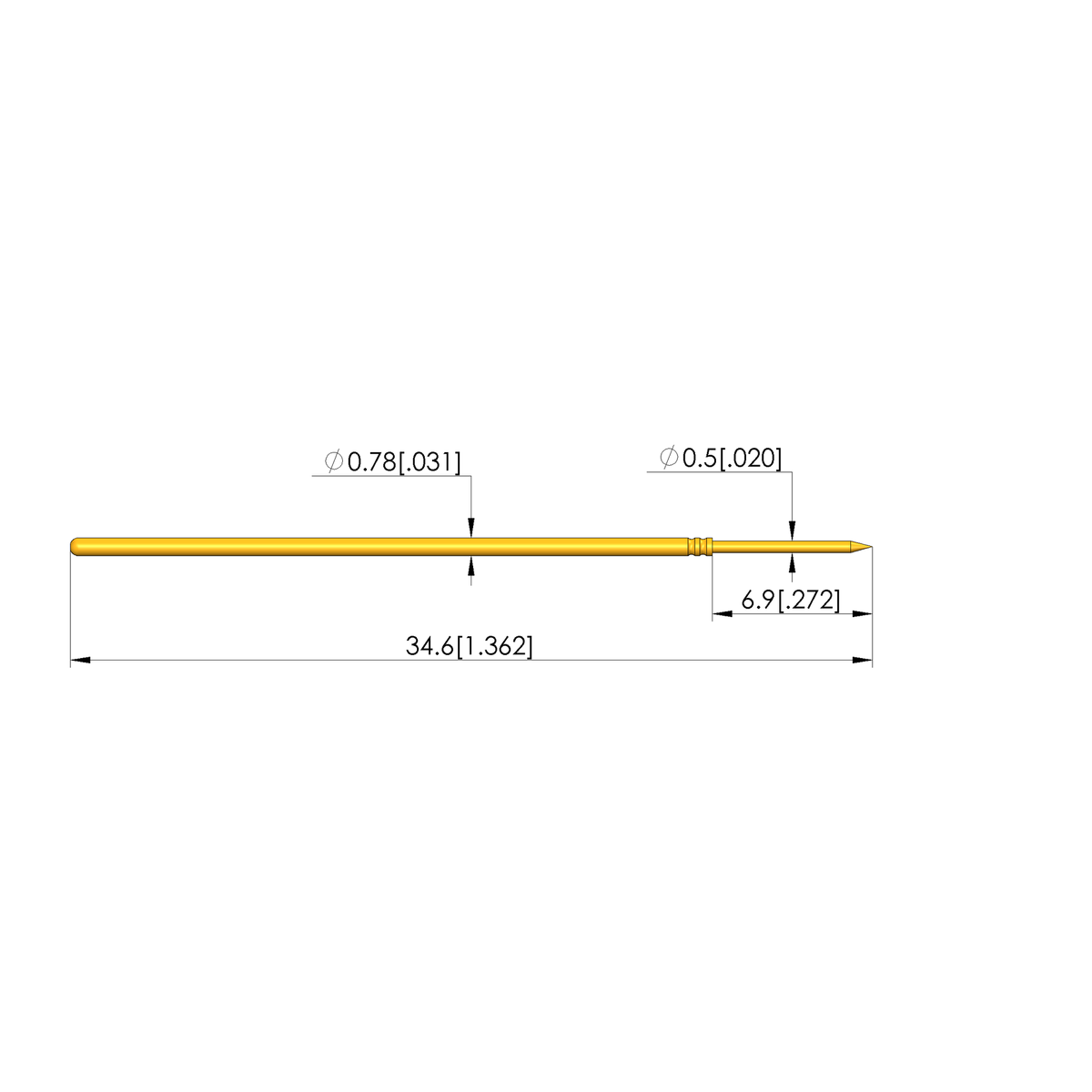

• 01 30° needle tip, self-cleaning, ø0.5 mm (.019 in), steel, gold-plated
• 1.27 mm (50 mil) grid, barrel diameter 0.78 mm (.03 in), collar height 00
• Total length 34.6 mm (1.36 in)
• Working stroke 4.3 mm (.169 in), maximum stroke 6.35 mm (.25 in)
• Spring force 1 N (3.59 ozf) at working stroke; pre-load 0.44 N
• 2 A rated current, typical resistance 20 mΩ
• Contacts pads; plug-in mounting in KS-550 or KS-550 WL, quick-exchange
• Operating range −40 °C to +80 °C; RoHS-compliant
