Ingun GKS-135 306 150 A 1500 Probe, Crown Tip, 100mil

The INGUN GKS-135 306 150 A 1500 (INGUN item GKS-135-0087) is a long-stroke spring test probe on the 2.54 mm (100 mil) grid, plugging into a KS-100 receptacle. Its 9.3 mm working stroke suits dual-stage ICT/FCT fixtures and boards whose test points sit at markedly different heights.

The 06 head is a flat serrated face 1.5 mm across in beryllium copper — the head to use on flat contacts and large pads where you want a broad, low-damage footprint with enough serration to cut through residue. Its wider tip also carries current better than a needle head, and CuBe gives lower bulk resistance than the steel-tipped variants in this series.

• Tip style 06, serrated; CuBe with gold finish

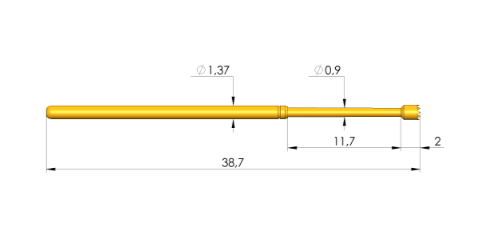

• Tip diameter 1.5 mm (.059 in), barrel diameter 1.37 mm (.053 in)
• Grid 2.54 mm (100 mil); total length 38.7 mm (1.52 in)
• Working stroke 9.3 mm (.366 in), maximum stroke 11.5 mm (.452 in)
• Spring force 1.5 N at working stroke (pre-load 0.23 N)
• Rated current 5 A; typical resistance 30 mΩ
• Plug-in mounting in a KS-100 receptacle; quick-exchange system
• Operating range −40 °C to 80 °C; RoHS-compliant
