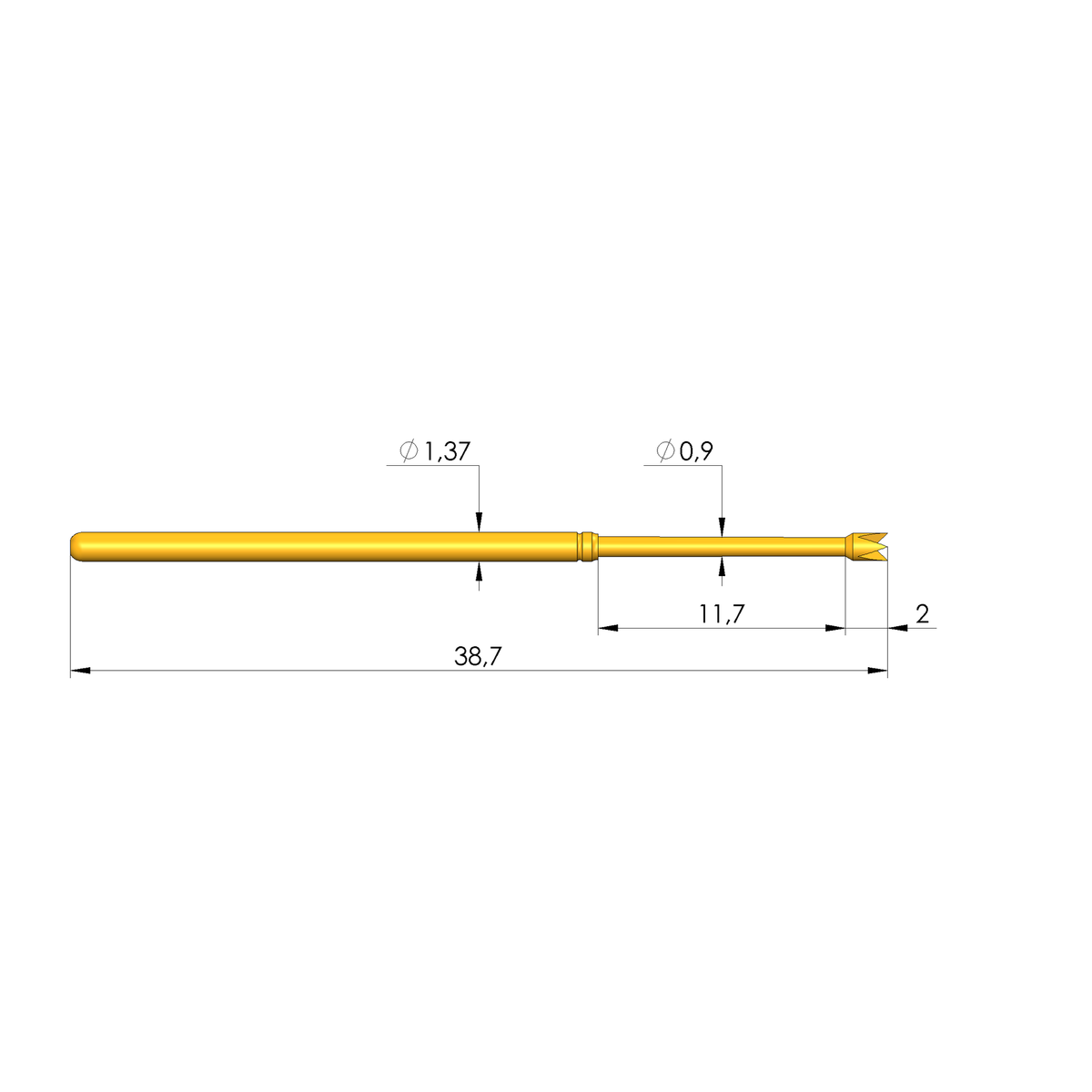

Ingun GKS-135 214 130 A 1500 Test Probe, Crown Tip, 100mil

The INGUN GKS-135 214 130 A 1500 (INGUN item GKS-135-0060) is a long-stroke spring test probe on the 2.54 mm (100 mil) grid, plugging into a KS-100 receptacle. The 9.3 mm working stroke lets a single fixture reach test points at very different heights, or hold probes clear until a second press stage.

The 14 head is a self-cleaning four-point crown, 1.3 mm across — the general-purpose head of the range. The four points concentrate load to break through oxide and flux residue while the surrounding rim keeps the probe centred on plated through-holes and vias. Pick the 201 needle head instead for small pads, or the 306 serrated head for flat contacts.

• Tip style 14, four-point crown, self-cleaning; steel with gold finish
• Tip diameter 1.3 mm (.051 in), barrel diameter 1.37 mm (.053 in)
• Grid 2.54 mm (100 mil); total length 38.7 mm (1.52 in)
• Working stroke 9.3 mm (.366 in), maximum stroke 11.5 mm (.452 in)
• Spring force 1.5 N at working stroke (pre-load 0.23 N)
• Rated current 5 A; typical resistance 30 mΩ
• Plug-in mounting in a KS-100 receptacle; quick-exchange system
• Operating range −40 °C to 80 °C; RoHS-compliant
