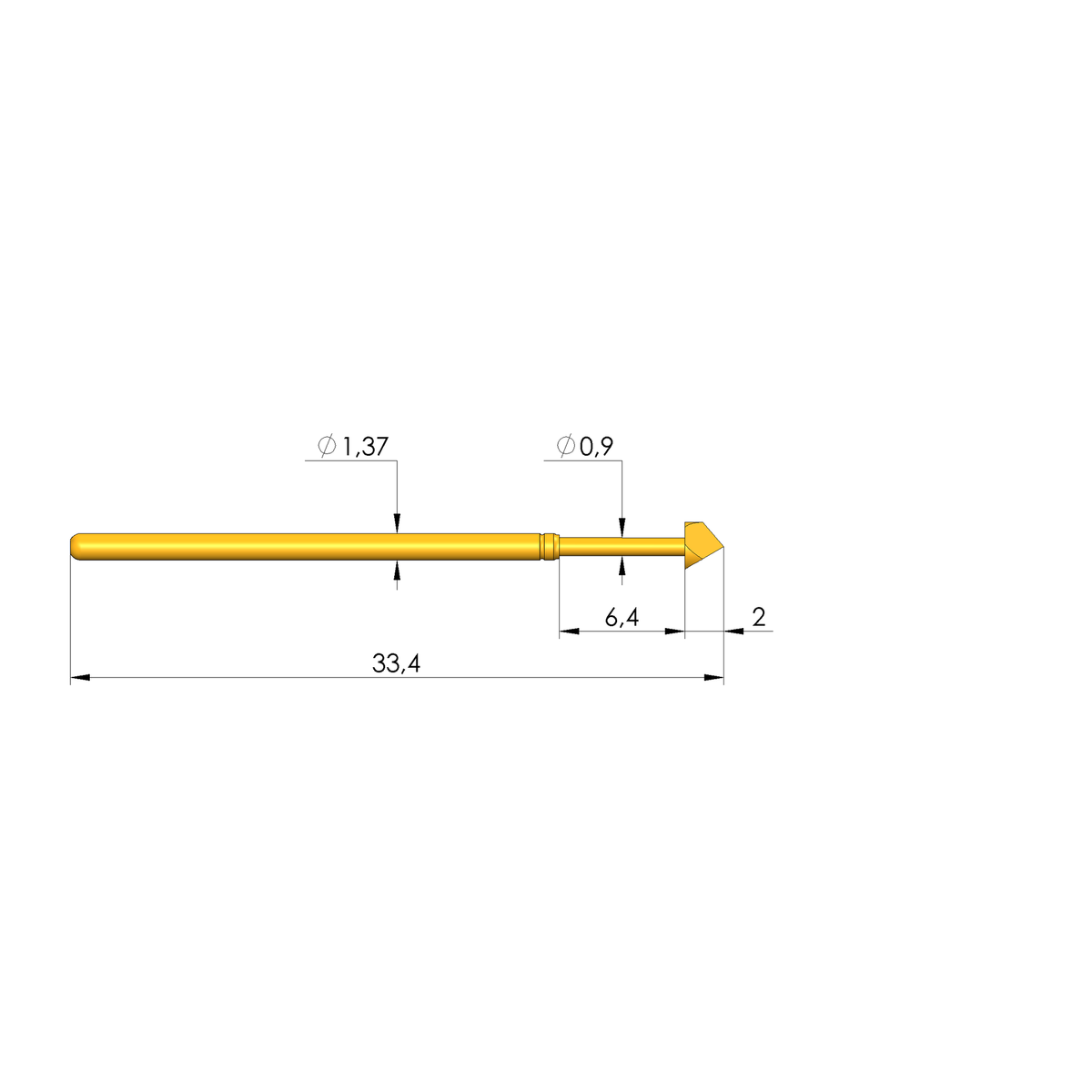

Ingun GKS-100 307 250 A 1500 Test Probe, Chisel Tip, 118mil

The INGUN GKS-100 307 250 A 1500 (INGUN item GKS-100-1150) is a standard-stroke spring test probe from the GKS-100 family, plugging into a KS-100 receptacle. Its large 2.5 mm head is laid out on a 3 mm (118 mil) grid rather than the 2.54 mm (100 mil) spacing used by the finer heads in the range.

The 07 head is a self-cleaning 90° three-edged chisel in beryllium copper. Three cutting edges shear through oxide and no-clean residue while spreading load over a wide footprint, which suits large pads, terminals and busbars where a needle would dig in. The 1.5 N spring is the mid force for this geometry.

• Tip style 07, 90° three-edged chisel, self-cleaning; CuBe with gold finish
• Tip diameter 2.5 mm (.098 in), barrel diameter 1.37 mm (.053 in)
• Grid 3 mm (118 mil); total length 33.4 mm (1.31 in)
• Working stroke 4.3 mm, maximum stroke 6.35 mm; spring force 1.5 N at working stroke (pre-load 0.49 N)
• Rated current 5 A; typical resistance 20 mΩ
• Plug-in mounting in a KS-100 receptacle; quick-exchange system
• Operating range −40 °C to 80 °C; RoHS-compliant
