Ingun GKS-100 291 130 A 2000 Probe, Needle Tip, 100mil

The INGUN GKS-100 291 130 A 2000 (INGUN item GKS-100-0158) is a spring-loaded test probe for the 2.54 mm (100 mil) grid, seated in a KS-100 receptacle so it can be replaced from the top of the fixture.

Tip style 91 is a self-cleaning dagger — a blade rather than a cone or a crown. The edge cuts a line across the target as the probe compresses, wiping oxide, flux residue and light coatings aside to expose clean metal, which is what makes a dagger the tip to reach for when a pad or via simply will not read with a gentler geometry. It is less aggressive than the 77 dagger but considerably sharper than a chisel or a crown, so treat it as a problem-solver rather than a default: on soft or thinly plated pads it will leave a mark. INGUN list it for pads and vias. The 2 N spring is the middle force for this geometry, enough to make the edge bite without the board loading of a 3 N field.

• Tip style 91, dagger, self-cleaning; tip diameter 1.3 mm (0.051 in)

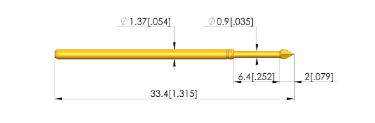

• Barrel diameter 1.37 mm (0.053 in), total length 33.4 mm (1.31 in)
• Grid pitch 2.54 mm (100 mil)
• Spring force 2 N at working stroke, pre-load 0.66 N
• Working stroke 4.3 mm, maximum stroke 6.35 mm
• Current rating 5 A, contact resistance 20 mΩ typical
• Steel plunger, gold-plated
• Contacts pads and vias; receptacle KS-100. Operating range −40 °C to 80 °C
