Ingun GKS-100 201 090 A 1500, Needle Tip, 100mil

The INGUN GKS-100 201 090 A 1500 (INGUN item GKS-100-0123) is a standard-stroke test probe on the 2.54 mm (100 mil) grid, plugging into a KS-100 receptacle with quick exchange.

The 01 tip is a self-cleaning 30° needle. It is the sharpest, most concentrated tip in the family: the reason to pick it is a small, clean target — a test pad or land that is too small for a crown head, or a via you need to reach into — where the priority is landing exactly where you aimed. It is rated for pad contact only, and because the whole spring force acts on a fine point it will mark the surface. The 1500 spring (1.5 N) is the middle force for the family; the 2000 variant is available where a firmer bite is needed.

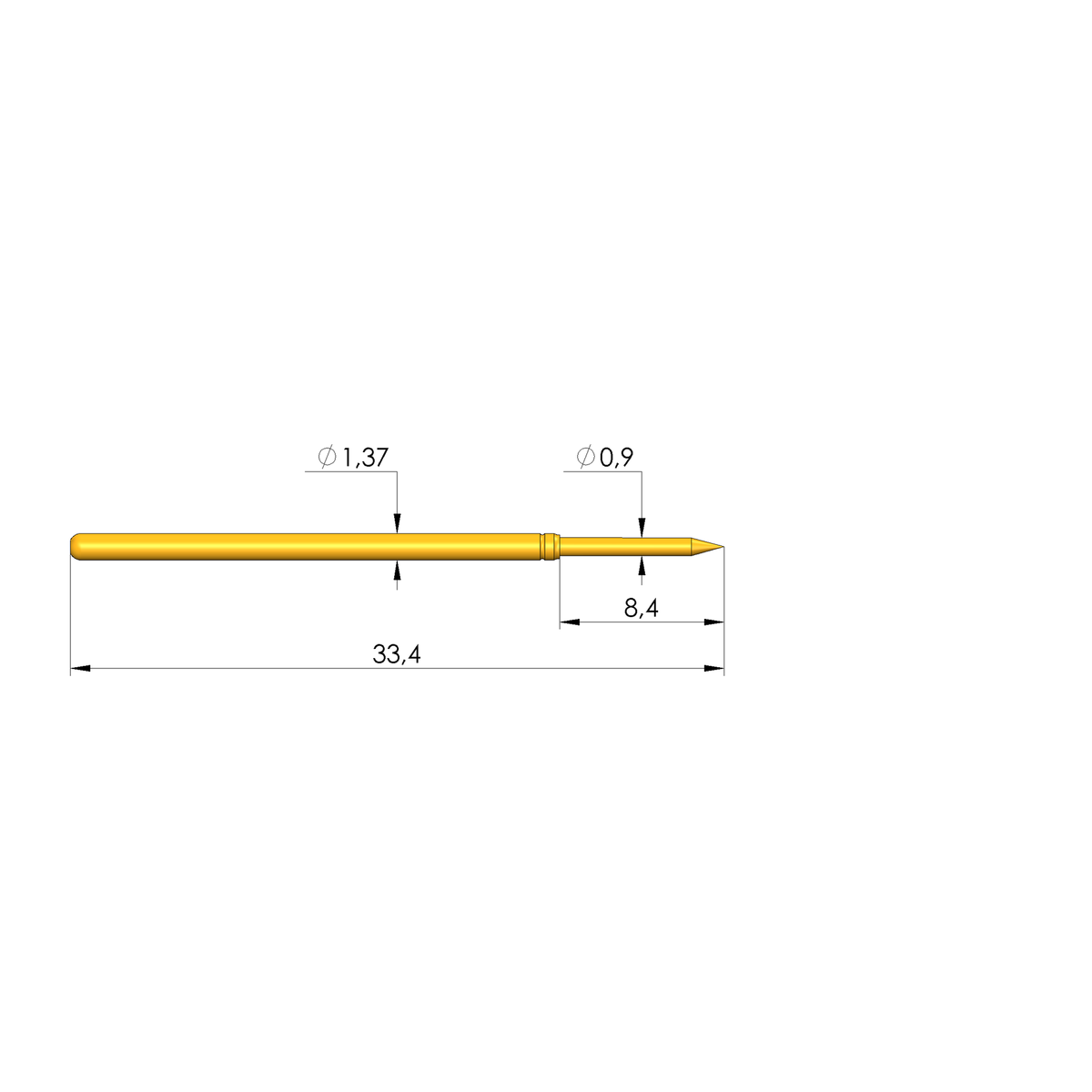

• 01 30° needle tip, self-cleaning, ø0.9 mm (.035 in), steel, gold-plated
• 2.54 mm (100 mil) grid, barrel diameter 1.37 mm (.053 in), collar height 00
• Total length 33.4 mm (1.31 in)
• Working stroke 4.3 mm (.169 in), maximum stroke 6.35 mm (.25 in)
• Spring force 1.5 N (5.39 ozf) at working stroke; pre-load 0.49 N
• 5 A rated current, typical resistance 20 mΩ
• Contacts pads; plug-in mounting in KS-100, quick-exchange
• Operating range −40 °C to +80 °C; RoHS-compliant
