Ingun GKS-075 214 050 A 1000, Crown Tip, 75mil

The INGUN GKS-075 214 050 A 1000 (INGUN item GKS-075-0014) is a standard-stroke test probe on the 1.91 mm (75 mil) grid, plugging into a KS-075 receptacle with quick exchange.

The 14 tip is a self-cleaning 4-point crown — four points around an open centre, relieved so flux and solder debris clear rather than packing into the tip. It is the general-purpose ICT tip: enough bite for flux-contaminated solder joints, enough width to be tolerant of landing error, and equally happy on pads, posts and pins. At ø0.5 mm this is the small-head version, sized for tight test pads; the 204 / 115 variant offers a wider 1.15 mm crown where the target allows. Fitted with the 1.0 N spring, a moderate force that keeps total probe-field load manageable in a dense 75 mil (1.91 mm) fixture.

• 14 4-point crown, self-cleaning tip, ø0.5 mm (.019 in), steel, gold-plated

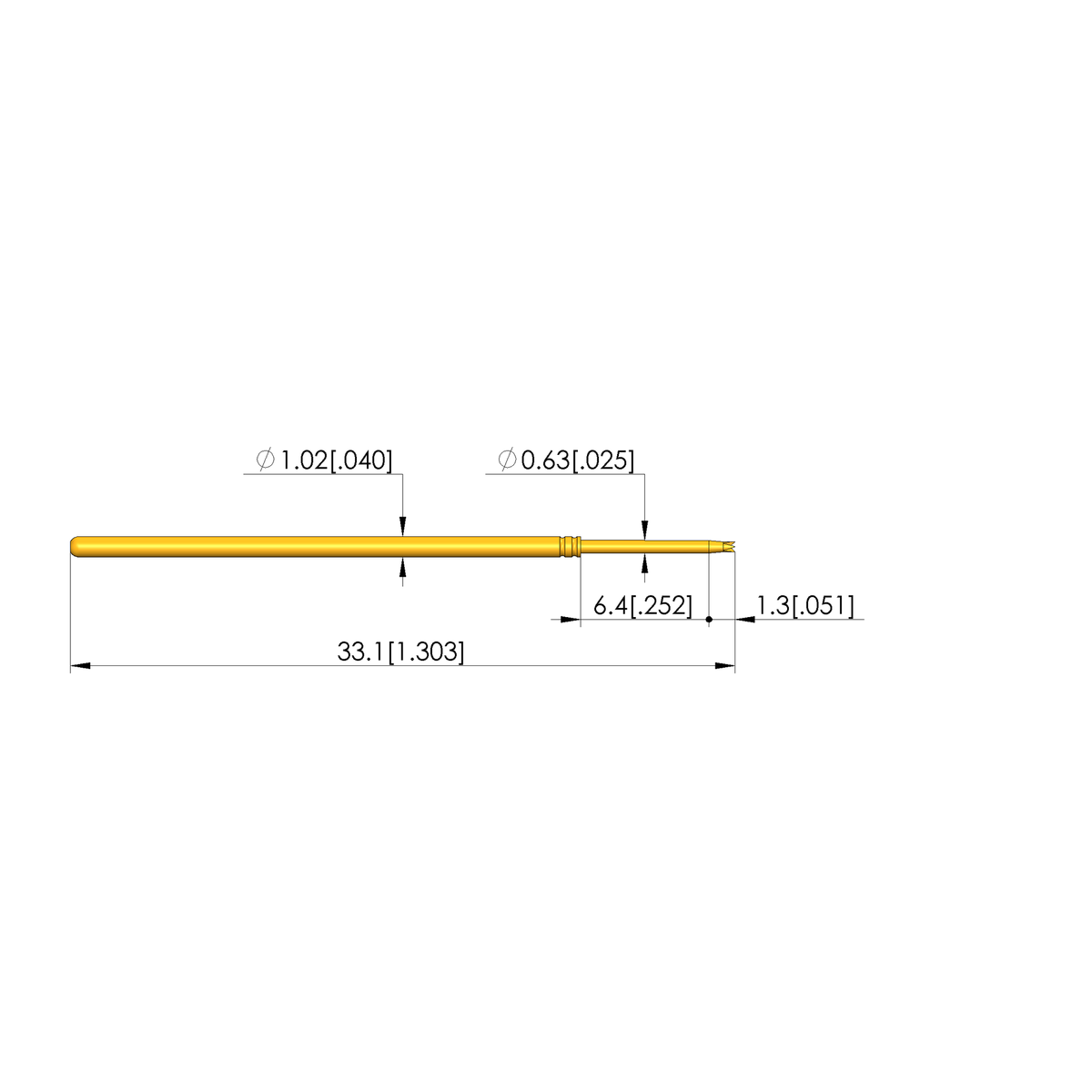

• 1.91 mm (75 mil) grid, barrel diameter 1.02 mm (.04 in), collar height 00
• Total length 33.1 mm (1.3 in)
• Working stroke 4.3 mm (.169 in), maximum stroke 6.35 mm (.25 in)
• Spring force 1 N (3.59 ozf) at working stroke; pre-load 0.4 N
• 3 A rated current, typical resistance 20 mΩ
• Contacts pads, posts and pins; plug-in mounting in KS-075, quick-exchange
• Operating range −40 °C to +80 °C; RoHS-compliant
