Ingun GKS-075 207 120 A 2000 Probe, Chisel Tip, 75mil

The INGUN GKS-075 207 120 A 2000 (INGUN item GKS-075-0018) is a spring-loaded test probe for the 1.91 mm (75 mil) grid, seated in a KS-075 receptacle so it can be replaced from the top of the fixture.

Tip style 07 is a 90° three-edged chisel, self-cleaning. Its edges meet in a line rather than a point, so the tip scrubs a short track across the target as the probe compresses and cuts through oxide and flux residue on a flat pad, while spreading load more kindly than a needle or a dagger. This variant carries the heaviest spring commonly stocked for the series at 2 N, which is the combination to reach for on stubborn lead-free or reworked pads where a 1 N chisel gives intermittent readings. The cost is board load, so keep it targeted rather than using it as the default across a large field.

• Tip style 07, 90° 3-edged chisel, self-cleaning; tip diameter 1.2 mm (0.047 in)

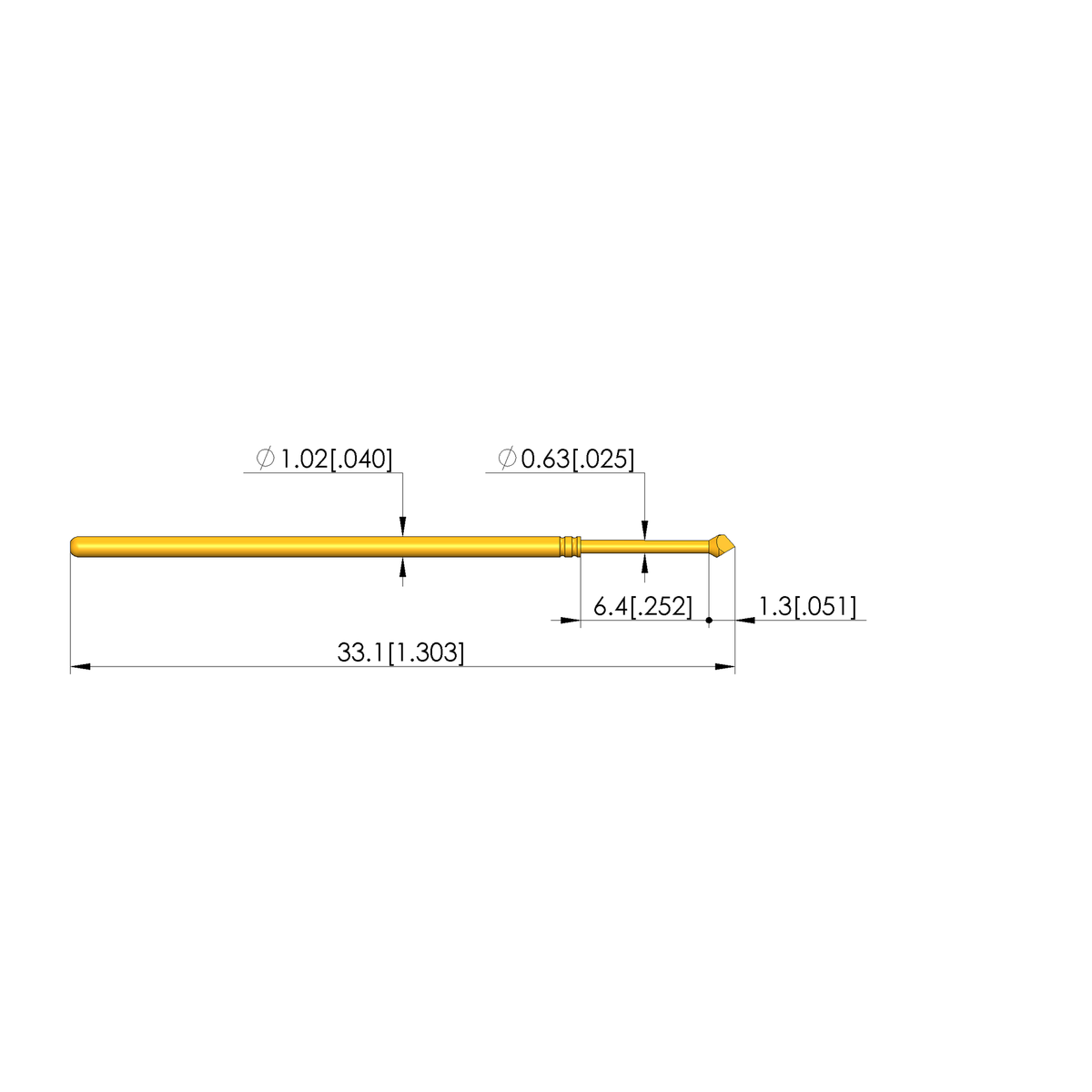

• Barrel diameter 1.02 mm (0.04 in), total length 33.1 mm (1.3 in)
• Grid pitch 1.91 mm (75 mil)
• Spring force 2 N at working stroke, pre-load 0.72 N
• Working stroke 4.3 mm, maximum stroke 6.35 mm
• Current rating 3 A, contact resistance 20 mΩ typical
• Steel plunger, gold-plated
• Receptacle: KS-075
