Ingun GKS-075 201 064 A 1000 Probe, Needle Tip, 75mil

The INGUN GKS-075 201 064 A 1000 (INGUN item GKS-075-0056) is a spring-loaded test probe for the 1.91 mm (75 mil) grid, seated in a KS-075 receptacle so it can be replaced from the top of the fixture without rewiring.

Tip style 01 is a 30° needle point, self-cleaning — the sharpest geometry in the range and the default choice for vias, plated through-holes and small bare pads. The fine point breaks the surface film and, in a via, drops into the hole and centres itself rather than skating to the rim. Its 0.64 mm diameter keeps the keep-out requirement small, which is the reason to pick it over the broader 17 pyramid or 19 cone on a crowded board. The trade is that a needle concentrates all its force on one point: it will witness-mark a soft pad, and it is the wrong tip for a finished gold contact. This variant carries the lightest spring in the family at 1 N.

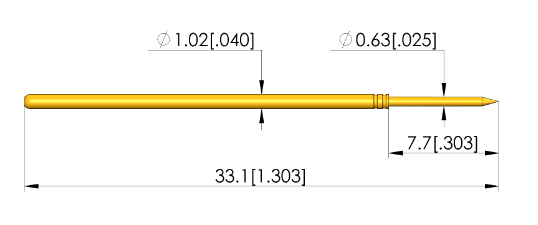

• Tip style 01, 30° needle tip, self-cleaning; tip diameter 0.64 mm (0.025 in)
• Barrel diameter 1.02 mm (0.04 in), total length 33.1 mm (1.3 in)
• Grid pitch 1.91 mm (75 mil)
• Spring force 1 N at working stroke, pre-load 0.4 N
• Working stroke 4.3 mm, maximum stroke 6.35 mm
• Current rating 3 A, contact resistance 20 mΩ typical
• Steel plunger, gold-plated
• Receptacle: KS-075
