Ingun GKS-040 214 040 A 0800 Test Probe, Crown Tip, 40mil

The INGUN GKS-040 214 040 A 0800 (INGUN item GKS-040-0040) is a spring-loaded test probe for in-circuit and functional test on a 1 mm (39.3 mil) grid. It plugs into a KS-040 receptacle in the fixture's probe plate, and the sprung plunger takes up board flatness and Z-height variation so contact force stays repeatable across the probe field.

This variant carries the 14 head — a self-cleaning four-point crown. The crown is the general-purpose choice for plated through-holes, vias and slightly contaminated pads: the four points concentrate load so they break through residue, while the surrounding rim keeps the probe centred. Pick the 297 dagger head instead when you need a single cutting point on a small flat pad.

• Tip style 14, four-point crown, self-cleaning; steel with gold finish

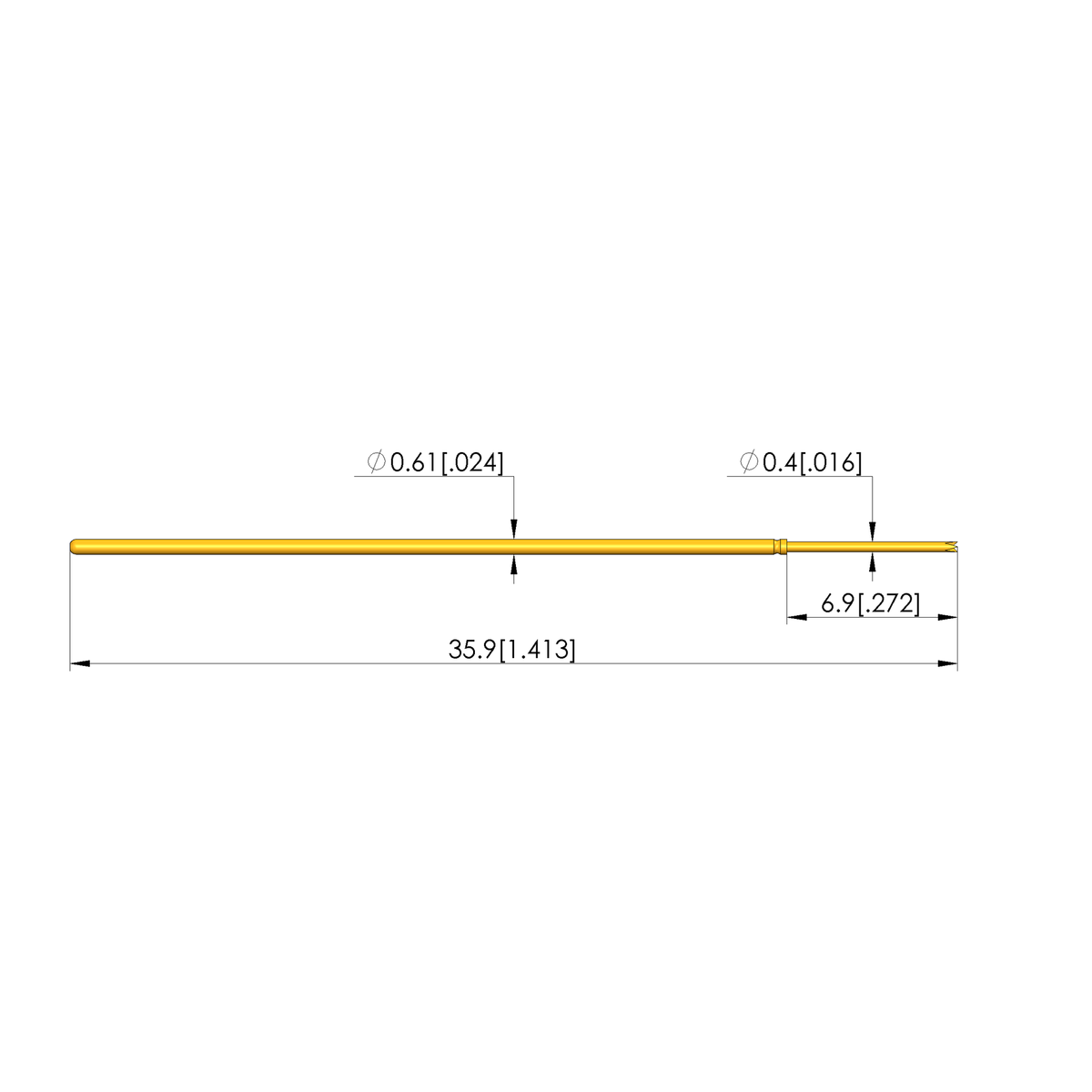

• Tip diameter 0.4 mm (.015 in), barrel diameter 0.61 mm (.024 in)
• Grid 1 mm (39.3 mil); total length 35.9 mm (1.41 in)
• Working stroke 4.3 mm, maximum stroke 6.35 mm; spring force 0.8 N at working stroke (pre-load 0.15 N)
• Rated current 2 A; typical resistance 20 mΩ
• Plug-in mounting in a KS-040 receptacle; quick-exchange system
• Operating range −40 °C to 80 °C; RoHS-compliant
