Ingun GKS-040 207 040 A 1500 Probe, Crown Tip, 40mil

An INGUN GKS-040 207 040 A spring-loaded test probe: a 1 mm (39.3 mil) grid, standard-stroke probe that plugs into a KS-040 receptacle in the fixture's probe plate. The sprung plunger takes up board flatness and Z-height variation so contact force and penetration stay repeatable across the probe field.

The 207 head is a 90° three-edged chisel, self-cleaning, on a 0.4 mm tip — three cutting edges that shear through light oxide and flux residue while spreading load more evenly than a single-point dagger. Choose the GKS-040 family when pad or via spacing is too tight for the 1.91 mm GKS-075 or 2.54 mm GKS-100 probes.

• Tip style 07, 90° three-edged chisel, self-cleaning; steel with gold finish
• Tip diameter 0.4 mm (.015 in), barrel diameter 0.61 mm (.024 in)
• Grid 1 mm (39.3 mil); total length 35.9 mm (1.41 in)
• Working stroke 4.3 mm, maximum stroke 6.35 mm
• Spring force approximately 80 gf at working stroke
• Rated current 2 A; typical resistance 20 mΩ

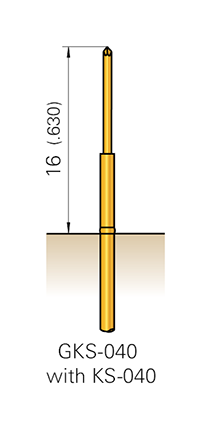

• Plug-in mounting in a KS-040 receptacle; quick-exchange system
• Operating range −40 °C to 80 °C; RoHS-compliant
