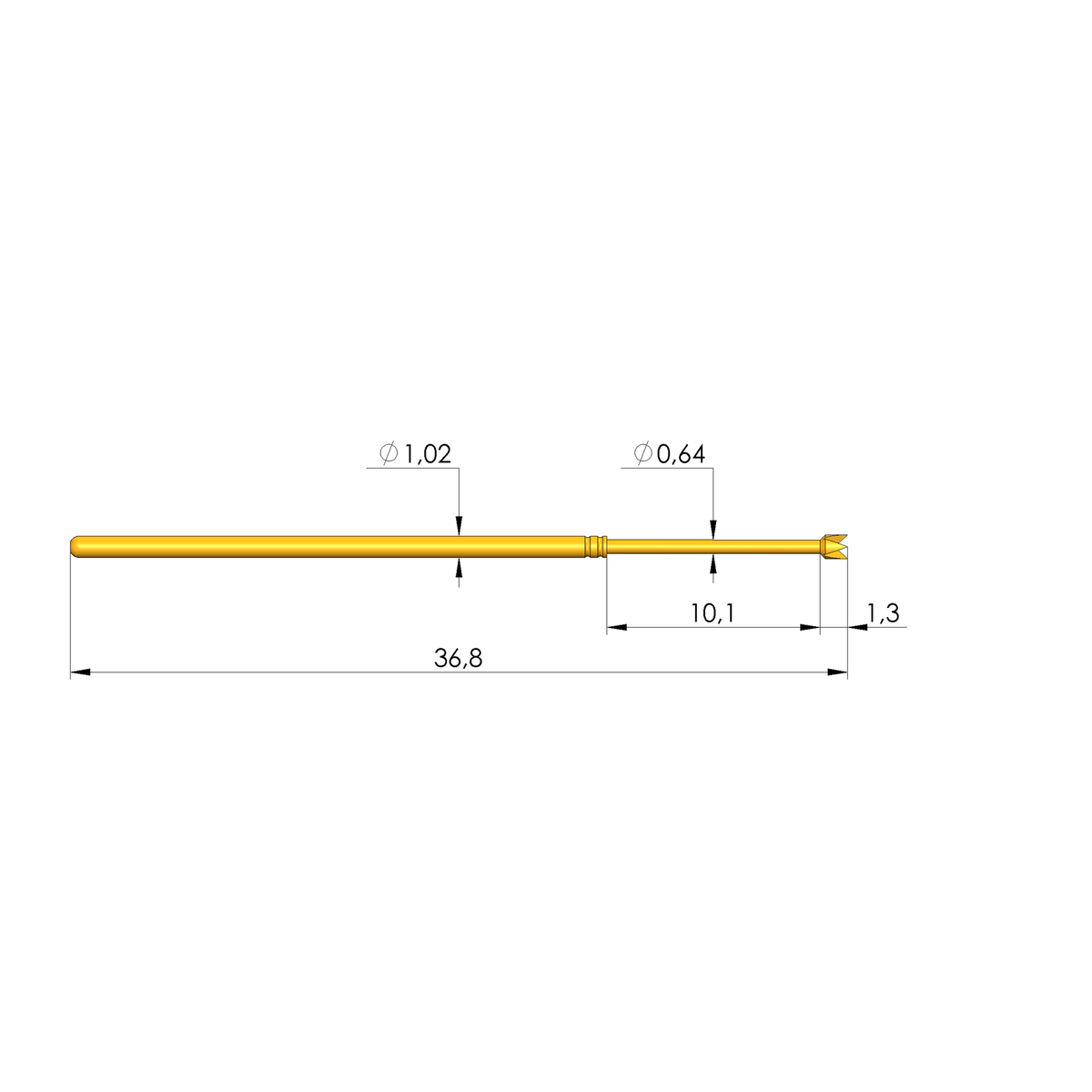

Ingun GKS-035 214 115 A 1200 Probe, Crown Tip, 75mil

The INGUN GKS-035 214 115 A 1200 (INGUN item GKS-035-0003) is a long-stroke spring test probe on the 1.91 mm (75 mil) grid, plugging into a KS-075 receptacle. It gives the long travel of the GKS-135 family on a 75 mil (1.91 mm) barrel, so a fine-pitch fixture can still reach targets at very different heights or hold probes clear until a second press stage.

Working stroke is 8 mm — nearly twice a standard 75 mil (1.91 mm) probe — with 10 mm maximum. The 14 head is a self-cleaning four-point crown, 1.15 mm across, the general-purpose choice for plated through-holes, vias and pads with light residue. The light 1.2 N spring keeps plate load manageable on dense fields.

• Tip style 14, four-point crown, self-cleaning; steel with gold finish
• Tip diameter 1.15 mm (.045 in), barrel diameter 1.02 mm (.04 in)
• Grid 1.91 mm (75 mil); total length 36.8 mm (1.44 in)
• Working stroke 8 mm (.314 in), maximum stroke 10 mm (.393 in)
• Spring force 1.2 N at working stroke (pre-load 0.21 N)
• Rated current 3 A; typical resistance 20 mΩ
• Plug-in mounting in a KS-075 receptacle; quick-exchange system
• Operating range −40 °C to 80 °C; RoHS-compliant
