Ingun GKS-004 308 396 A 1500, Star Tip, 187mil

The INGUN GKS-004 308 396 A 1500 (INGUN item GKS-004-0017) is a short, robust test probe on a coarse 4.75 mm (187 mil) grid with an unusually large ø3.96 mm head. It is built for targets that are big, not dense: battery and power terminals, large through-hole leads, screw posts and heavy connector contacts, where a 100 mil (2.54 mm) probe would be lost on the pad.

The 08 tip is a self-cleaning 90° cone. On a large round or irregular target the cone self-centres as the probe compresses and the conical flank wipes the surface, so contact does not depend on the fixture landing the probe exactly on centre. Being from the short/robust GKS family the 2.36 mm barrel is stiff enough to take side loading that would bend a fine probe, and the part is rated to 6 A. It plugs into a KS-004 receptacle and supports quick exchange.

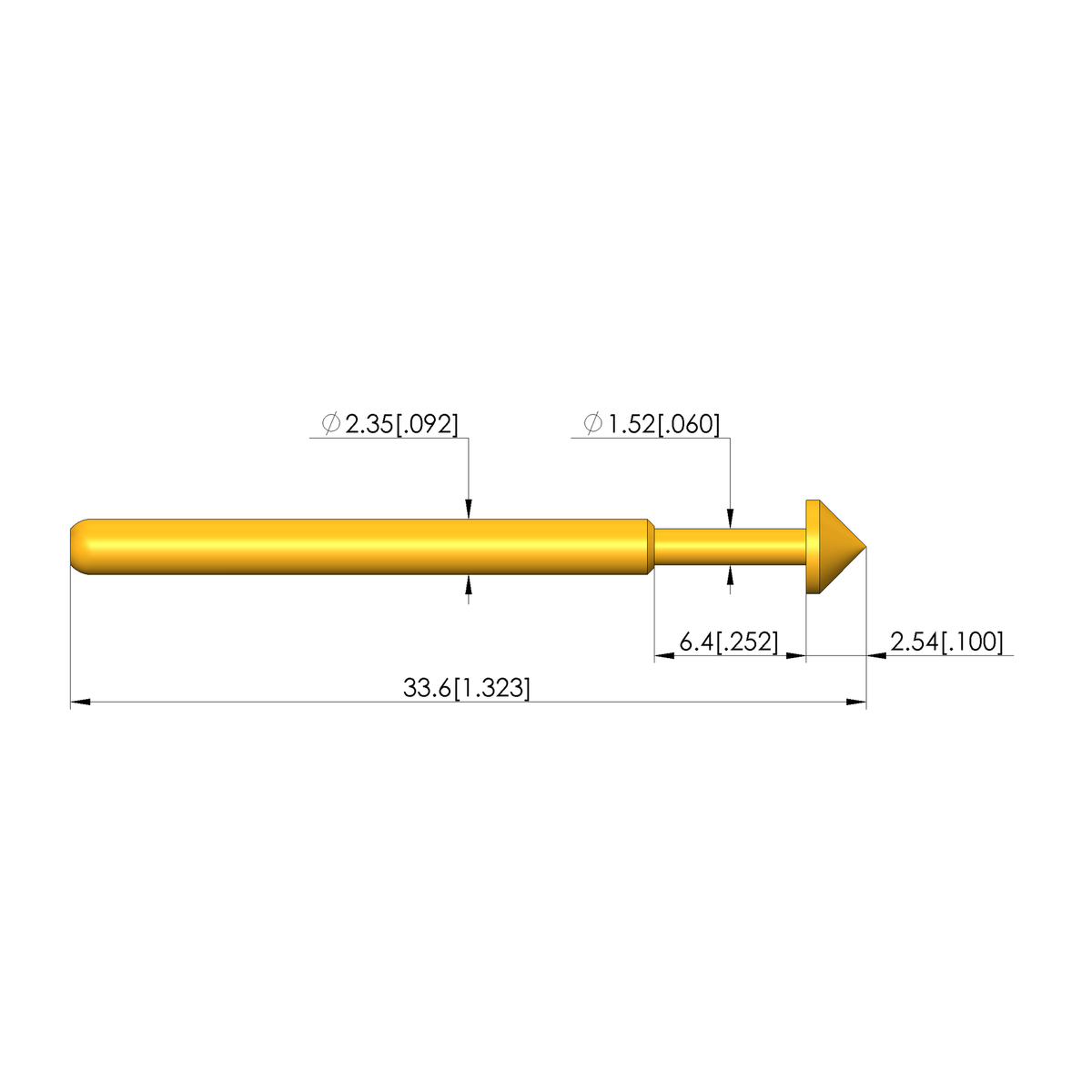

• 08 90° conical, self-cleaning tip, ø3.96 mm (.155 in), CuBe, gold-plated
• 4.75 mm (187 mil) grid, barrel diameter 2.36 mm (.092 in), collar height 00
• Total length 33.6 mm (1.32 in)
• Working stroke 4.4 mm (.173 in), maximum stroke 6.35 mm (.25 in)
• Spring force 1.5 N (5.39 ozf) at working stroke; pre-load 0.76 N
• 6 A rated current, typical resistance 20 mΩ
• Contacts pads, vias and female connectors; plug-in mounting in KS-004, quick-exchange
• Operating range −40 °C to +80 °C; RoHS-compliant
