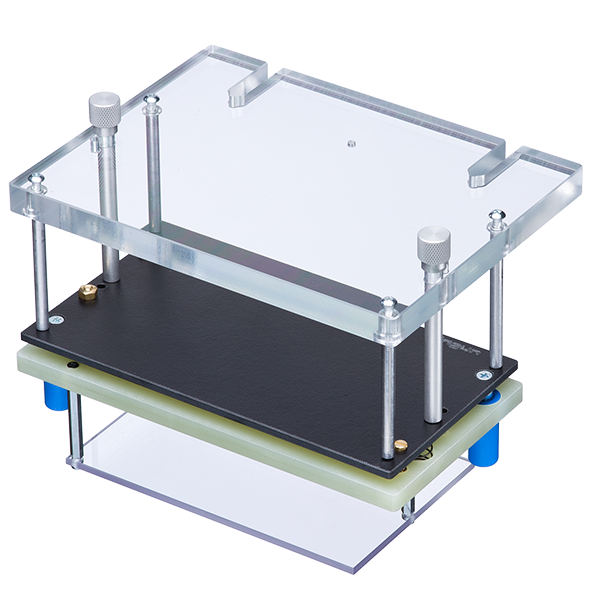

The INGUN ATS MA360 (INGUN item 45669-KIT) is the exchangeable kit for the MA 360 manual test fixture, a compact benchtop unit for small boards. It carries the DUT-specific probe plate and pressure plate, so the fixture and its wiring survive board revisions.
It matches the MA260 kit on useable area and signal count and differs in one respect that matters at design time: 60 mm pushrods rather than 20 mm, which is the standard length used across the larger ATS MAxx kits. That makes it the right choice when the pressure-plate stack needs the extra travel, or when tooling is being shared with a larger fixture. Signals leave through VG multipoint connectors wired to your own configuration; ships unassembled.
Useable area 160 × 100 mm (6.29 × 3.93 in)
Outer dimensions 206 × 120 × 162 mm
Up to 150 interface signals via VG multipoint connectors
Pushrod length 60 mm, free space above PCB 58 mm
Test probe installation height 16 mm top, 10.5 mm bottom
Double-sided contact with a compatible option; no dual-stage contacting
