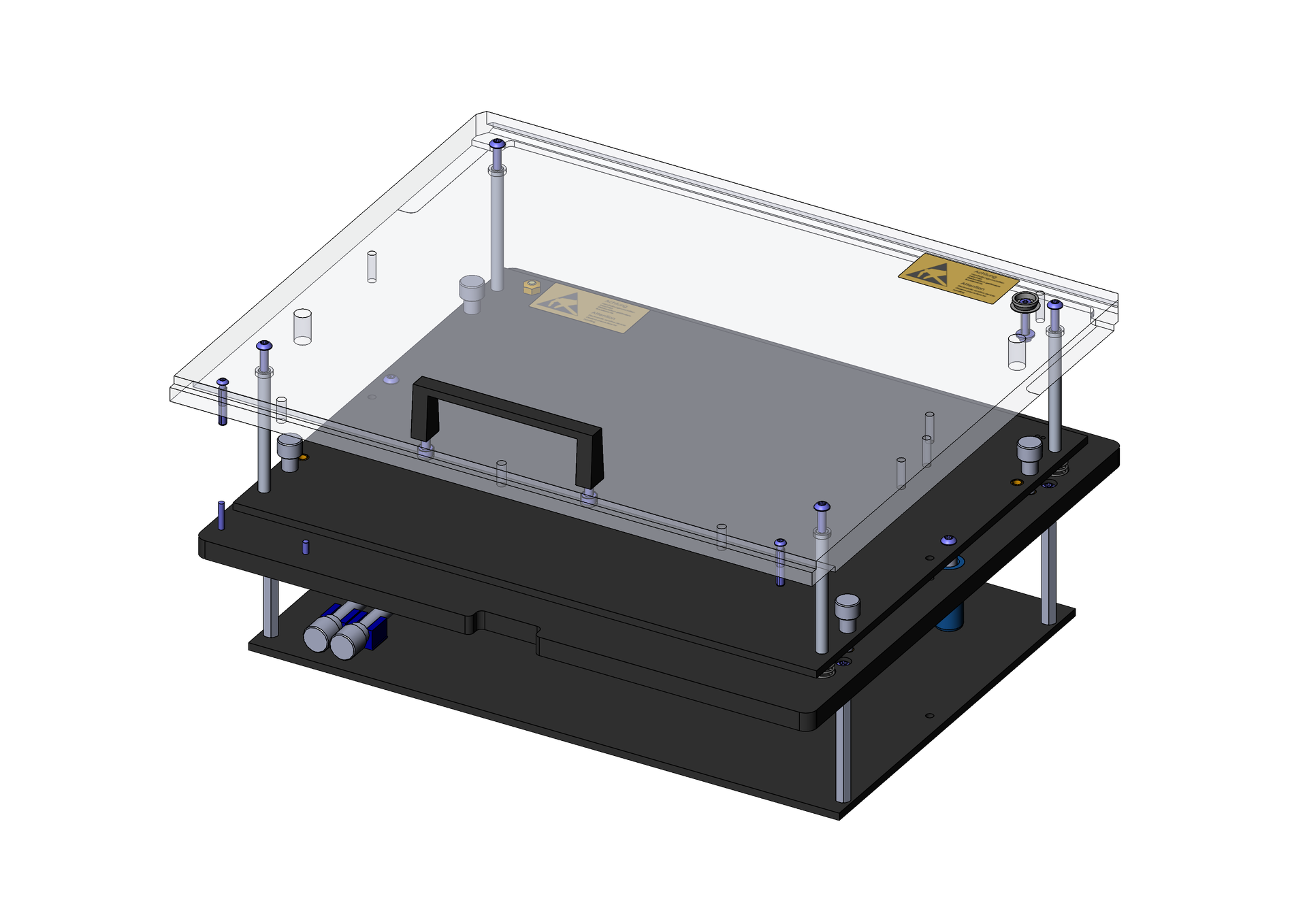

The INGUN ATS MA12/ESD (INGUN item 46250-KIT) is the ESD build of the MA12 exchangeable kit for MA x112 and MA x212 manual test fixture bases. INGUN lists it as the “ESD without interface” version: the same 285 × 240 mm kit as the standard MA12, with a dissipative-coated probe plate for contacting ESD-sensitive assemblies.
It is the default choice for production lines running under an EPA regime; the plain ATS MA12 is the cheaper pick when the DUT has no ESD-sensitive parts. Mechanically the two are interchangeable in the same base, so a fixture can be moved between them without rework. Ships unassembled and seats tool-free with no readjustment.
Useable area 285 × 240 mm (11.2 × 9.44 in)
Outer dimensions 350 × 307 × 199 mm
Up to 1,190 interface signals; no internal interface
Pushrod length 60 mm, free space above PCB 58 mm
Test probe installation height 16 mm top, 10.5 mm bottom
Dual-stage contacting and double-sided contact available with compatible options
