Ingun ATS MA11/HF/AL/ESD

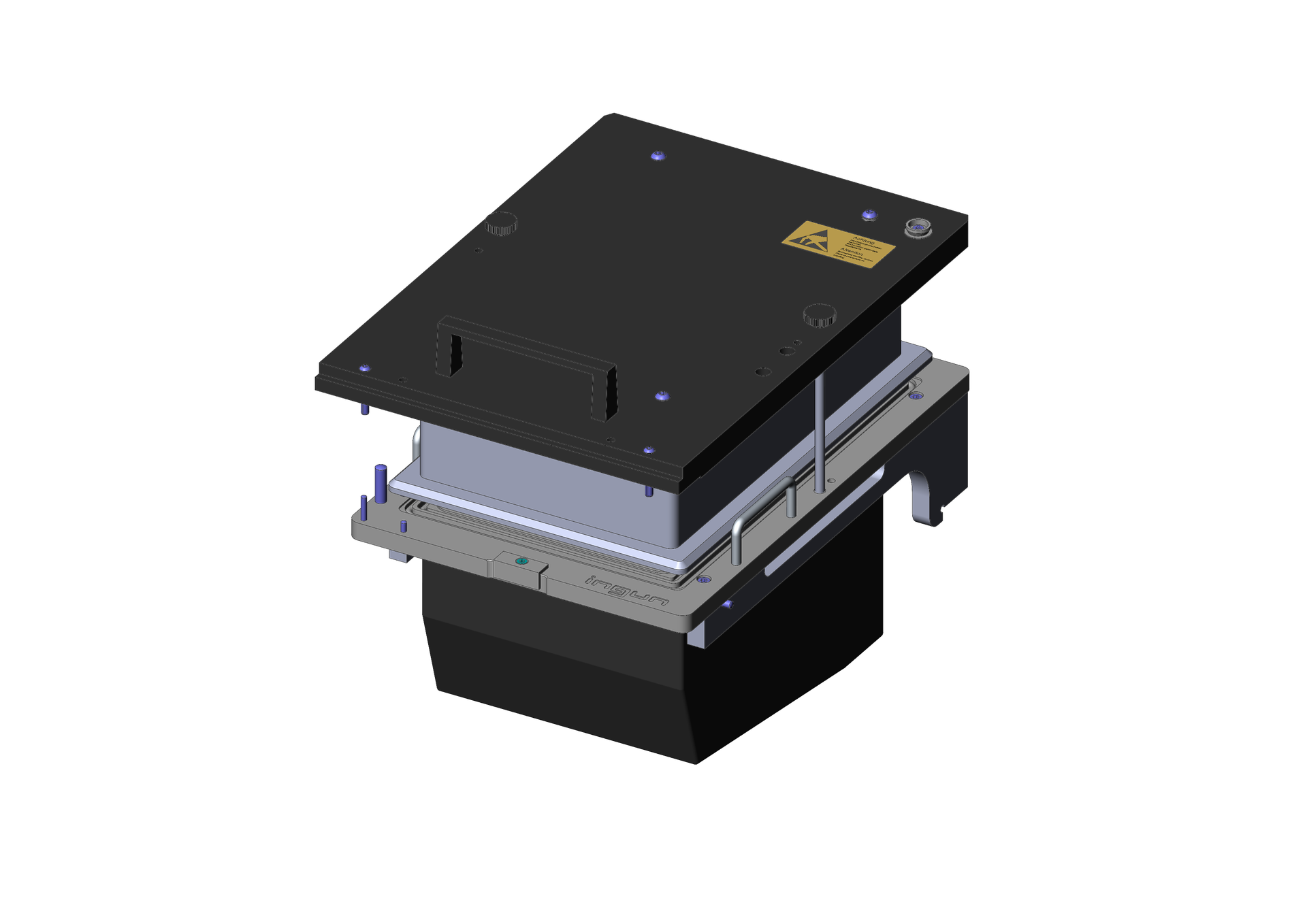

The INGUN ATS MA11/HF/AL/ESD (INGUN item 154011) is the RF build of the MA11 exchangeable kit, listed by INGUN as the “RF, ESD, without interface” version. It encloses the probe field in a shielded chamber so radio-frequency signals can be contacted and measured without interference from the outside world or from elsewhere inside the fixture.

Choose it over the plain or ESD MA11 kits when the DUT is a wireless or high-frequency assembly and the measurement, not just the continuity, has to be trusted. The trade-off is area and mass: the shielding chamber cuts the useable area to 110 × 160 mm and roughly doubles the kit weight, and dual-stage contacting is not offered on this version. It ships partially assembled and drops into MA 2x11, MA 2x13T, MA 3211 and MA 3213T bases tool-free.

• Useable area 110 × 160 mm (4.33 × 6.29 in)
• Shielding attenuation > 60 dB up to 6 GHz
• Outer dimensions 210 × 313 × 255 mm
• Up to 850 interface signals; no internal interface
• Pushrod length 60 mm, free space above PCB 58 mm
• Test probe installation height 16 mm top, 10.5 mm bottom
• Double-sided contact with a compatible option; no dual-stage contacting
• Weight 5.97 kg (13.1 lbs); RoHS-compliant
