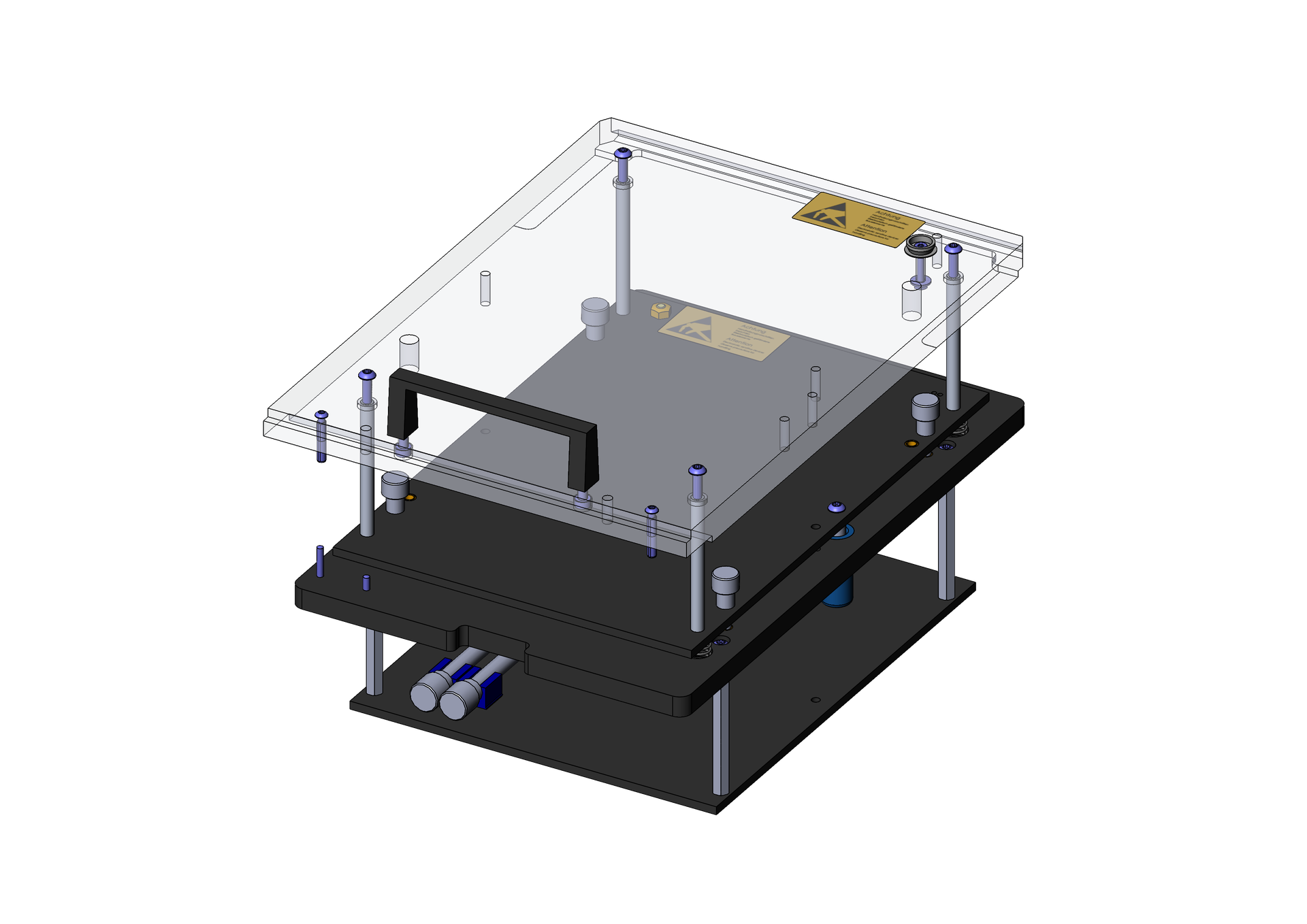

The INGUN ATS MA11/ESD (INGUN item 46248-KIT) is the ESD build of the MA11 exchangeable kit, for MA x111 and MA x211 manual test fixture bases. INGUN lists it as the “ESD without interface” version: the same 150 × 240 mm kit as the standard MA11, with a dissipative-coated probe plate so charge does not build up on the plate while an ESD-sensitive assembly is being contacted.
Pick this over the plain ATS MA11 whenever the DUT carries ESD-sensitive parts or the line runs under an EPA regime; pick the plain version if it does not, since the two are otherwise mechanically interchangeable. It seats in the base tool-free with no readjustment and ships unassembled for customising.
Useable area 150 × 240 mm (5.9 × 9.44 in)
Outer dimensions 210 × 307 × 199 mm
Up to 850 interface signals; no internal interface
Pushrod length 60 mm, free space above PCB 58 mm
Test probe installation height 16 mm top, 10.5 mm bottom
Dual-stage contacting and double-sided contact available with compatible options; suitable for tandem fixtures
