Ingun ATS MA11

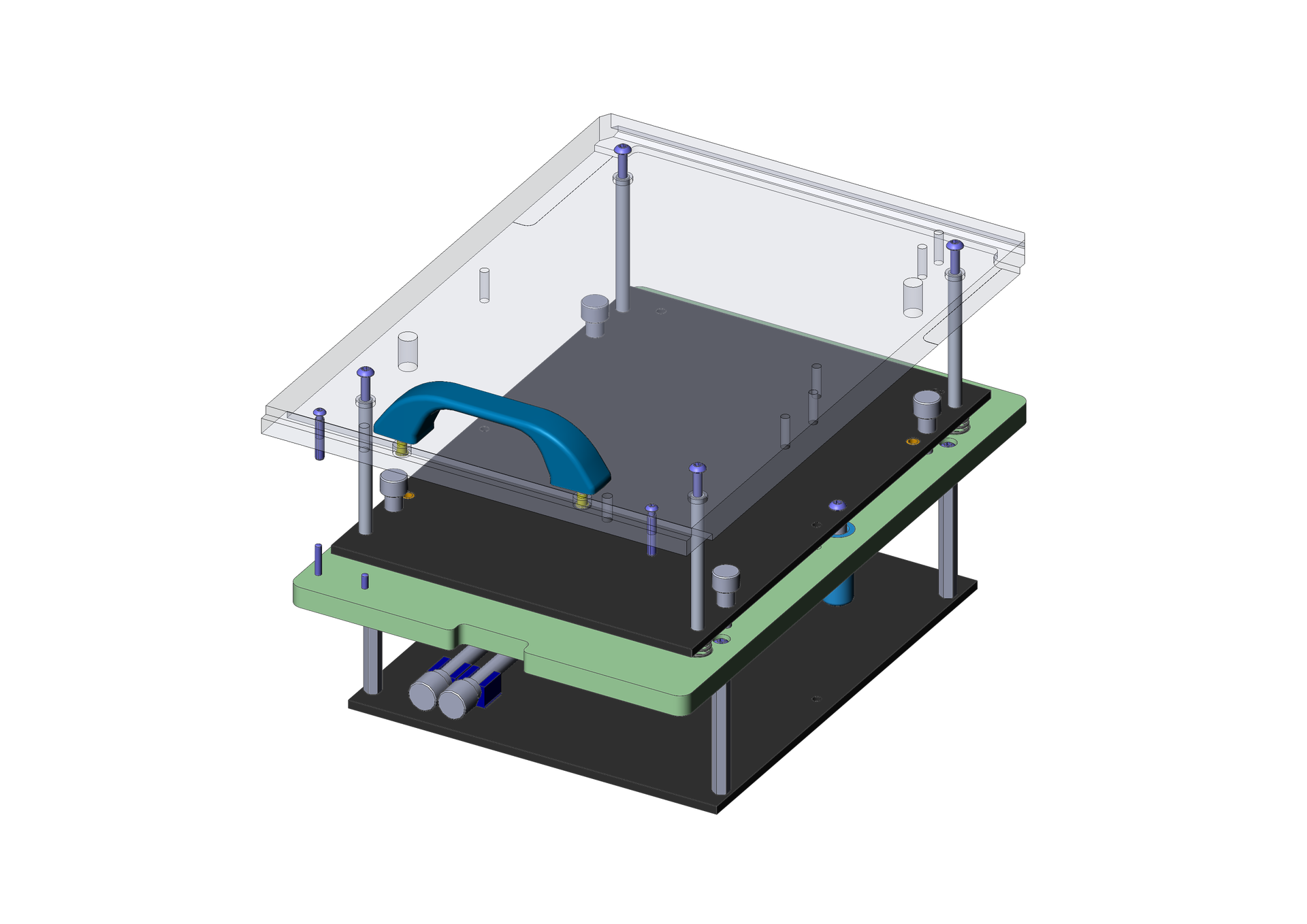

The INGUN ATS MA11 (INGUN item 45900-KIT) is the exchangeable kit for MA x111 and MA x211 manual test fixture bases. The kit carries the probe plate and pressure plate that hold the DUT-specific tooling, while the base frame, drive mechanism and instrumentation wiring stay with the fixture — so a new board revision means a new cartridge, not a new fixture.

This is the plain build of the MA11 range: no ESD coating, no RF shielding and no internal interface. Reach for it when the board is not ESD-sensitive and signals leave the fixture through your own feedthrough rather than INGUN interface blocks. Pressure plate unit and probe plate unit screw together with stacking screws into one assembly with a protected probe field, and the kit seats in the base tool-free with no readjustment. It ships unassembled so it can be drilled and wired for your DUT.

• Useable area 150 × 240 mm (5.9 × 9.44 in)
• Outer dimensions 210 × 307 × 197 mm
• Up to 850 interface signals; no internal interface
• Pushrod length 60 mm, free space above PCB 58 mm
• Test probe installation height 16 mm top, 10.5 mm bottom
• Dual-stage contacting and double-sided contact available with compatible options; suitable for tandem fixtures
• Weight 2.75 kg (6.06 lbs); RoHS-compliant
