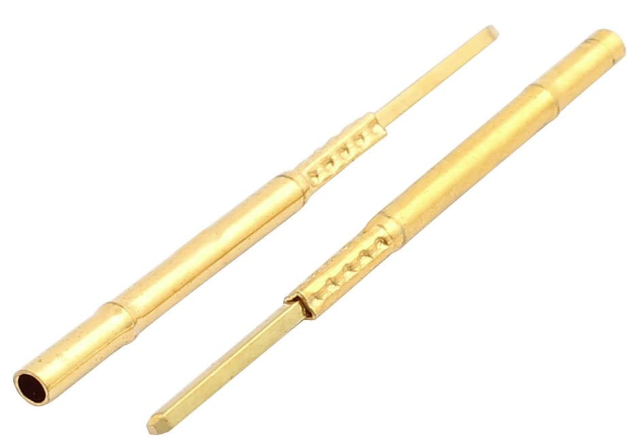

The R75 series, part of the Generic Receptacles product group, offers a value line receptacle solution designed for reliability and cost efficient performance. This series of receptacles is used in our Development series of fixtures.
Key Specifications
Compatible Test Probes: P75 Series
Connection Type: Wire-wrap
Collar Height: 5mm
Minimum Center-to-Center Pitch: 1.91mm (75mil)
Mounting Hole Diameter: 1.4mm
Current Rating: 2A continuous
