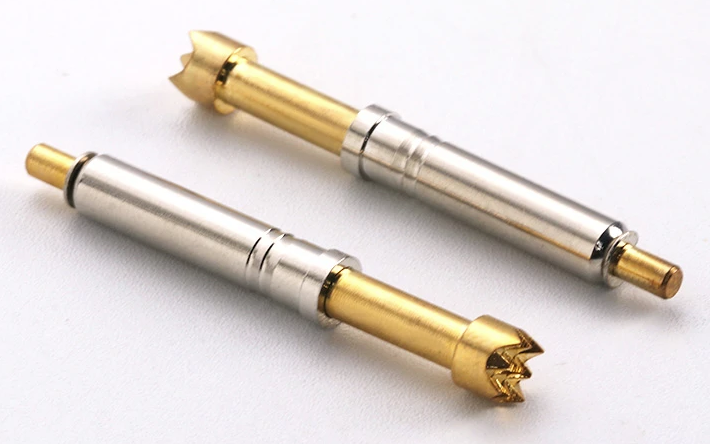

Generic PH-6H High Current Probe, Crown Tip

The PH-6H is a high-current spring-loaded test probe from the generic PH family, used where a standard signal probe cannot carry the load — power rails, battery and charger contacts, motor drives and any node that has to be forced with amps rather than milliamps during functional test.

PH-family probes are physically much larger than the P50/P75/P100 signal probes, with long travel and heavy springs so one probe can span a deep or uneven target such as a connector shell or a heavy terminal. The PH-6 designation sits above the PH-5 in the family, so expect a larger body and a correspondingly larger footprint and centre spacing than the PH-5 parts stocked alongside it. Treat it as a dedicated power contact: plan the fixture around it rather than scattering it through a signal grid, and use the letter suffix to pick the tip geometry that suits the target.

• Generic PH family, high-current construction; H tip variant on the PH-6 body
• Larger body than the PH-5 parts in the same family
• Longer travel and heavier spring than the P50/P75/P100 signal probes
• Intended for power rails, battery/charger contacts and other high-current nodes
• Sold per unit
