Dev Test Fixture Kit w/ Blank Plates

The Dev Test Fixture Kit with Blank Plates is FixturFab's build-it-yourself version of the Dev Test Fixture — the same desktop manual fixture, supplied with undrilled probe and pressure plates so you lay out and machine the probe field yourself. It is for engineers who want the mechanics solved and the board-specific work left open: the hinged closing action, the cartridge mount and the plate alignment all come finished, and only the hole pattern is yours to add.

That makes it the natural choice for in-house prototype and firmware work, where a board revision lands every few weeks and waiting on a machined plate costs more time than drilling one. It also works as a teaching and evaluation unit — a way to get hands on the Dev platform before committing a product to a fully specified fixture. When a design settles and you want the probe field laid out from the CAD data, drilled and populated for you, the same platform is available as a standard made-to-order Dev Test Fixture.

The probe field lives in a swappable Dev Cartridge, available in G10 or MDF, so the base is reused across products rather than consumed by one.

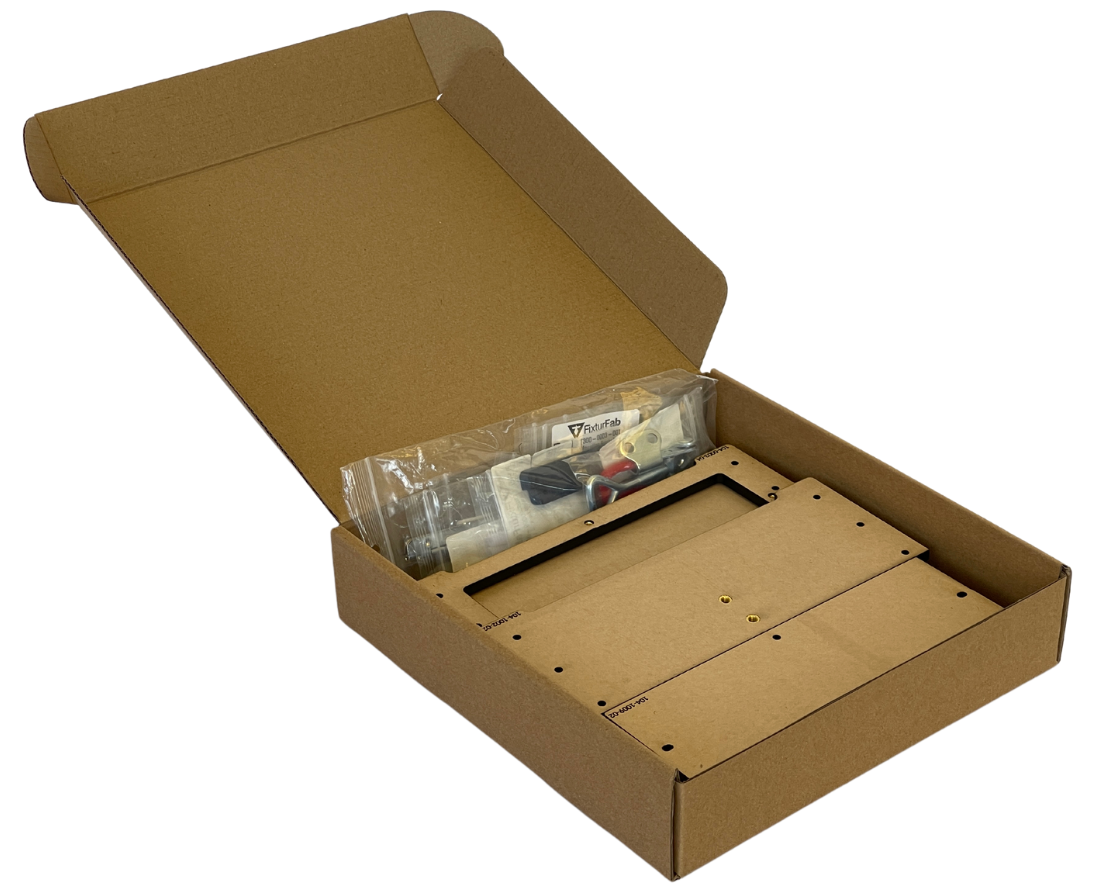

• FixturFab Dev Test Fixture platform, supplied with blank (undrilled) probe and pressure plates
• Desktop manual fixture with hinged closing action
• Useable area 196 × 180 mm; max. contact force 100 N
• Outer dimensions 206 × 200 × 132 mm
• Takes the Dev Cartridge in G10 or MDF
• Probe field drilled and populated by the customer
