Dev Pro XL Tall Test Fixture Base

Dev Pro XL Tall Test Fixture Base

Backordered

Regular price $999.99 USD
Regular price Sale price $999.99 USD
Sale Sold out

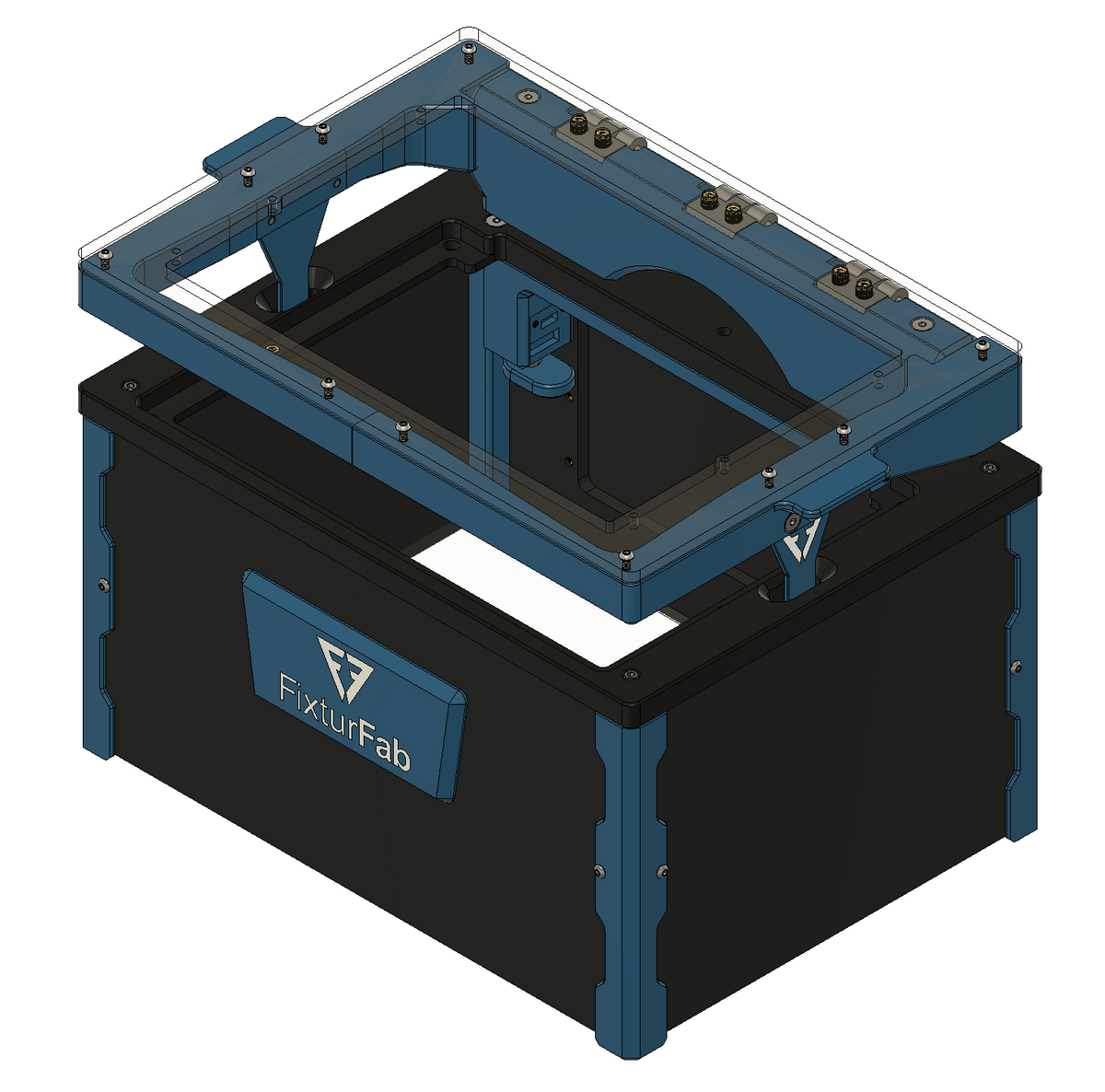

The Dev Pro XL Tall Test Fixture Base pairs the wide-format Dev Pro XL working area with the raised housing of the Tall variants. Useable area, contact force and cartridge interface are unchanged from the standard-height Dev Pro XL; the extra housing height is there to give the fixture's own electronics somewhere to live.

That combination suits the point at which a fixture stops being a passive jig and becomes a test station: a relay board, a power supply, a controller running the sequence and the loom that connects them, all inside the enclosure rather than trailing across the bench. Boards in the 232 × 151 mm class tend to carry enough interfaces to need exactly that.

Probing is single-sided from below, with limited top-side contacting available as an option, and the board-specific probe field lives in a swappable Dev Pro XL cartridge.

  • Useable area 232 × 151 mm
  • Max. contact force 150 N; manual closing
  • Raised housing with extra internal height for instrumentation, wiring and test electronics
  • Single-sided (bottom) probing; limited top-side contacting available as an option
  • Rated 25 VAC / 60 VDC
  • Takes the Dev Pro XL Cartridge in G10 or MDF
  • Footprint 329 × 224 mm
Datasheets and 3D models (opens in a new tab)

Opens part 206-000009 in the FixturFab parts library.

View full details
