Dev Pro XL Tall Carbon Test Fixture Base

Dev Pro XL Tall Carbon Test Fixture Base

Backordered

Regular price $1,199.99 USD
Regular price Sale price $1,199.99 USD
Sale Sold out

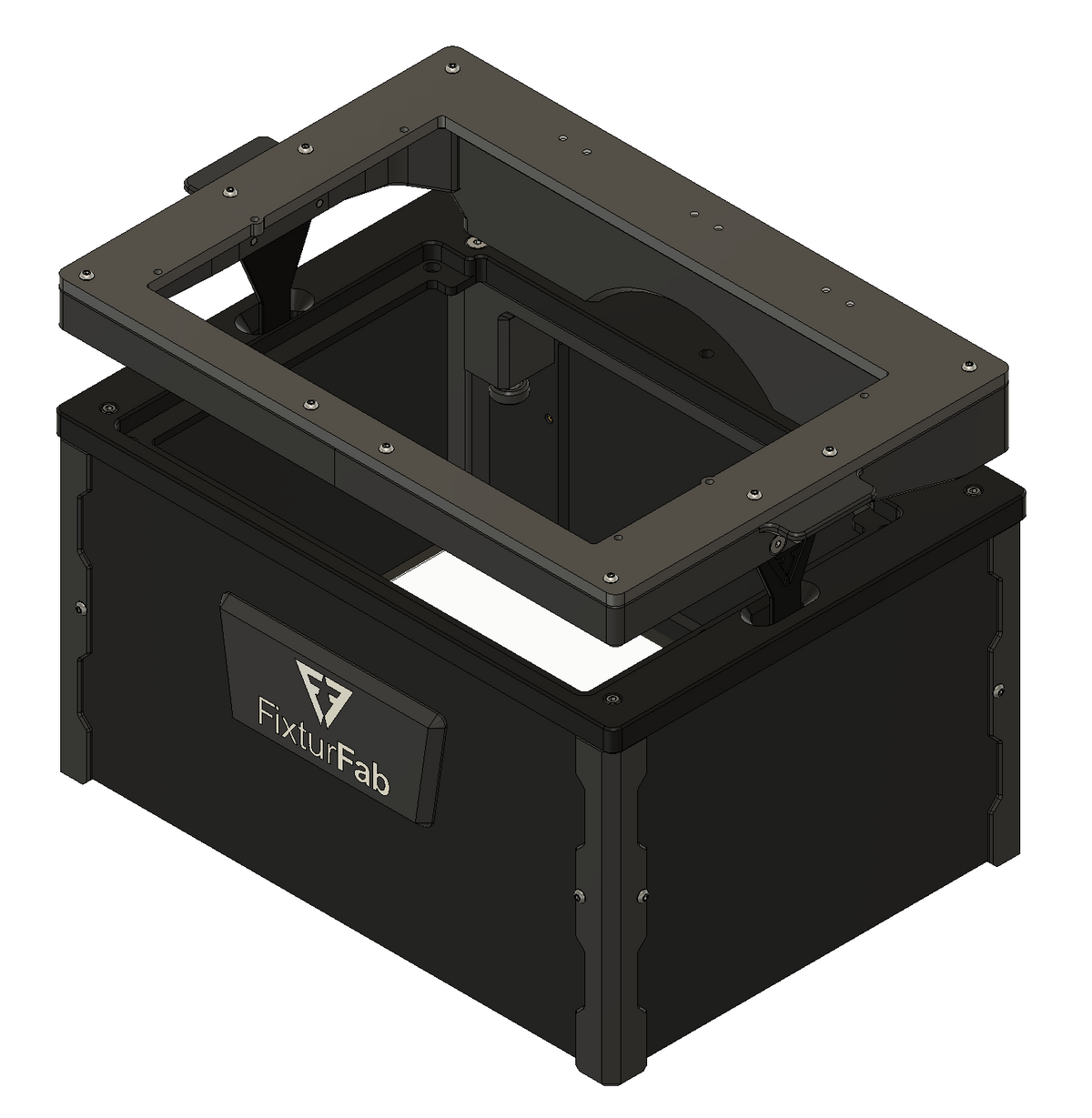

The Dev Pro XL Tall Carbon Test Fixture Base is the fully-specified wide-format base in FixturFab's desktop range: the Dev Pro XL working area, the raised housing of the Tall variants, and the reinforced Carbon structure — carbon-reinforced 3D printed components carrying an aluminium pressure frame.

Each upgrade answers a different constraint. The XL footprint takes boards that will not fit a standard Dev Pro. The raised housing gives relay boards, supplies, a controller and their wiring somewhere to live inside the fixture. The Carbon structure keeps a large pressure frame stiff under 150 N, so probes at the corners of the working area see the same engagement as those in the middle — which is what keeps a fixture from producing intermittent failures once it starts running every day.

As with every base in the range, the board-specific probe field lives in a swappable Dev Pro XL cartridge, so the base outlives any single product.

  • Useable area 232 × 151 mm
  • Max. contact force 150 N; manual closing
  • Carbon-reinforced 3D printed structure with an aluminium pressure frame
  • Raised housing with extra internal height for instrumentation, wiring and test electronics
  • Single-sided (bottom) probing; limited top-side contacting available as an option
  • Rated 25 VAC / 60 VDC
  • Takes the Dev Pro XL Cartridge in G10 or MDF
  • Footprint 329 × 224 mm
