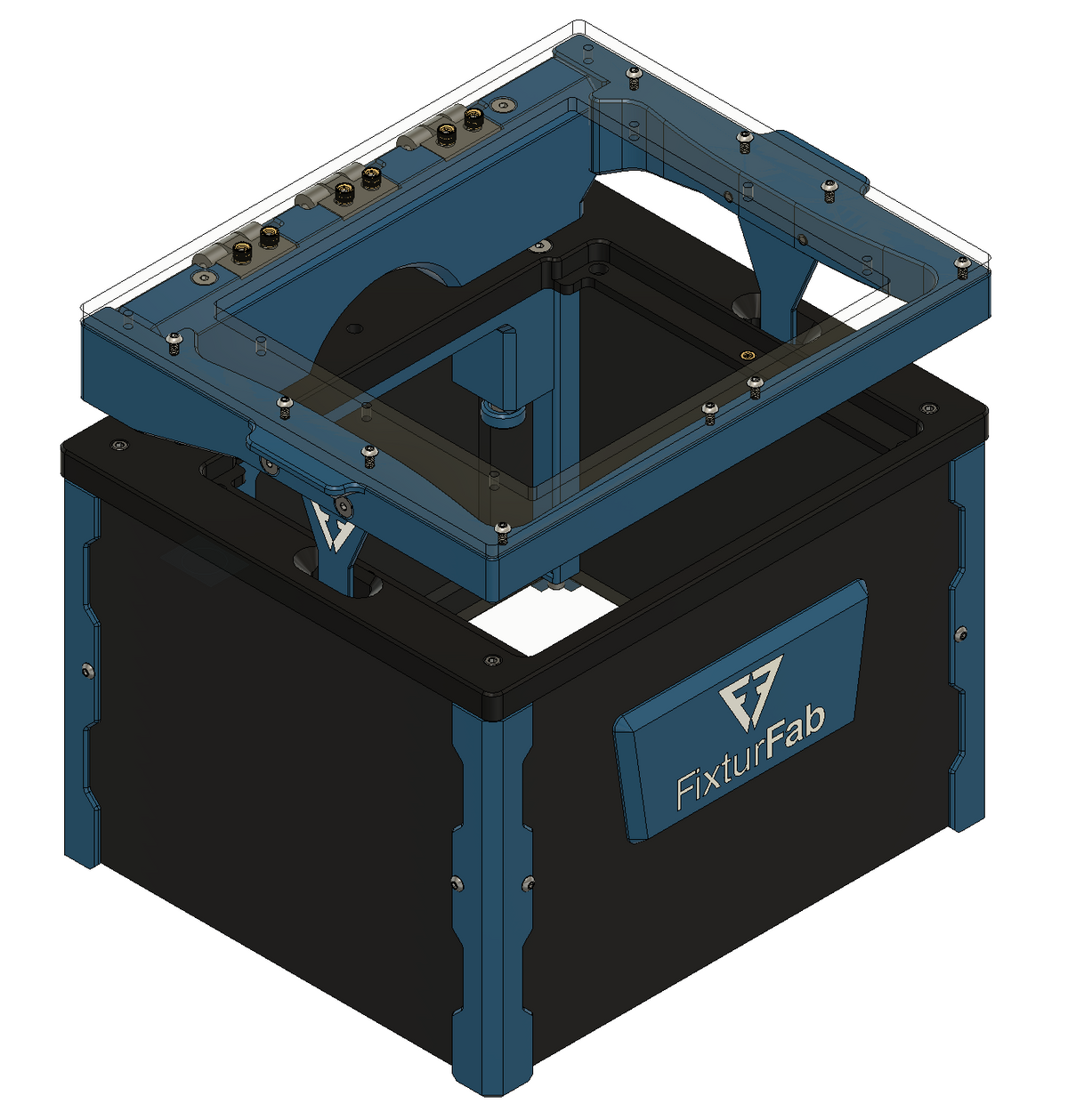

Dev Pro Tall Test Fixture Base

The Dev Pro Tall Test Fixture Base is the standard Dev Pro raised to a 302 mm overall height. Useable area, contact force and cartridge interface are unchanged — the extra height is volume, and it exists for one reason: to give the fixture somewhere to put its own electronics.

Bench fixtures rarely stay purely mechanical for long. A relay board, a USB hub, a power supply, a microcontroller running the test sequence, the loom that connects them all — on a short base that hardware ends up taped to the outside or trailing across the desk. The Tall base brings it inside the fixture, which makes the assembly portable, tidier to cable and far less likely to be disturbed between runs.

Choose it when the fixture is becoming a self-contained test station rather than a passive jig; choose the standard-height Dev Pro when bench height and storage volume matter more.

• Useable area 170 × 145 mm
• Max. contact force 150 N; manual closing
• Extra internal height for instrumentation, wiring and test electronics
• Single-sided (bottom) probing; limited top-side contacting available as an option
• Rated 25 VAC / 60 VDC
• Takes the Dev Pro Cartridge in G10 or MDF
• Outer dimensions 255 × 208 × 302 mm
