Dev Pro Carbon Tall Test Fixture Base

Dev Pro Carbon Tall Test Fixture Base

Backordered

Regular price $1,099.99 USD
Regular price Sale price $1,099.99 USD
Sale Sold out

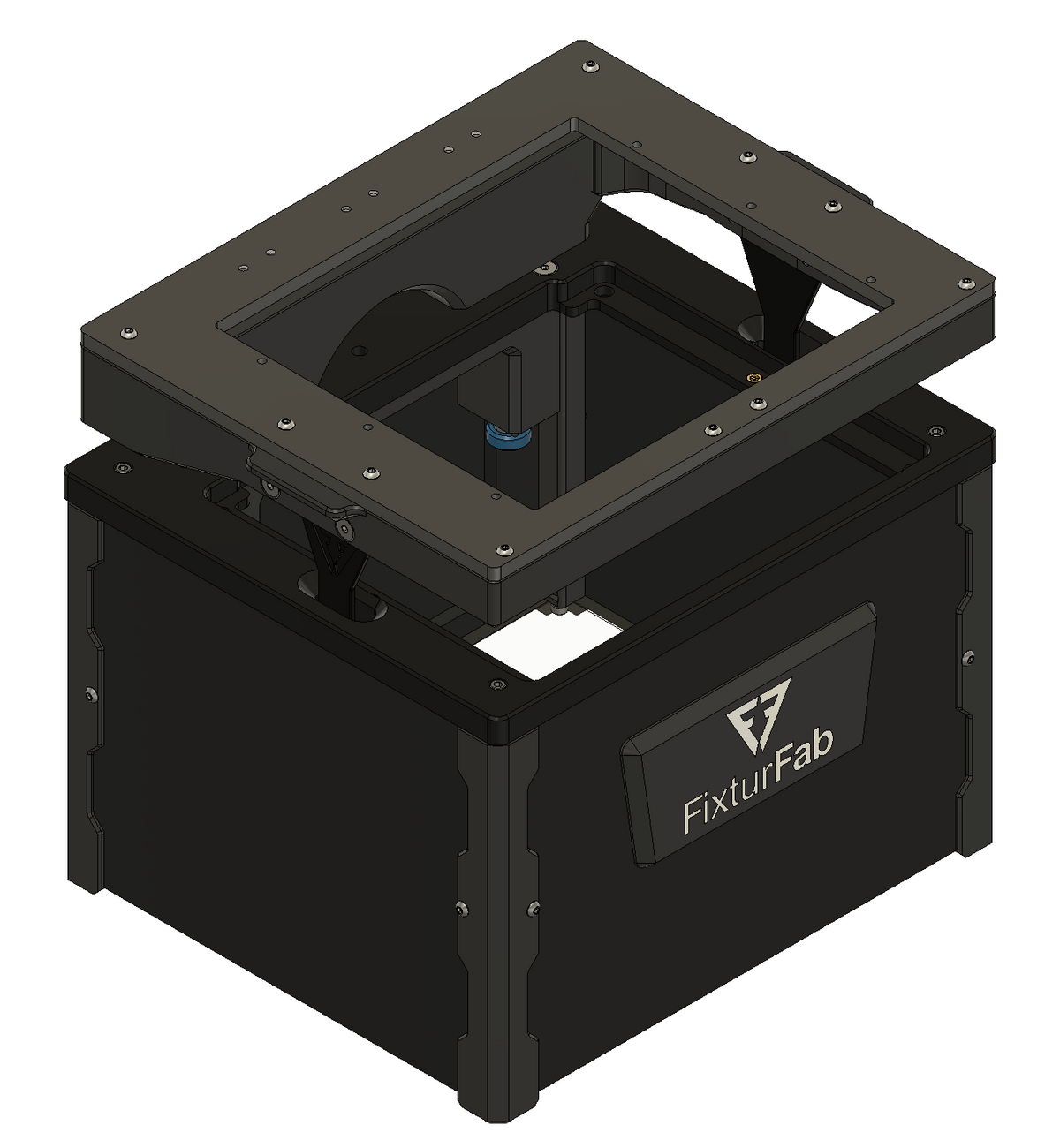

The Dev Pro Tall Carbon Test Fixture Base is the top of the standard-size Dev Pro range: the raised 302 mm housing of the Tall variant built with FixturFab's reinforced Carbon structure — carbon-reinforced 3D printed components carrying an aluminium pressure frame.

The two upgrades solve different problems, and this base is for fixtures that have both. The tall housing gives the instrumentation — relay boards, power supplies, a controller, the loom that ties them together — somewhere to live inside the fixture instead of trailing across the bench. The Carbon structure keeps the frame stiff under 150 N so probe travel and contact force stay repeatable as the cycle count climbs.

Together they describe a self-contained test station that runs every day, rather than a jig that comes out occasionally. The board-specific probe field still lives in a swappable Dev Pro cartridge, so the base outlives any single product.

  • Useable area 170 × 145 mm
  • Max. contact force 150 N; manual closing
  • Carbon-reinforced 3D printed structure with an aluminium pressure frame
  • Extra internal height for instrumentation, wiring and test electronics
  • Single-sided (bottom) probing; limited top-side contacting available as an option
  • Rated 25 VAC / 60 VDC
  • Takes the Dev Pro Cartridge in G10 or MDF
  • Outer dimensions 255 × 208 × 302 mm
Datasheets and 3D models (opens in a new tab)

Opens part 206-000007 in the FixturFab parts library.

View full details
