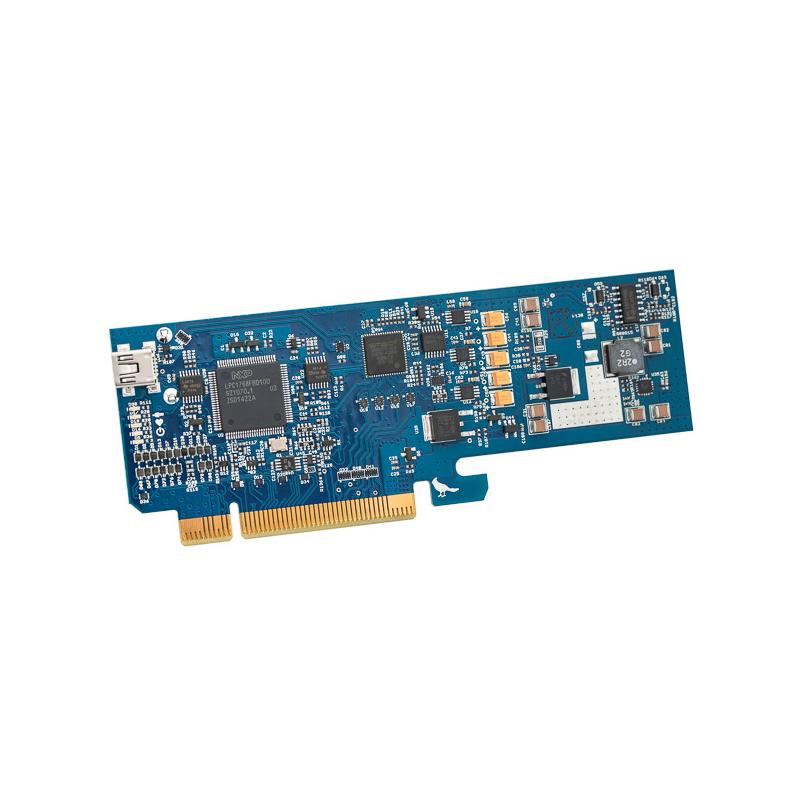

Acroname MTM-IO-SERIAL
Acroname MTM-IO-SERIAL
Software-Controlled USB Hub, GPIO & Serial Communications for Automated Test
The Acroname MTM-IO-Serial combines programmable USB switching, adjustable-voltage GPIO, and serial UART interfaces in one rugged module. Test devices across multiple voltage rails, communicate over USB or serial, and control it all through the BrainStem API—ideal for automated functional test systems that need flexible digital I/O and communications.
Key Specifications
USB Hub
- 4 USB 2.0 downstream ports
- Software-controlled Hi-Z disable per port
GPIO
- 2 banks of 4 adjustable-rail GPIO ports (8 total)
- Voltage rails software-adjustable from 1.65V to 5.0V
High-Current Outputs
- 1 fixed 5.0V output (current limited to 100mA)
- 2 independent adjustable outputs: 1.65V to 5.0V (current limited to 100mA each)
Serial Communications
- 4 adjustable-rail serial UART ports (2 per voltage rail)
- Software-controlled Hi-Z disable per port
System Interface
- 1 BrainStem I2C FM+ bus (1 Mbit/s)
Why Choose the MTM-IO-Serial?
Multi-Voltage Device Testing
Test devices running at different logic levels without hardware changes. Software-adjustable voltage rails (1.65V–5.0V) let you switch between 1.8V, 3.3V, and 5V devices on the fly.
Programmable USB Control
Isolate or enable USB ports under software control. Perfect for USB device enumeration testing, power cycling, and fault injection scenarios.
Flexible Serial Communication
Four UART ports with adjustable voltage levels handle serial communication with a wide range of embedded devices. Hi-Z disable prevents bus conflicts during test sequences.
Production-Ready Durability
Part of Acroname's Manufacturing Test Module (MTM) series, ruggedized for CM and OEM environments worldwide. Designed for 0°C to 70°C operation without external cooling.
Seamless MTM Integration
Connects to the BrainStem I2C network alongside other MTM modules. Control via host PC using the BrainStem API (C++, Python) or run standalone embedded programs.
Ideal Applications
- USB device enumeration and power cycling tests
- Multi-voltage embedded device testing
- Serial UART communication with DUTs
- GPIO control and monitoring in automated test
- Mixed-voltage functional test systems
- Production line device programming and verification
What's in the Box
- MTM-IO-Serial Module
Technical Resources
- BrainStem SDK (C++, Python) — free download from Acroname
- CAD files (STEP, IGES) available
- Detailed datasheet with full specifications
Manufacturer: Acroname Inc. (Boulder, CO, USA)
SKU: S62-MTM-IO-SERIAL
