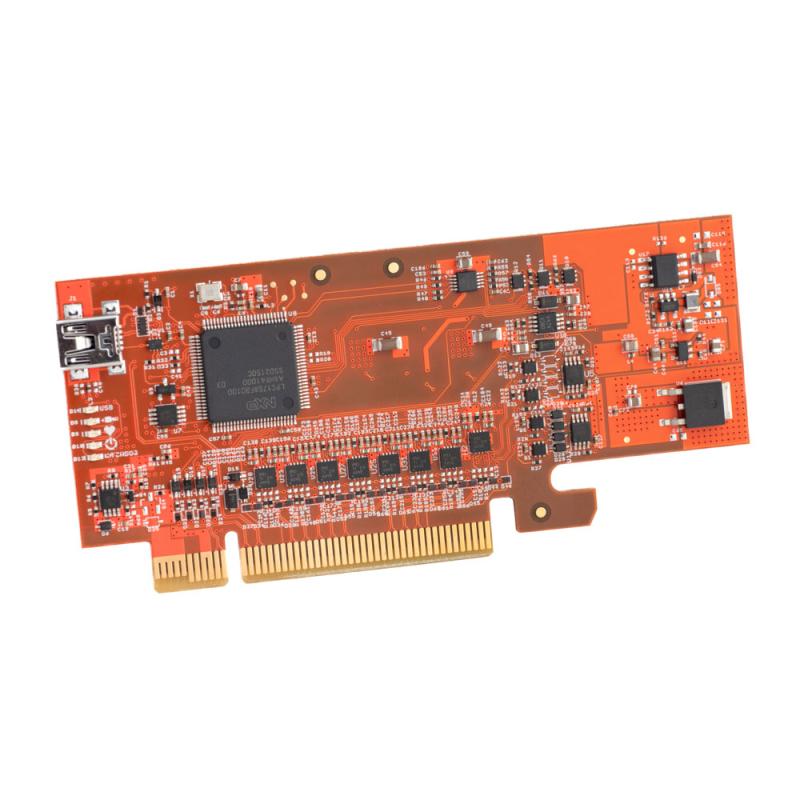

Acroname MTM-DAQ-2

The Acroname MTM-DAQ-2 (S92-MTM-DAQ-2) is the precision analog measurement module of the Manufacturing Test Module (MTM) system. It gives a functional-test fixture 16 differential, bipolar 16-bit input channels, so rail voltages, divider taps, sensor outputs and analog trim points across a board can all be swept from one host script instead of being patched to a bench meter one probe at a time.

Fourteen of the channels take a selectable range from ±640 mV up to ±10.24 V; the remaining two add programmable gain down to ±64 mV for low-level signals such as shunt and bridge outputs. Two 12-bit analog outputs let the same module supply a stimulus or reference while it measures. Specify the DAQ-2 over the analog inputs built into a link module when the test needs real resolution, differential inputs, or channel count; where the measurement has to be traceable, Acroname sells a NIST calibration certificate (Y92) for this module separately.

• 14 differential bipolar input channels, 16-bit, ranges ±640 mV to ±10.24 V
• 2 differential bipolar input channels, 16-bit, programmable gain ±64 mV to ±10.24 V
• Two independent ADCs
• 2 analog output channels, 12-bit; ranges 0–2.048 V, 0–4.096 V or ±10.24 V
• 2 digital GPIO with overvoltage, short-circuit and overcurrent protection
• Operating range 0 °C to 70 °C ambient
• Controlled over the BrainStem bus from an MTM link module
