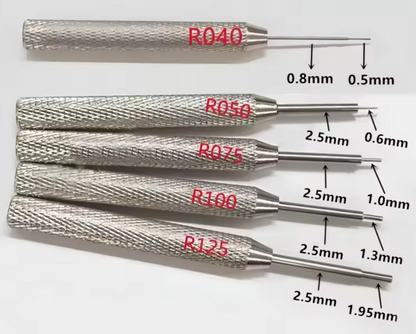

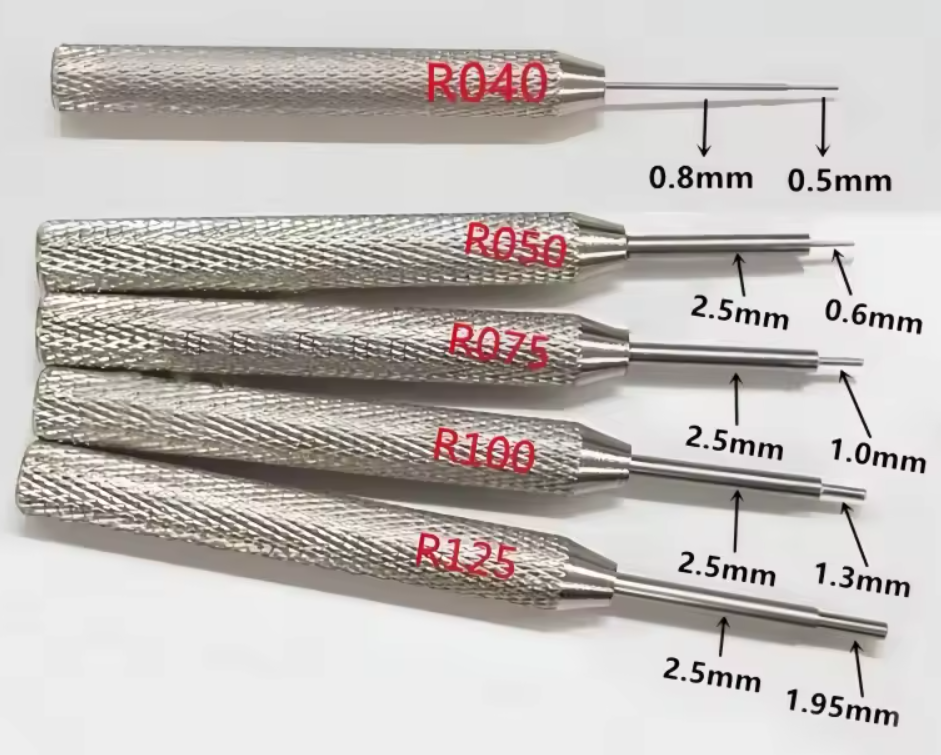

Purpose-built insertion tool for installing press-fit receptacles on 0.050" (1.27mm) grid spacing. The slim-profile tip clears adjacent receptacles without interference, ensuring accurate installation in high-density test fixtures.
How It Works

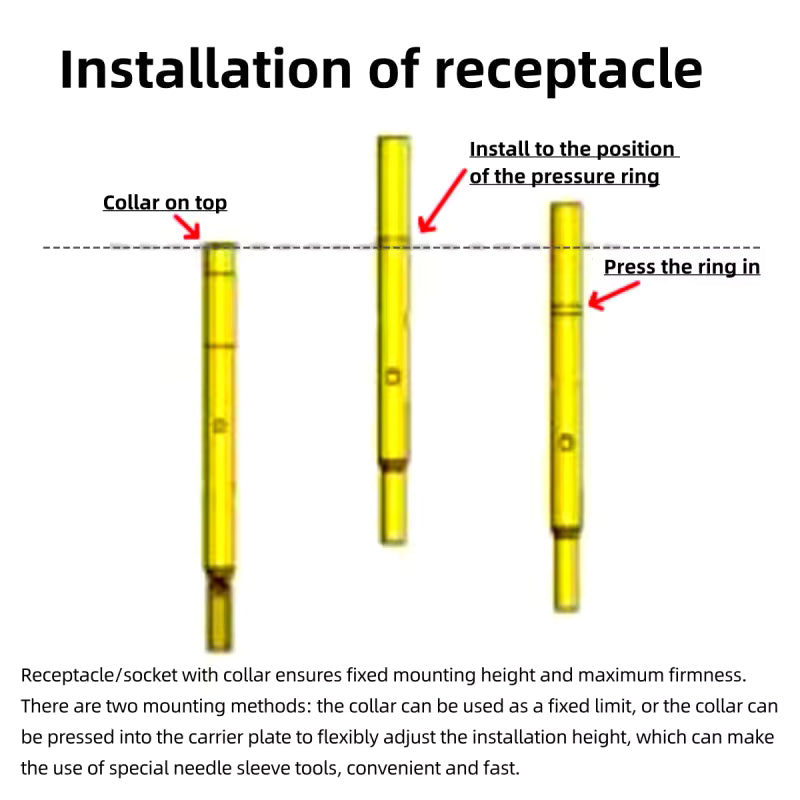

Place the receptacle into the mounting hole with the termination side down until the press ring contacts the plate surface. Insert the nose of this tool over the top of the receptacle and lightly tap with a small hammer until the tool nose contacts the mounting plate. Use several light taps rather than a single blow—this provides at least double the pushout retention force.
Features
Sized specifically for 50mil (0.050") center-to-center spacing
Stainless steel tip
Sets receptacles flush to the mounting plate surface
Knurled aluminum handle for comfortable, non-slip grip
Compatible With
Standard 50mil press-fit receptacles
Recommended Accessories
Small installation hammer
50mil receptacle extraction tool for socket removal
Tip: For best results, use several light taps rather than one hard strike. This seats the receptacle squarely and significantly increases retention in the mounting plate.
