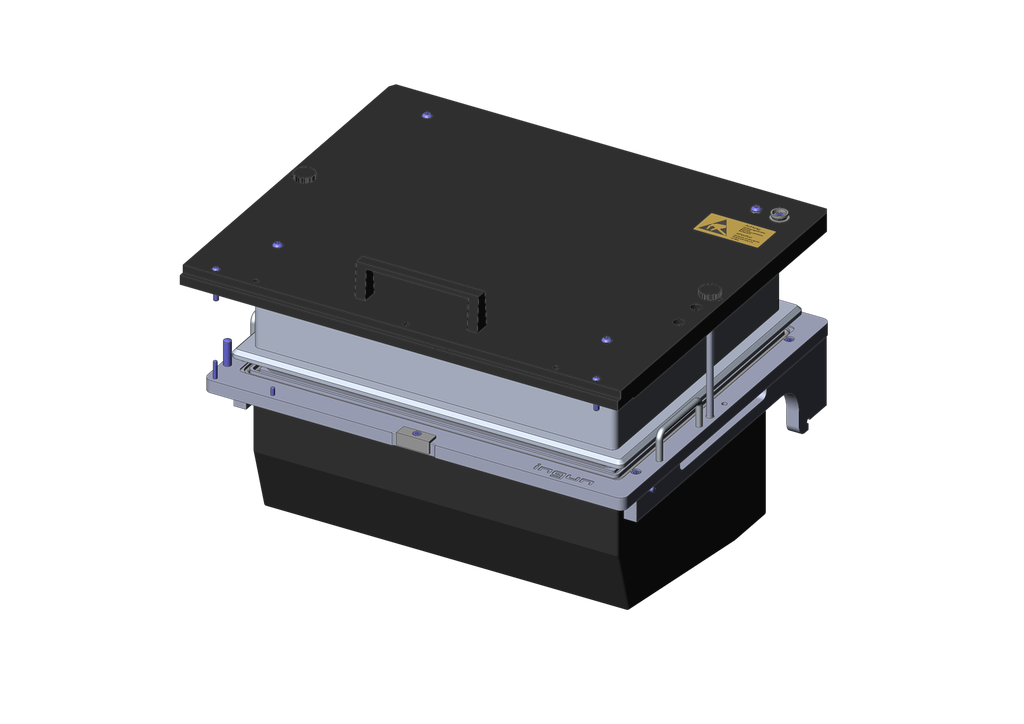

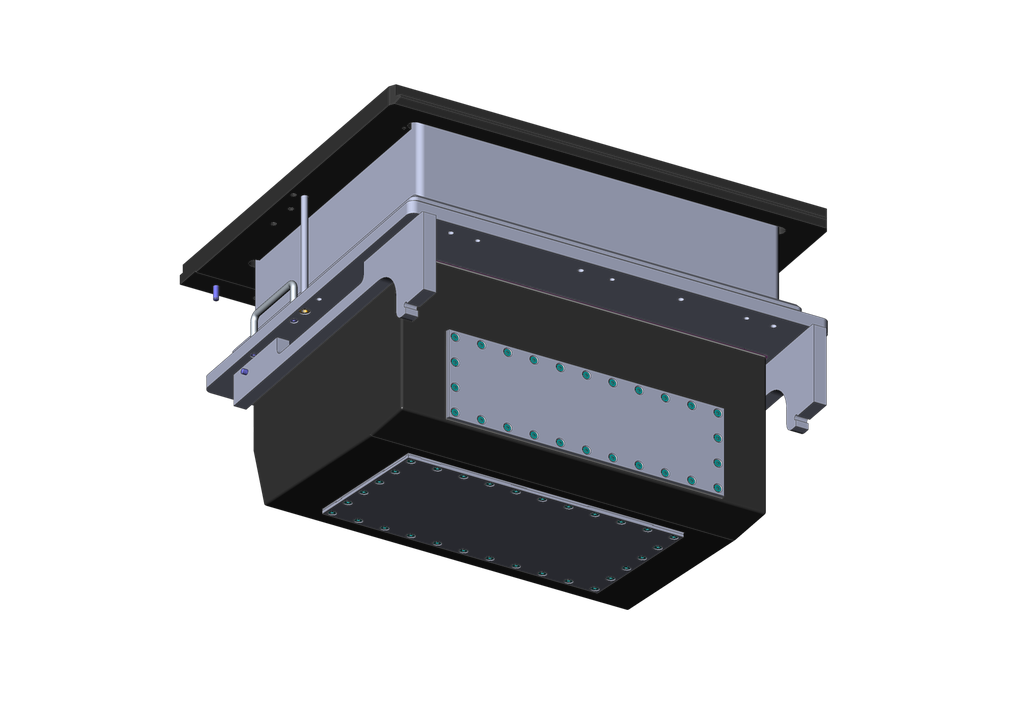

Ingun ATS MA12/HF/AL/ESD

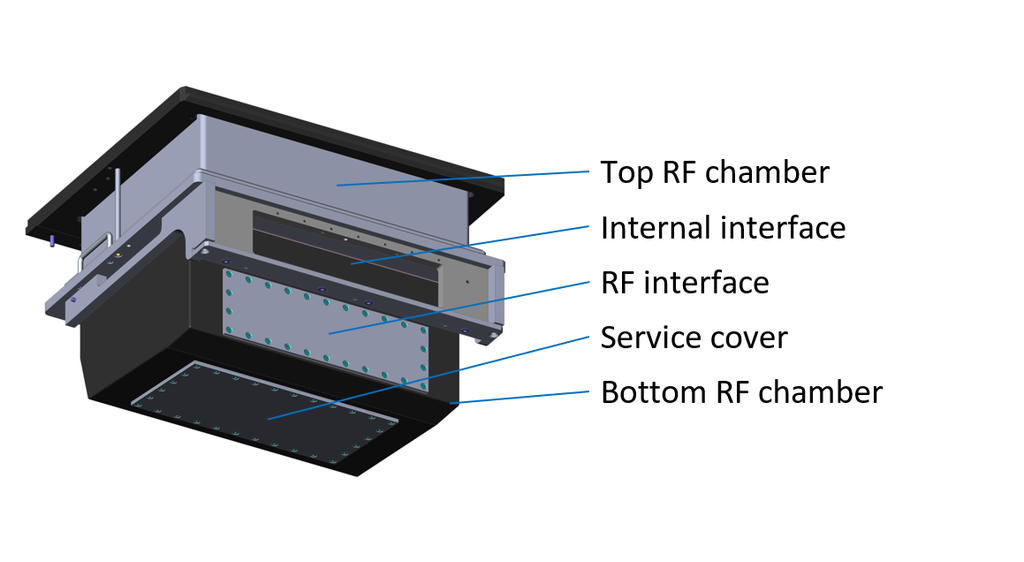

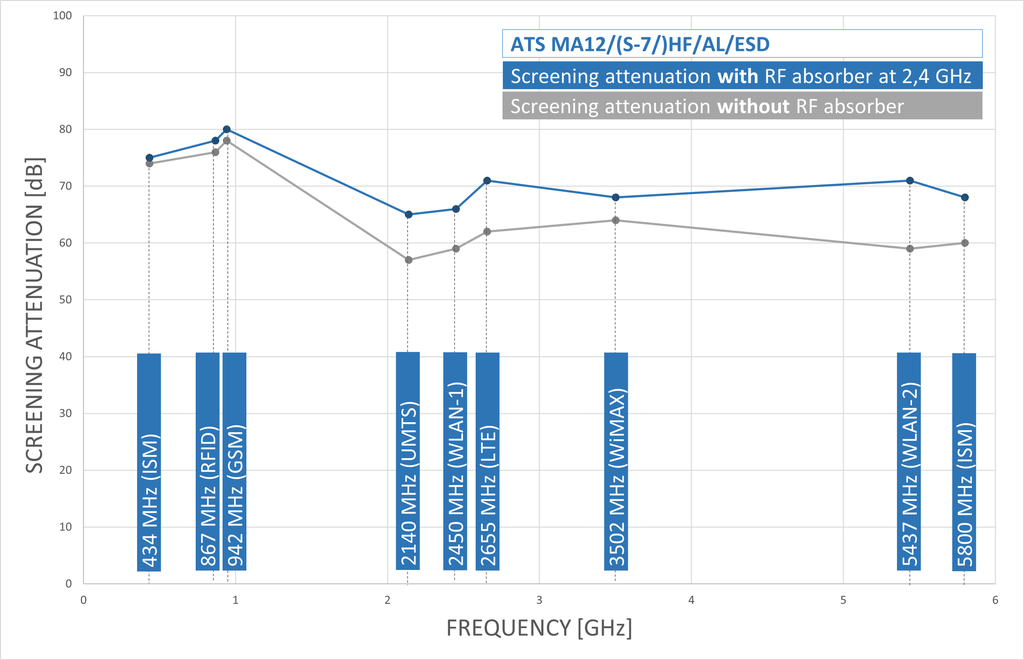

RF Shielded Ingun MA12 Cartridge for reliable, interference-free radio frequency contacting and measurement of radio frequency signals. Maximum DUT size of 220 x 180mm. Outstanding shielding attenuation >60dB in the frequency range up to 6GHz.
Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 220 x 180mm
Outer Dimensions: 350 x 313 x 255 mm
Weight: 9.37kg
