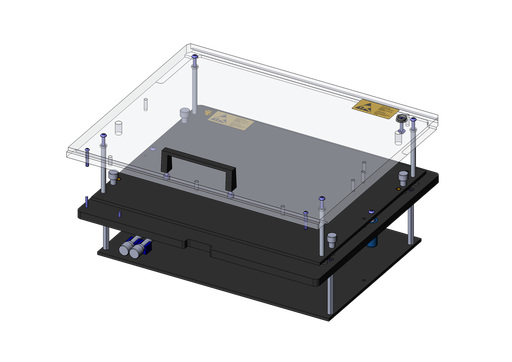

Standard Ingun MA12 Cartridge. Maximum DUT size of 285 x 240mm.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 285 x 240mm
Outer Dimensions: 305 x 307 x 197mm
Weight: 4.8kg

Standard Ingun MA11 Cartridge. Maximum DUT size of 150 x 240mm.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 150 x 240mm
Outer Dimensions: 210 x 307 x 197mm
Weight: 2.75kg

A stock test fixture cartridge manufactured by FixturFab. Base sold separately.

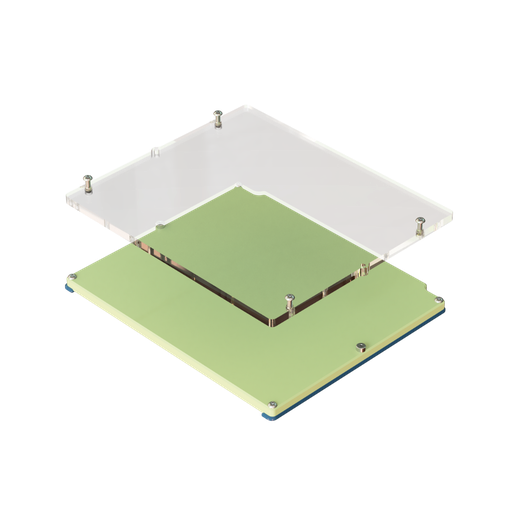

Dev Pro Cartridge with a G10 Probe Plate. Maximum DUT size of 170 x 145mm. Rated for 10k cycles. Base sold separately.

Top Probing: Yes
Side Probing: No*
Pressure Pin Length: 35mm
Free Space Above DUT: 33mm
Useable Area (WxD): 170 x 145mm
Outer Dimensions: 187 x 157 x 63mm
Weight: 0.7kg

A stock test fixture cartridge manufactured by FixturFab. Base sold separately.

A stock test fixture cartridge manufactured by FixturFab. Base sold separately.

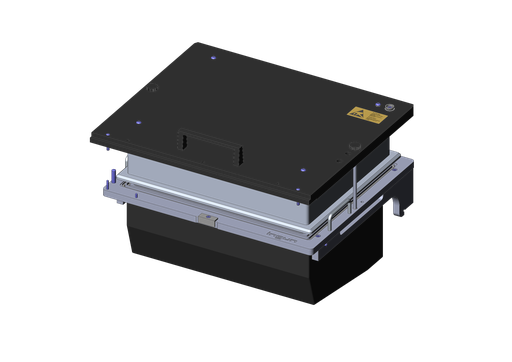

ESD Ingun MA11 Cartridge. Maximum DUT size of 285 x 240mm. Includes a probe plate with an ESD dissipative coating for testing sensitive devices.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 285 x 240mm
Outer Dimensions: 305 x 307 x 197mm
Weight: 4.8kg

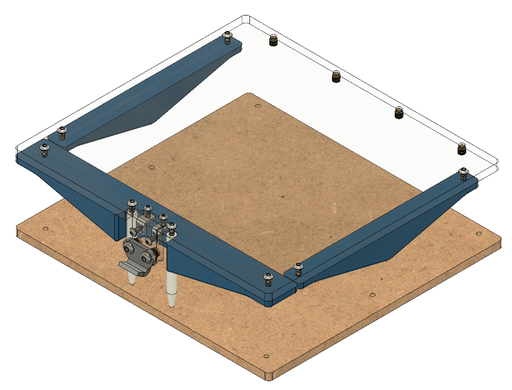

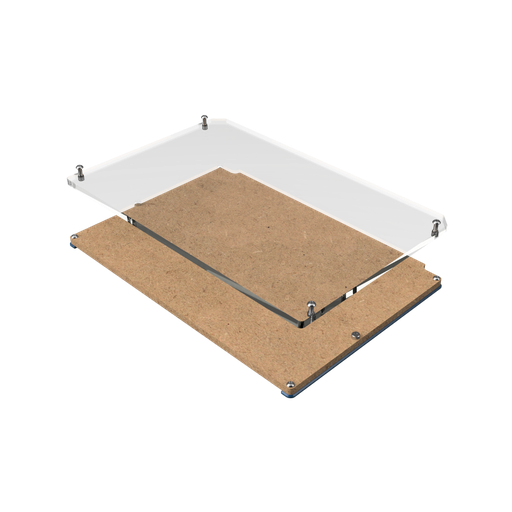

Dev Pro Cartridge with a MDF Probe Plate. Maximum DUT size of 170 x 145mm. Rated for 1k cycles. Base sold separately.

Top Probing: Yes
Side Probing: No*
Pressure Pin Length: 35mm
Free Space Above DUT: 33mm
Useable Area (WxD): 170 x 145mm
Outer Dimensions: 187 x 157 x 63mm
Weight: 0.5kg

*Manually connection of cables to right angle connectors is supported. No automated side probing is supported.

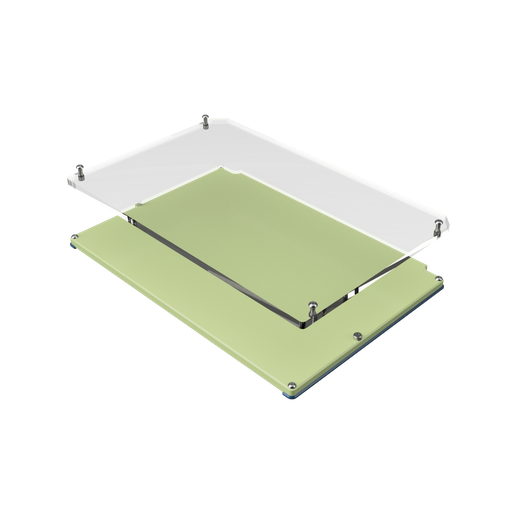

Dev XL Cartridge. Maximum DUT size of 447 x 218mm. Rated for 1k cycles.

Top Probing: Yes
Side Probing: No*
Pressure Pin Length: 45mm
Free Space Above DUT: 43mm
Useable Area (WxD): 196 x 180mm
Outer Dimensions: 206 x 188 x 62mm
Weight: 0.5kg

*Manually connection of cables to right angle connectors is supported. No automated side probing is supported.

RF Shielded Ingun MA12 Cartridge for reliable, interference-free radio frequency contacting and measurement of radio frequency signals. Maximum DUT size of 220 x 180mm. Outstanding shielding attenuation >60dB in the frequency range up to 6GHz.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 220 x 180mm
Outer Dimensions: 350 x 313 x 255 mm
Weight: 9.37kg
