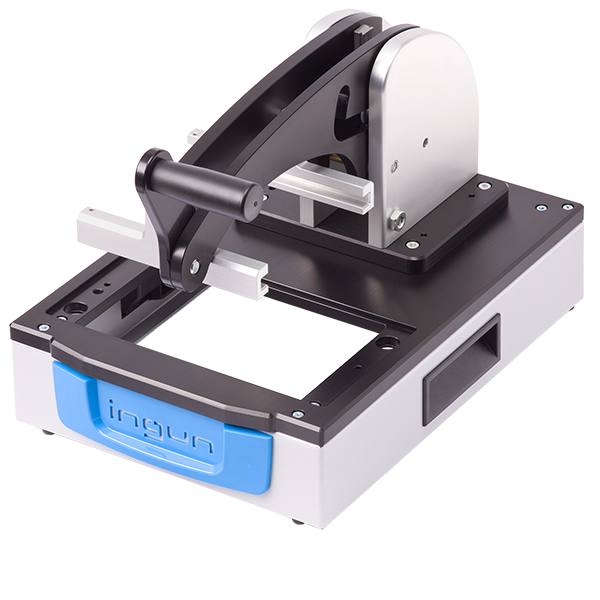

Ingun MA 360/F Fixture Base

https://shop.fixturfab.com/web/image/product.template/9009/image_1920?unique=49d7dc8

Standard Ingun MA360 Fixture Base. Maximum DUT size of 160 x 100mm.

Useable Area (WxD): 160 x 100mm
Outer Dimensions, Open: 230 x 330 x 381 mm
Outer Dimensions, Closed: 230 x 365 x 251 mm
Free Space Above DUT: 58mm
Max Contact Force: 300N
Parallel Contact Stroke: 20mm
Weight: 4.89kg

1,284.99 1284.99 USD 1,284.99

1,284.99

Not Available For Sale

This combination does not exist.

Shipping: 2-3 Business Days
