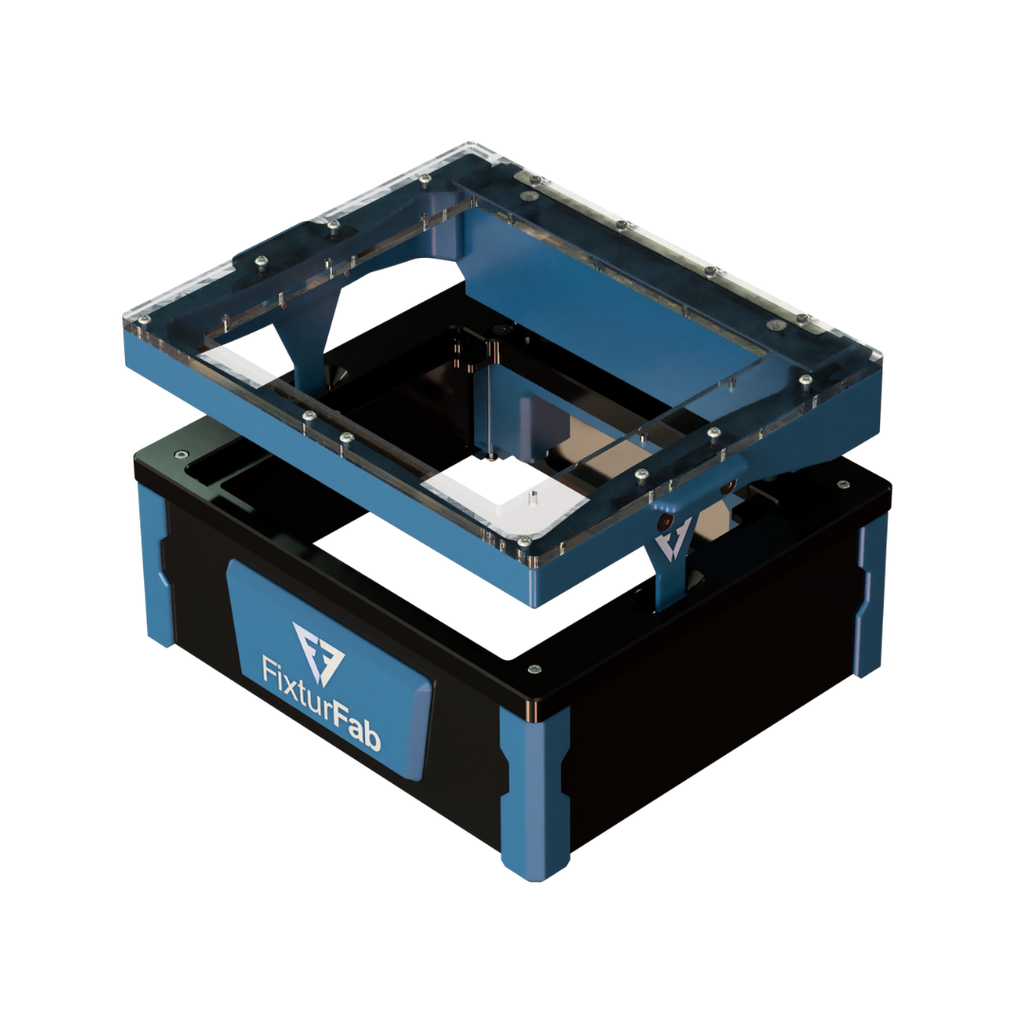

Dev Pro Test Fixture Base

https://fixturfab.odoo.com/web/image/product.template/8730/image_1920?unique=e11bbc6

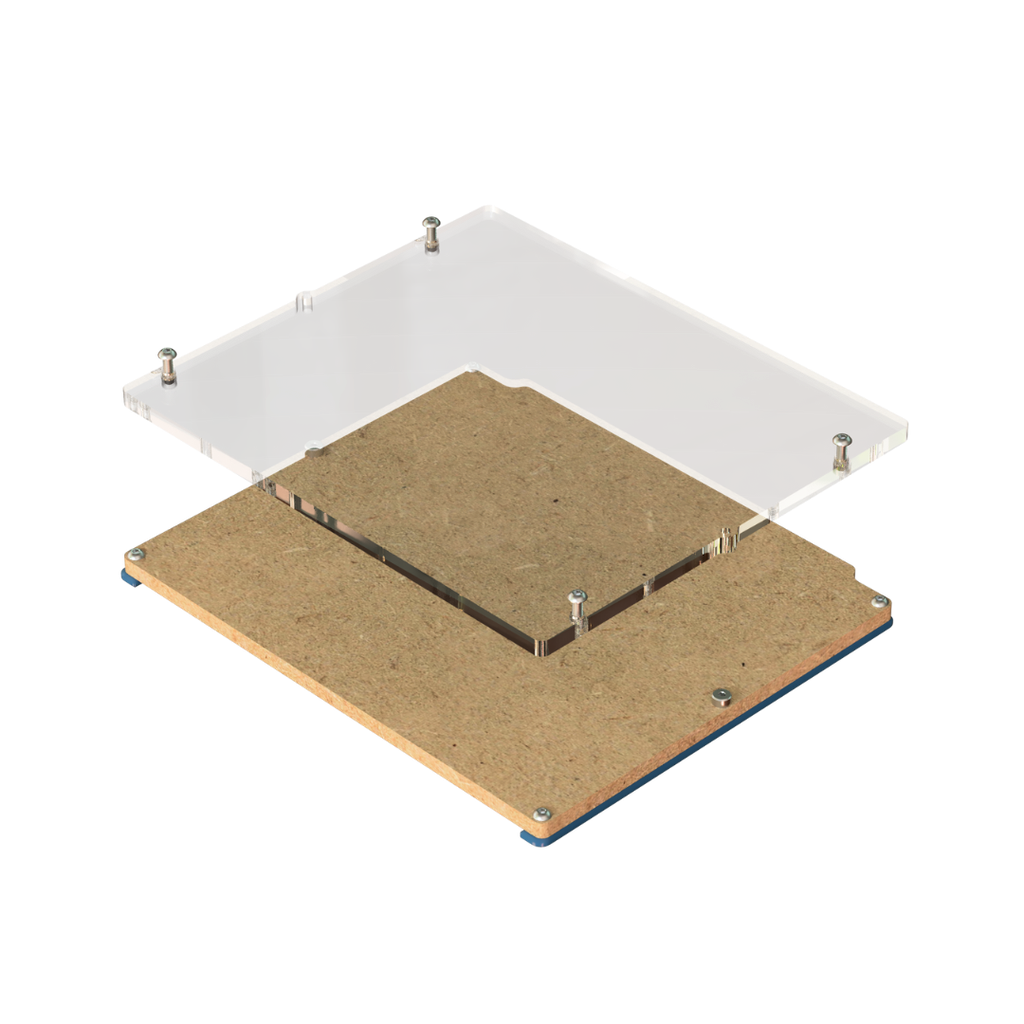

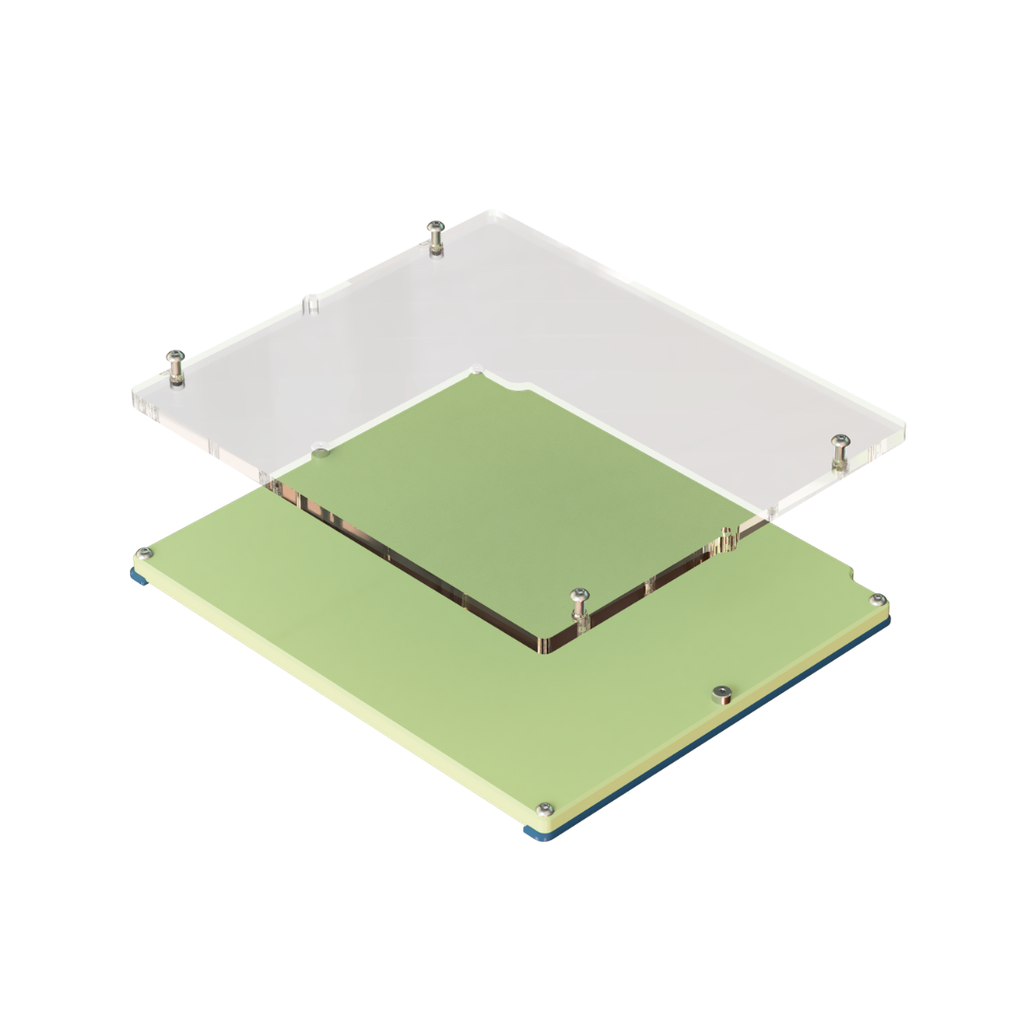

A stock test fixture base manufactured by FixturFab. Cartridge sold separately.

Specifications
Maximum Board Size: 170mm x 145mm (6.69in x 5.71in)
Maximum Test Points: 200
Service Life: 5K+ Units
Exchangeable Cartridge Support: Yes
Top Probing Support: Some
Side Probing Support: No
Weight: 1.8kg (4lbs)
Materials: Acetal, Acrylic, & PETG

The web store price is for a stock, off-the-shelf product.

Scroll down for details on how to get a price to customize this.

799.00 799.0 USD 799.00

799.00

Not Available For Sale

This combination does not exist.

Shipping: 2-3 Business Days

Want a customized Dev Pro? ↓

Designed to Order.

FixturFab can suggest a starting point and help plan your testing by answering a few quick questions.


Configure a Test Fixture

Customized Dev Pro Test Fixtures

Estimated starting prices and lead-times are for a test fixture with 50 single-sided test points with bare test probe receptacles.

Starting Price

  • New Test Fixture
    $2,000
  • Replica Test Fixture
    $1,500
  • New Exchangeable Cartridge
    $900

Starting Lead Time

  • New Test Fixture
    2 Weeks
  • Replica Test Fixture
    2 Weeks
  • New Exchangeable Cartridge
    2 Weeks
