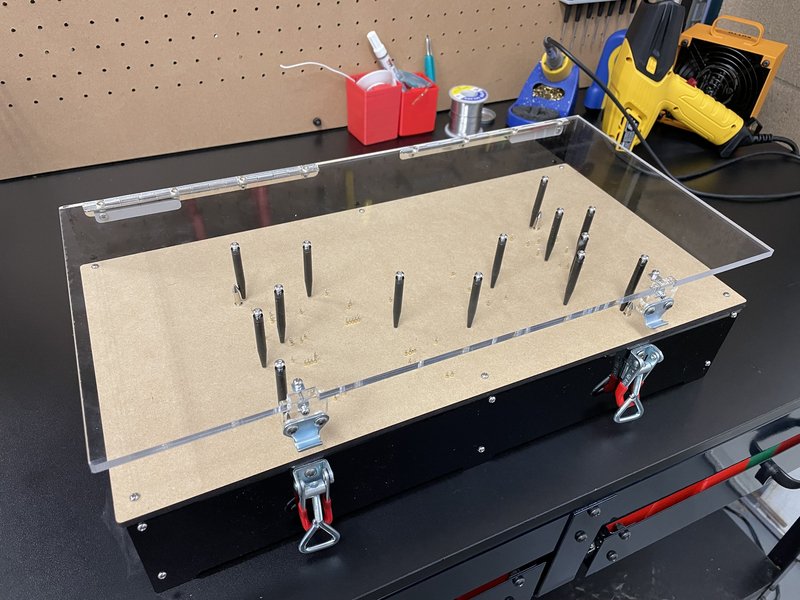

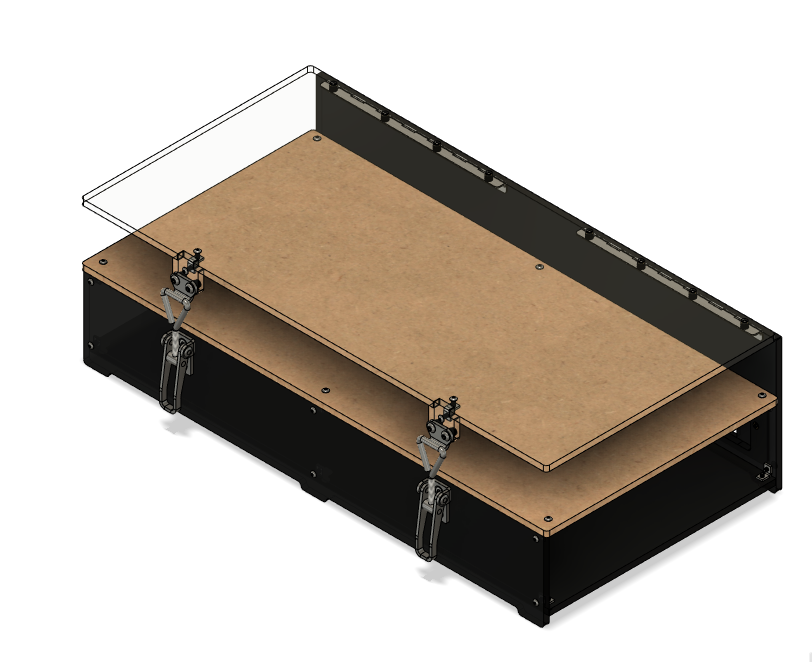

Dev XL Test Fixture Base

https://fixturfab.odoo.com/web/image/product.template/8434/image_1920?unique=8015bec

A stock test fixture base manufactured by FixturFab.

Specifications

Maximum Board Size: 218mm x 447mm (8.58in x 17.60in)

Maximum Test Points: 200

Service Life: 1K+ Units

Exchangeable Cartridge Support: No

Top Probing Support: No

Side Probing Support: No

Weight: 2.8kg (6lbs)

Materials: Acrylic & MDF

The web store price is for a stock, off-the-shelf product.
Scroll down for details on how to get a price to customize this.

199.00 199.0 USD 199.00

199.00

Not Available For Sale

This combination does not exist.

Shipping: 2-3 Business Days

Want a customized Dev XL Test Fixture? ↓

Designed to Order.

FixturFab can suggest a starting point and help plan your testing by answering a few quick questions.


Configure a Test Fixture

Customized DEV2112 Development Test Fixtures

Estimated starting prices and lead-times are for a test fixture with 50 single-sided test points with bare test probe receptacles.

Starting Price

  • New Test Fixture
    $1,099
  • Replica Test Fixture
    $549
  • Replica Test Fixture Kit
    $274

Starting Lead Time

  • New Test Fixture
    2 Weeks
  • Replica Test Fixture
    2 Weeks
  • Replica Test Fixture Kit
    2 Weeks
