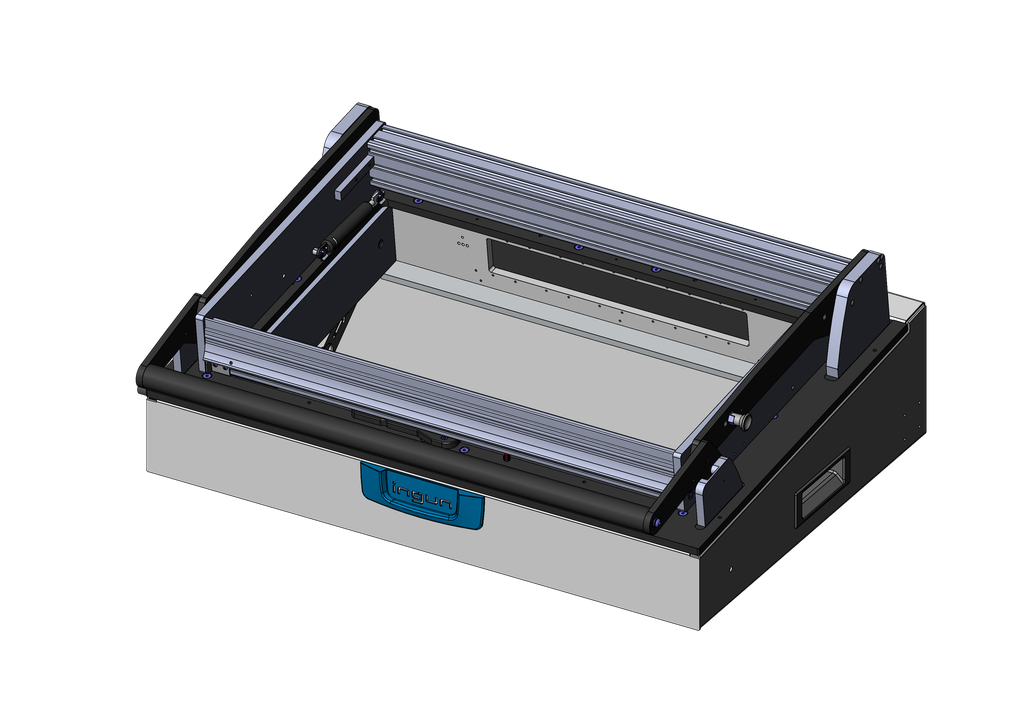

Ingun MA 2114/D/H/S-10 Test Fixture Base

https://shop.fixturfab.com/web/image/product.template/8151/image_1920?unique=3988f38

A stock test fixture base from Ingun. Cartridge sold separately.

Specifications

Maximum Board Size: 540mm x 310mm (21.26in x 12.20in)

Maximum Test Points: 930

Service Life: 500K+

Exchangeable Cartridge Support: Yes

Top Probing Support: Yes

Side Probing Support: Yes

Weight: 20.0kg (43lbs)

Materials: Steel, Aluminium, Acrylic

The web store price is for a stock, off-the-shelf product.

Scroll down for details on how to get a price to customize this.

3,006.12 3006.12 USD 3,006.12

3,006.12

Not Available For Sale

This combination does not exist.

Shipping: 2-3 Business Days

Want a customized production test fixture? ↓

Designed to Order.

FixturFab can suggest a starting point and help plan your testing by answering a few quick questions.


Configure a Test Fixture

Customized MA2114 Series Production Test Fixtures

Estimated starting prices and lead-times are for a test fixture with 50 single-sided test points with bare test probe receptacles.

Starting Price

  • New Test Fixture
    $11,299
  • Replica Test Fixture
    $8,099
  • New Exchangeable Cartridge
    $8,299

Starting Lead Time

  • New Test Fixture
    6 Weeks
  • Replica Test Fixture
    6 Weeks
  • New Exchangeable Cartridge
    6 Weeks
