Ingun ATS MA11/HF/AL/ESD

https://fixturfab.odoo.com/web/image/product.template/8622/image_1920?unique=6df5094

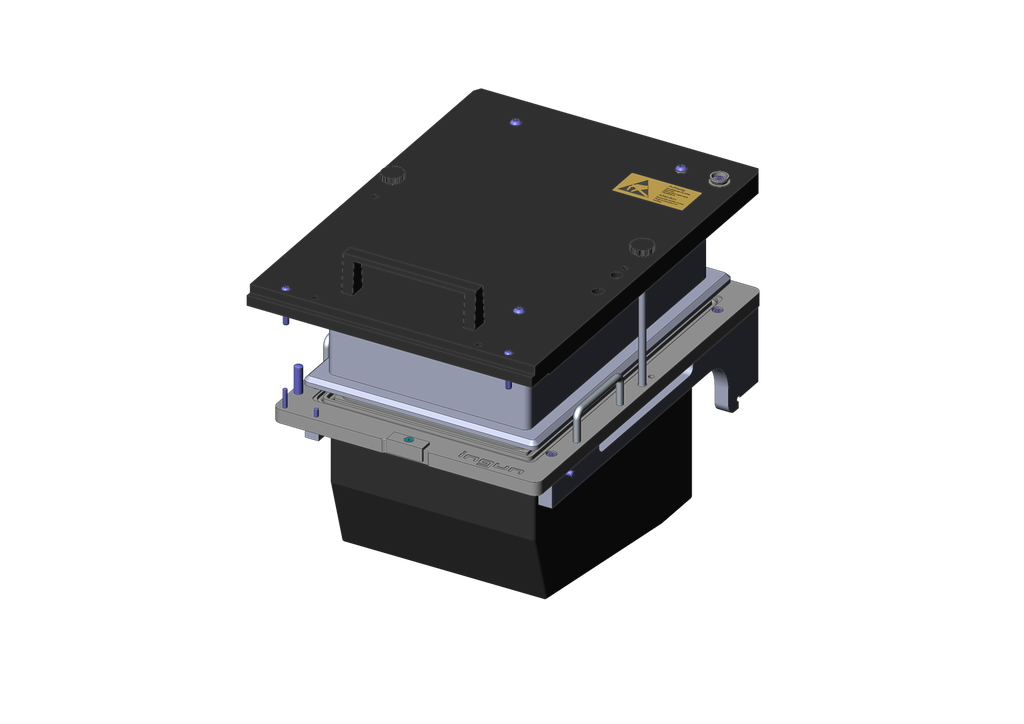

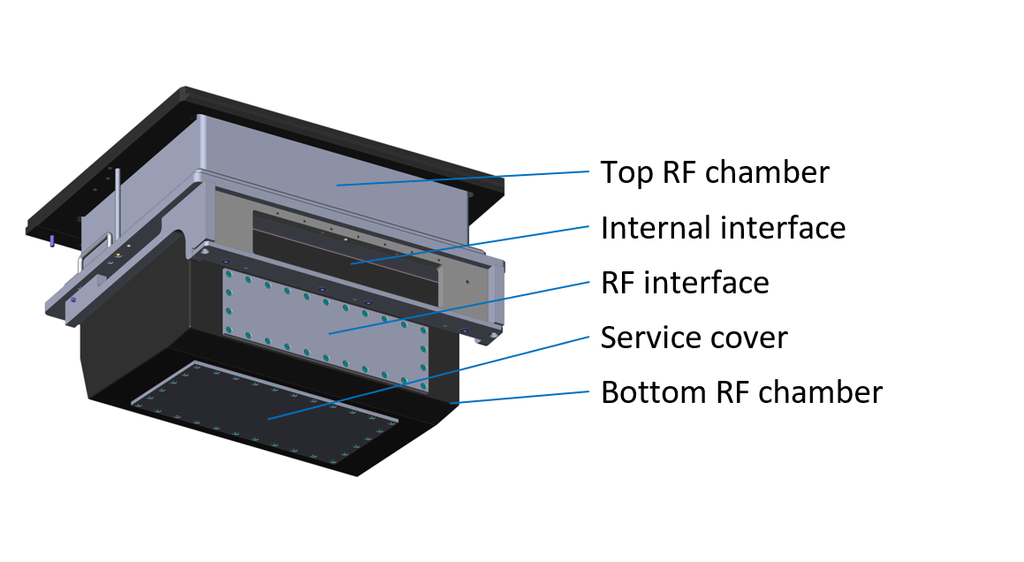

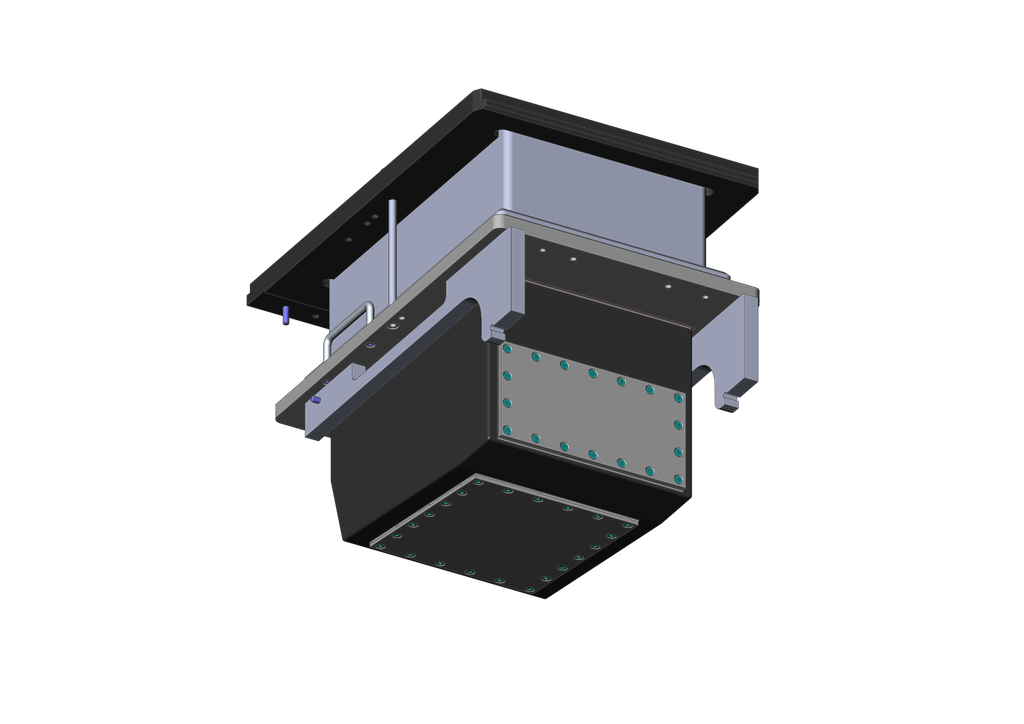

RF Shielded Ingun MA11 Cartridge for reliable, interference-free radio frequency contacting and measurement of radio frequency signals. Maximum DUT size of 110 x 160mm. Outstanding shielding attenuation >60dB in the frequency range up to 6GHz.

Top Probing: Yes
Side Probing: Yes
Pressure Pin Length: 60mm
Free Space Above DUT: 58mm
Useable Area (WxD): 110 x 160mm
Outer Dimensions: 210 x 313 x 255mm
Weight: 5.97kg

3,959.28 3959.28 USD 3,959.28

3,959.28

Not Available For Sale

This combination does not exist.

Shipping: 2-3 Business Days
