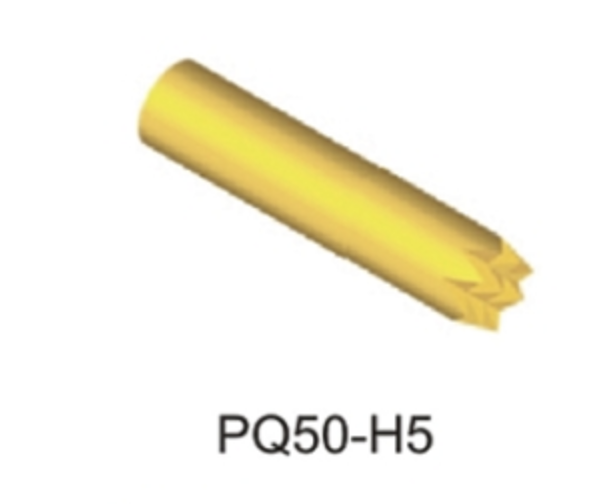

Centalic PQ50-H5-5.5GG Test Probe, Waffle Tip
The PQ50 series of probes is used in all of our DEV260 Pro fixtures.
Compatible Receptacles: Centalic PQ50 Series
Tip Type: Serrated
Minimum Center-to-Center Pitch: 1.27mm (50mil)
Current Rating: 3A continuous, <60mOhm Resistance
Full Stroke: 6.35mm
Rated Stroke: 4.30mm
Spring Force: 150gf (5.5oz)
Material: 3CuBe with Gold Plating
