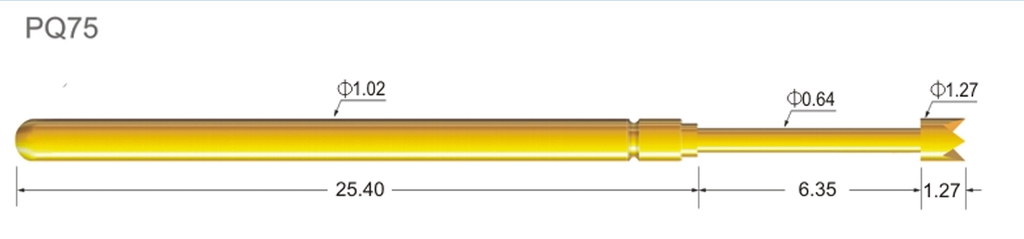

Centalic PQ75-A-4GG Test Probe, Cupped Tip
The PQ75 series of probes is used in all of our DEV260 Pro fixtures.
Compatible Receptacles: Centalic PQ75 Series
Tip Type: Cup
Minimum Center-to-Center Pitch: 1.9mm (75mil)
Current Rating: 3A continuous, <40mOhm Resistance
Full Stroke: 6.35mm
Rated Stroke: 4.30mm
Spring Force: 112gf (4oz)
Material: 3CuBe with Gold Plating
